1000-WT Series Loads Technical Information

Specifications:

• Power Rating:
  • 1000 WATTS CW @ 25° C Ambient
  • Derated linearly to 50 W @ 125° C
• Peak Power: 3.0 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average power rating
• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.15:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +125° C
• Operating Position: Standoffs down
• Finish: Black anodized
• Nominal Size: 18.50" x 10.60" x 4.80" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 26.5 LB

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

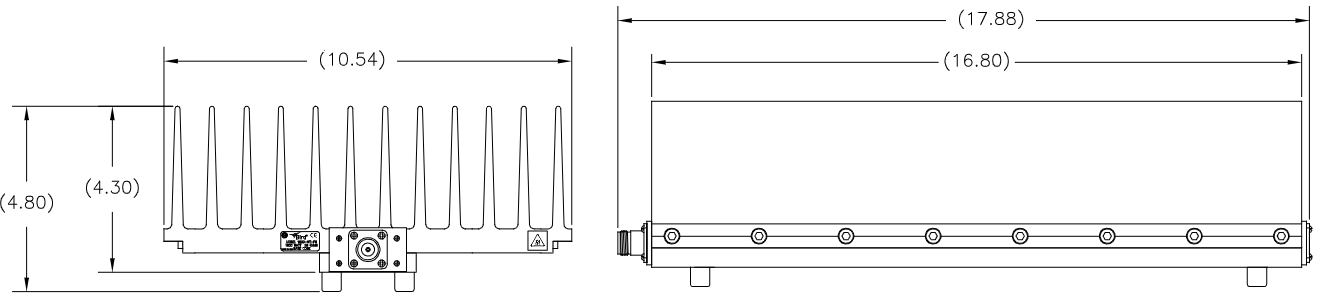

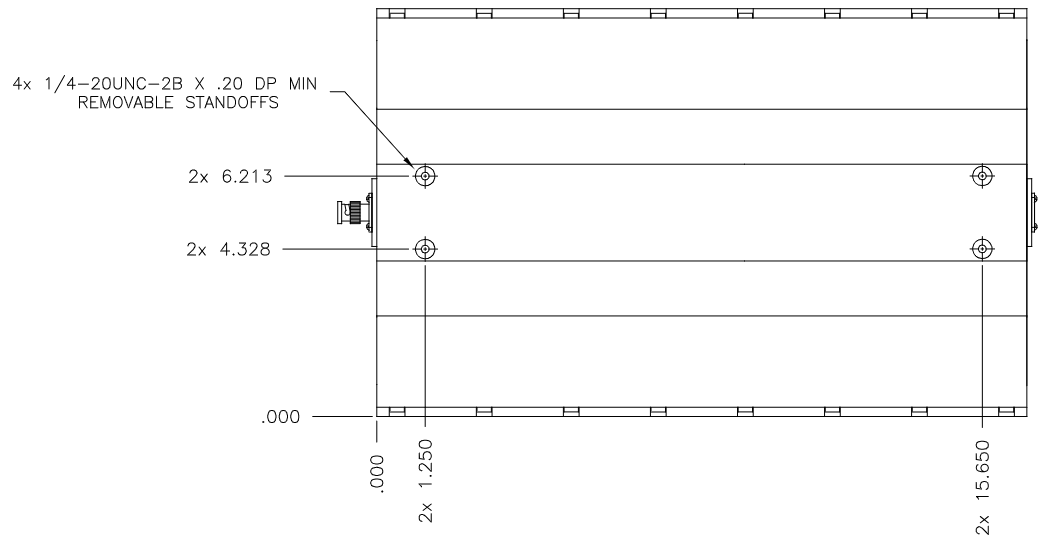

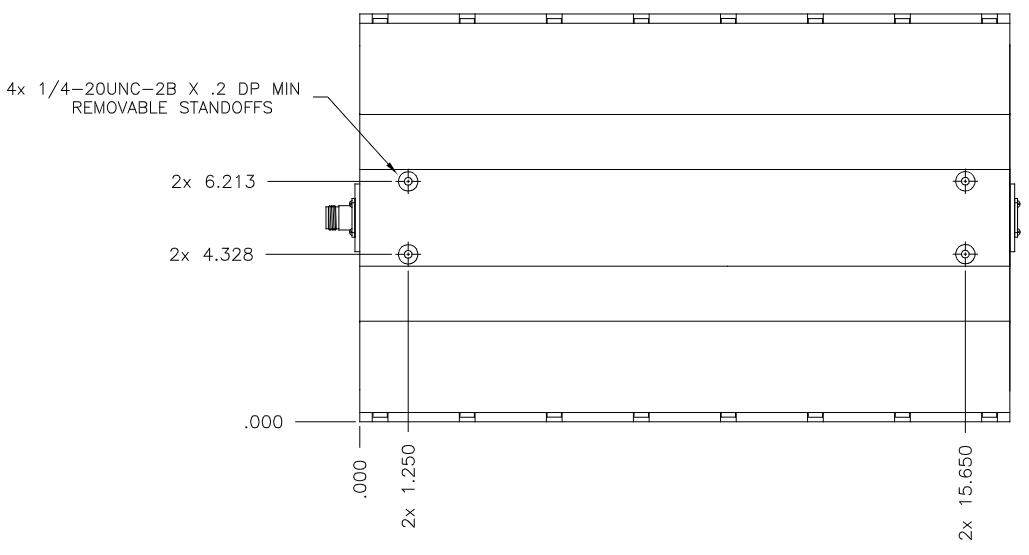

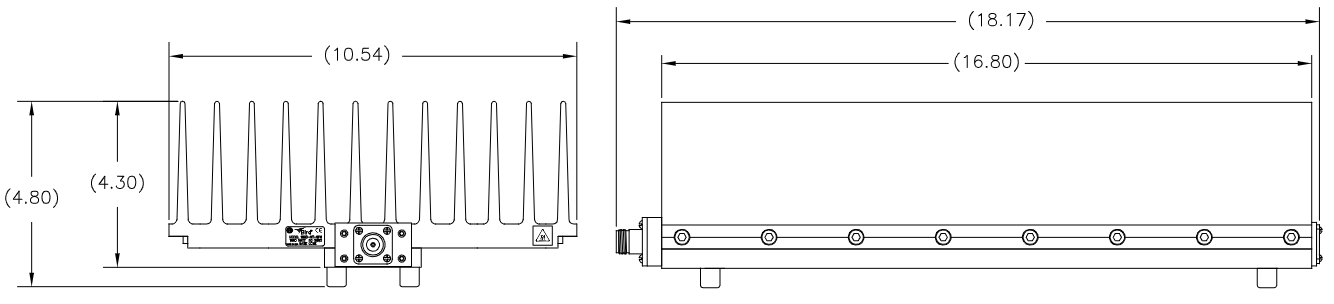

For the 1000-WT-FN:

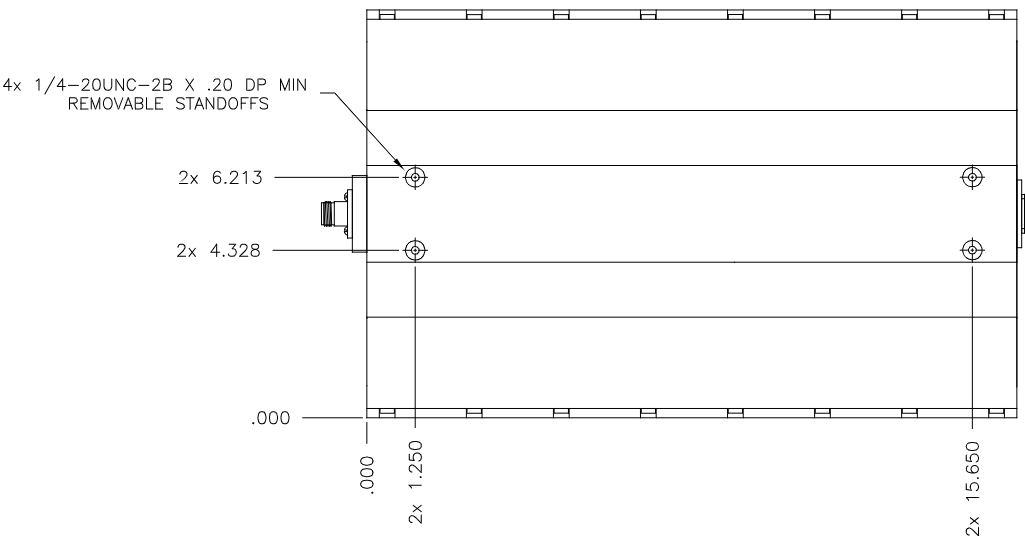

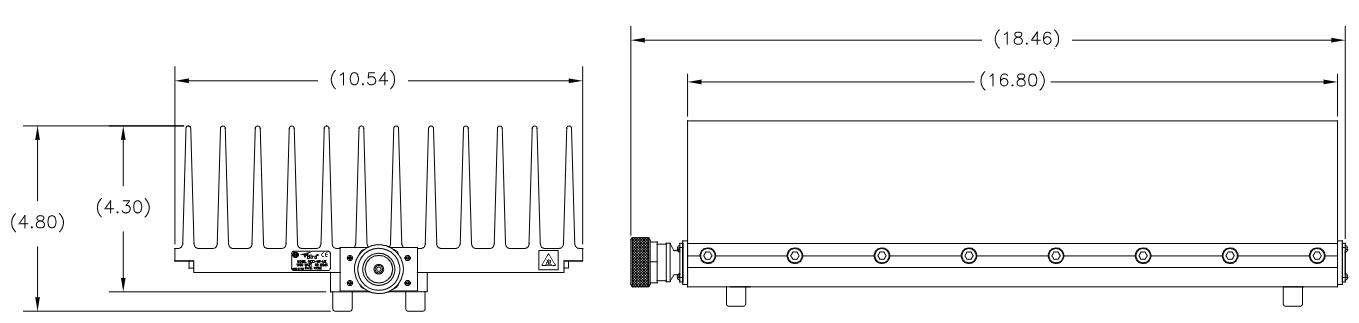

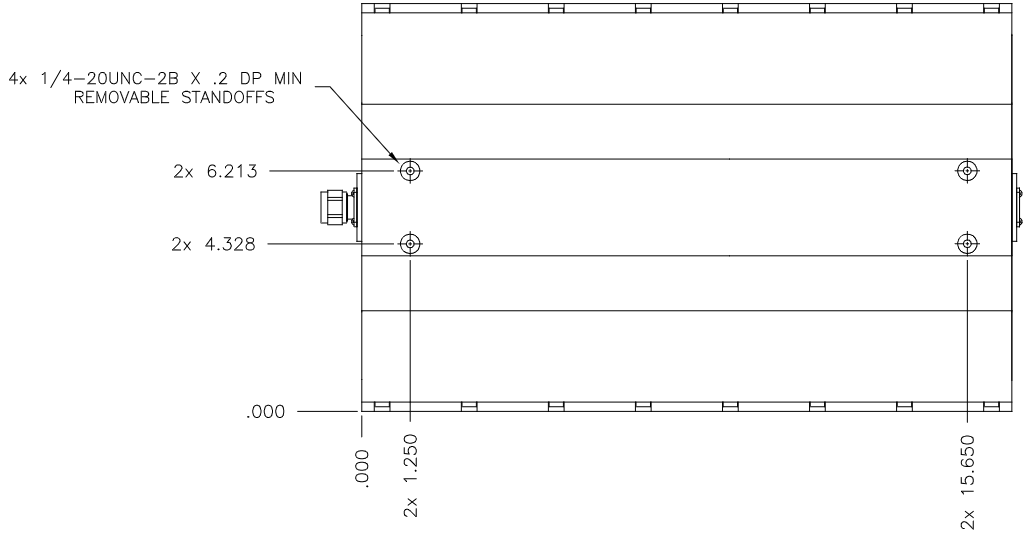

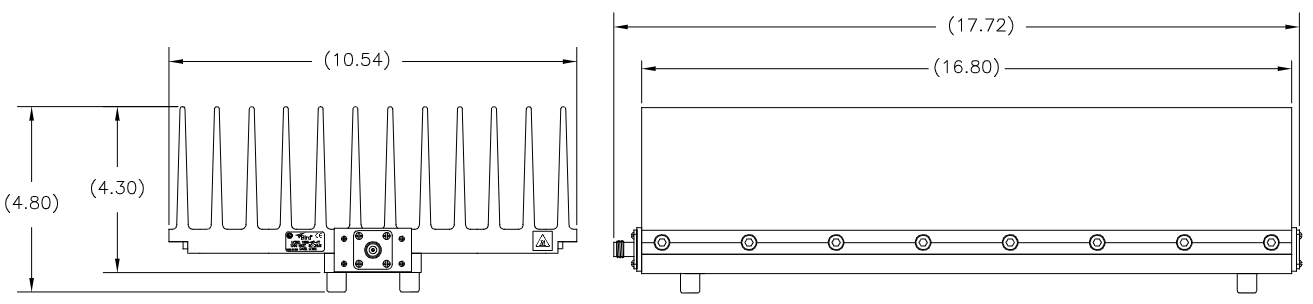

For the 1000-WT-FT:

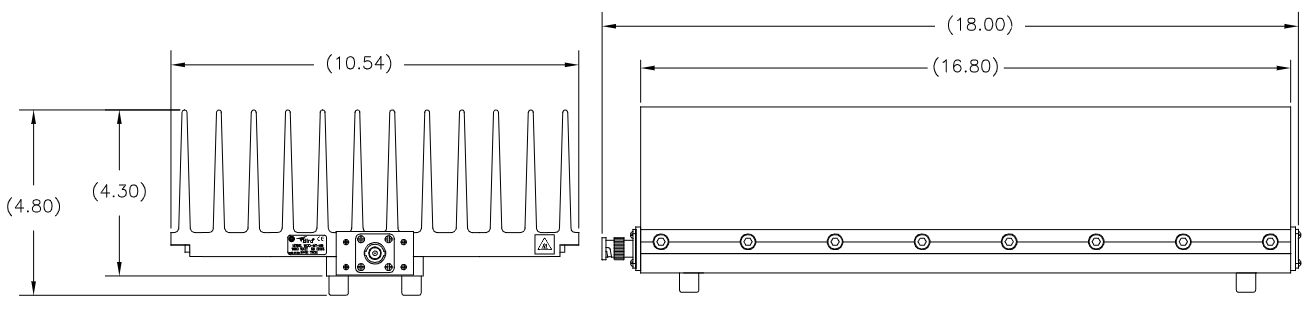

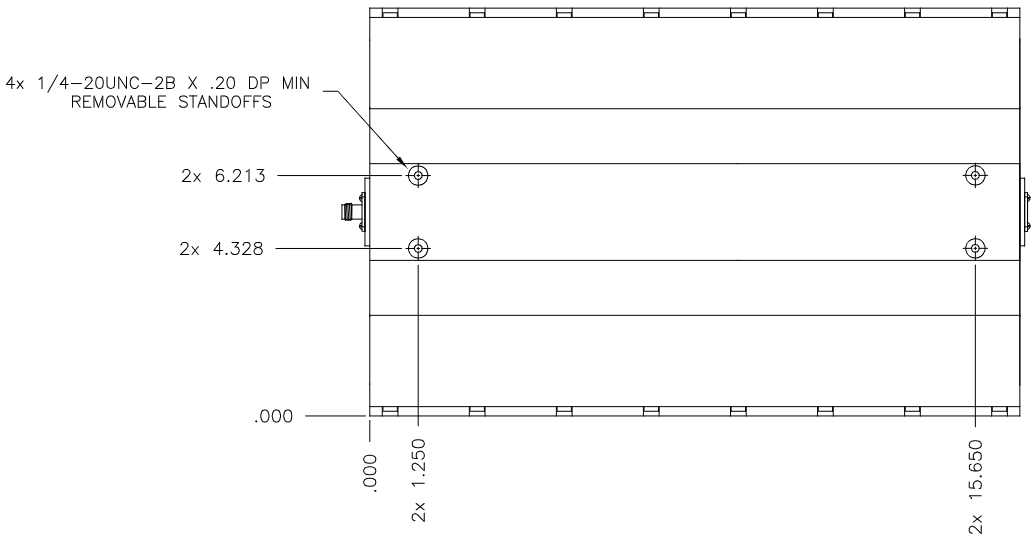

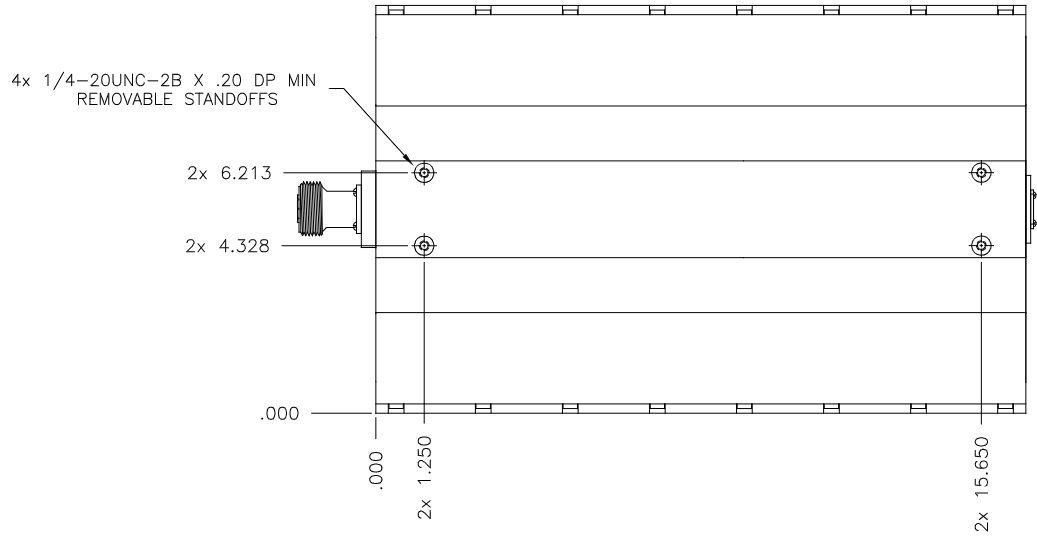

For the 1000-WT-MB:

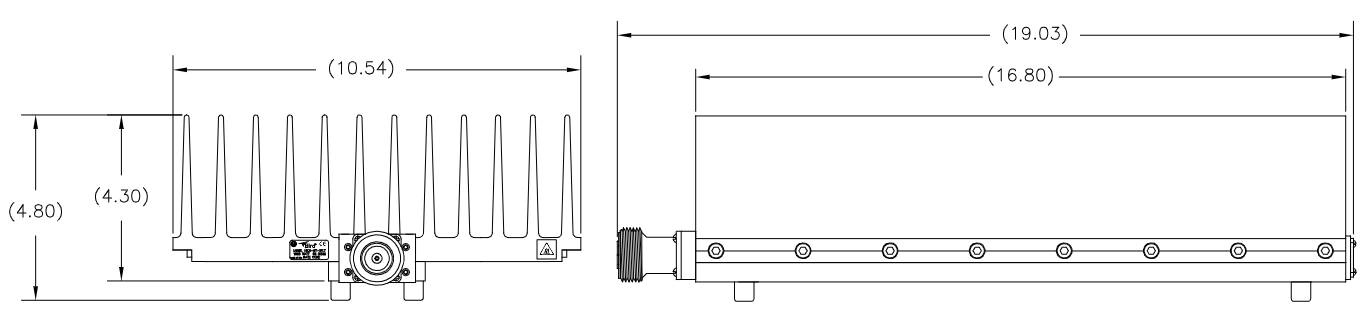

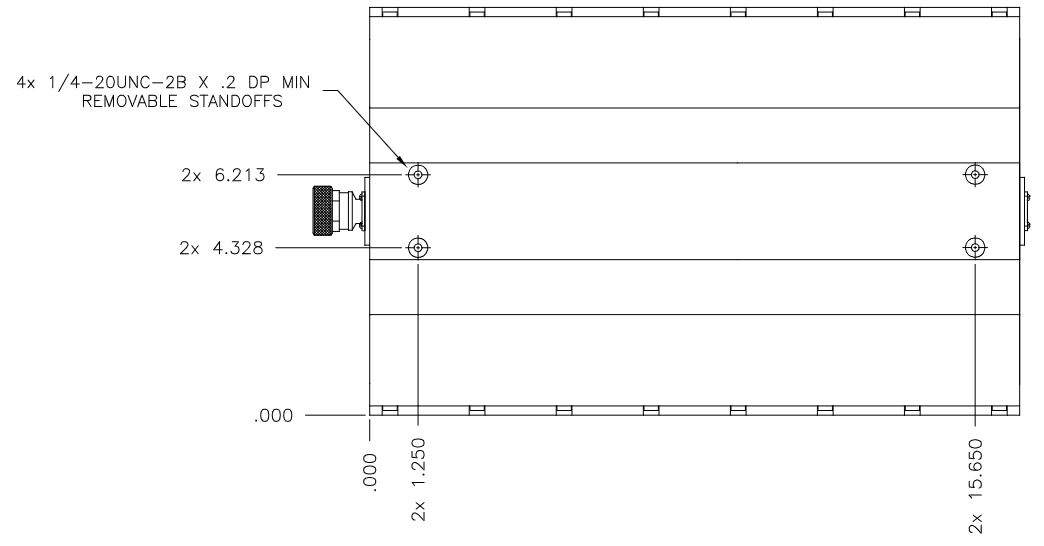

For the 1000-WT-ME:

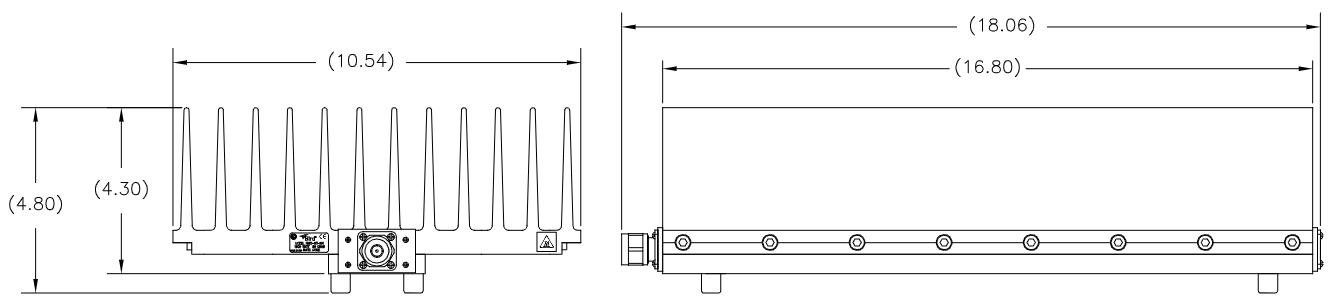

For the 1000-WT-MN:

For the 1000-WT-QFLT:

For the 1000-WT-QFN:
