2-18T Series Loads Technical Information

Specifications:

• Average Power Rating:
  • 2 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Peak Power: 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Impedance: 50 Ohms (Nominal)
• Operating Temperature Range: -65° C to +125° C
• Finish: Stainless Steel

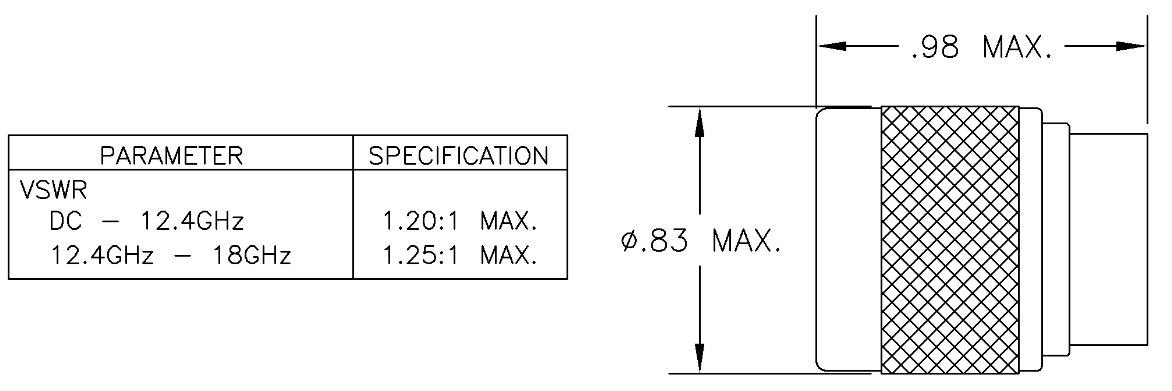

• Nominal Size: 0.98" x 0.83" (for specifics, see images below)
• Weight: Approx. 2.0 oz

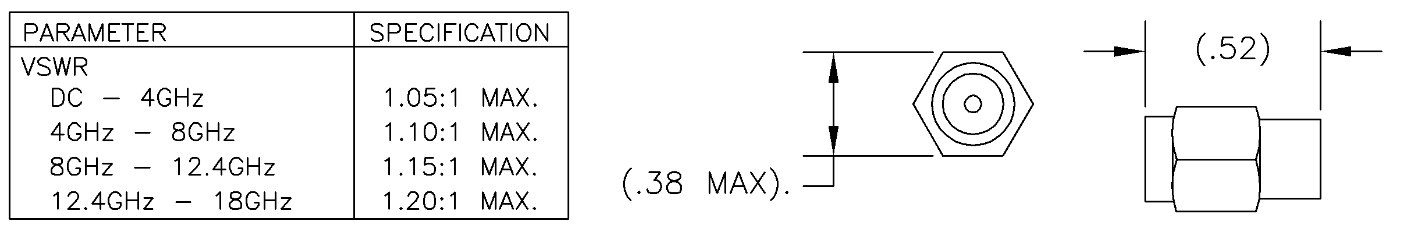

For the 2-18T-MA:

• Peak Power: 1 kW

For the 2-18T-MN:

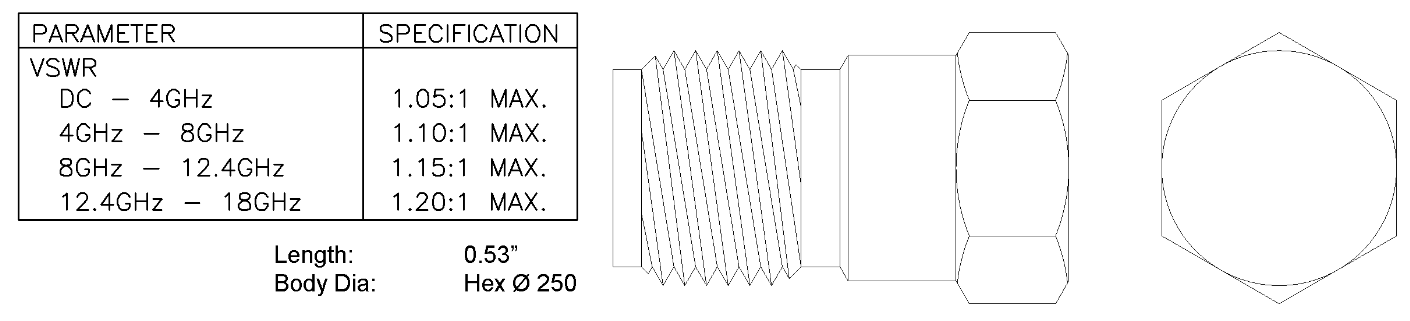

For the 2-18T-FA:
