5-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 5 W MAX. @ 40° C
  • 6 W MAX. @ 25° C
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: ANY (convection cooled)
• Finish: Tri-Alloy

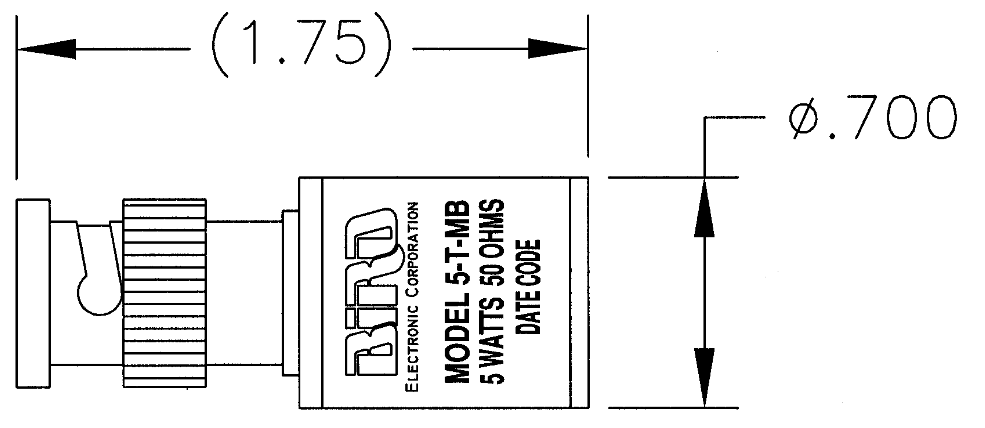

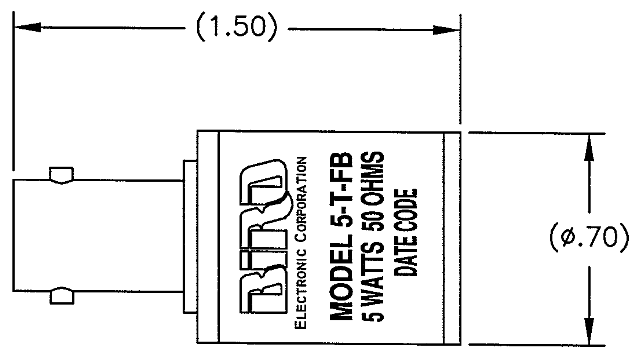

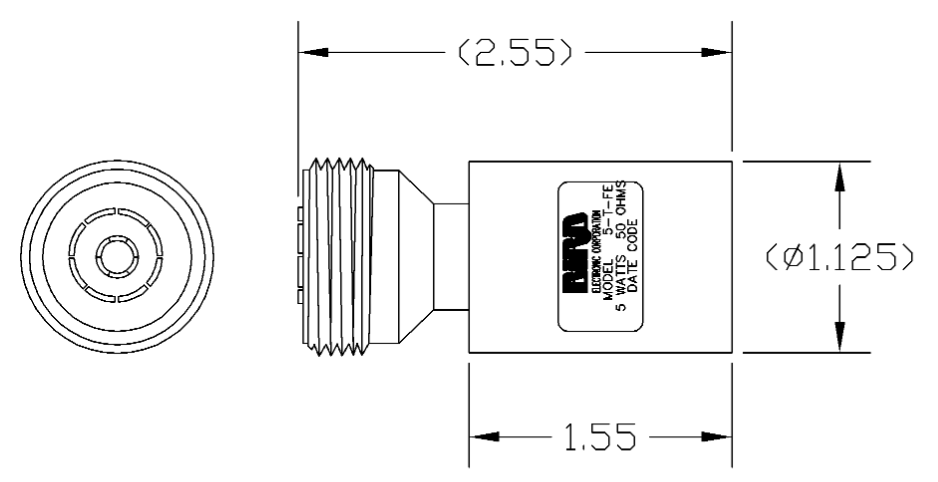

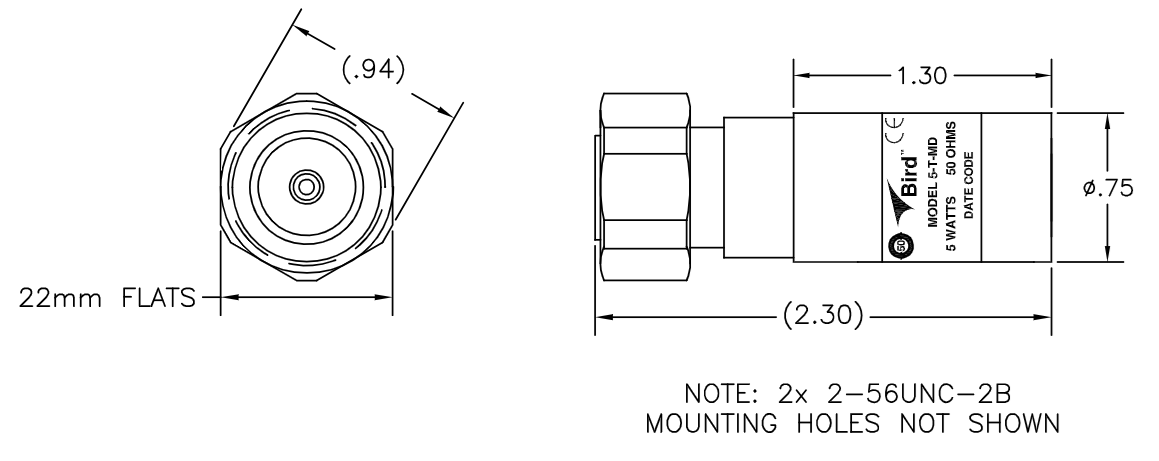

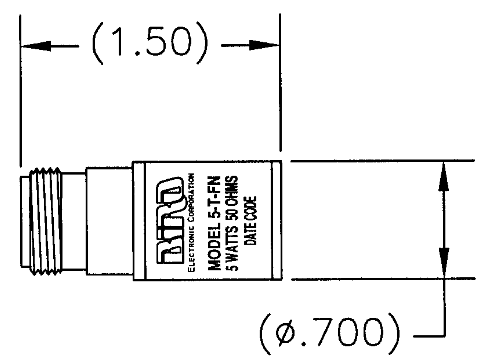

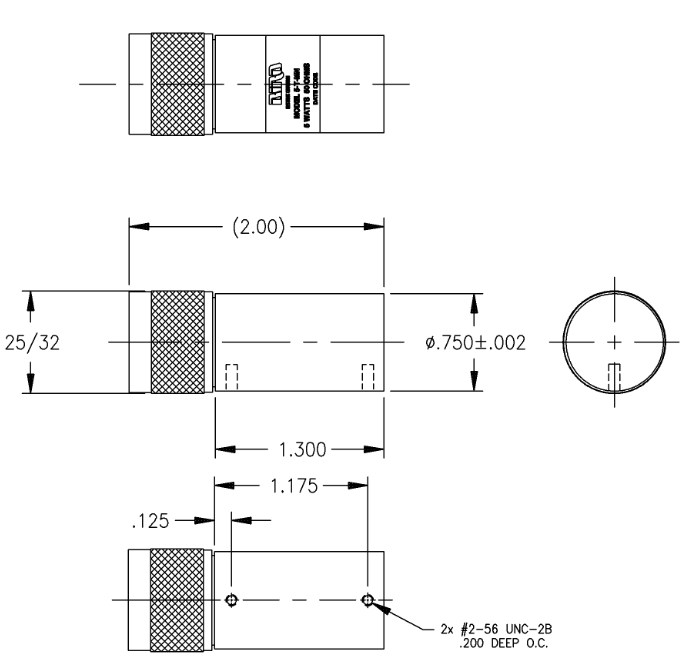

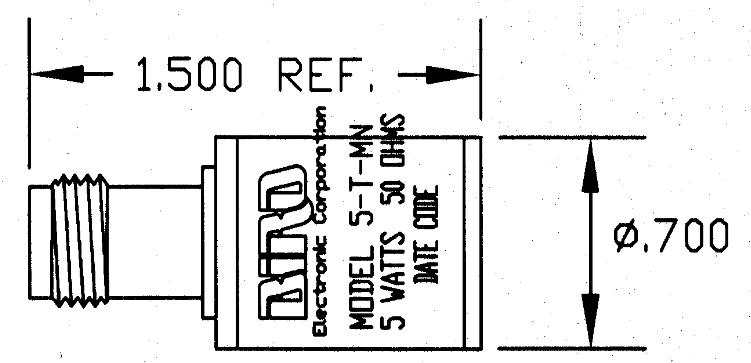

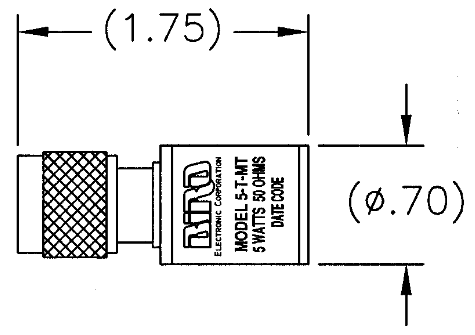

• Nominal Size: 1.50" x 0.70" (for specifics, see images below)
• Weight: Approx. 1.5 oz

For the 5-T-FB:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 5-T-FE:

• Power Rating: 5 WATTS CW
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 5-T-FN:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 6 GHz @ 1.25:1 MAX.

For the 5-T-FT:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 5-T-MA:

• Average Power Rating:
  • 5 W @ 25° C Ambient
  • Derated linearly to 1 W @ 125° C
• Peak Power: 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Frequency Range & VSWR:
  • DC to 4 GHz @ 1.15:1 MAX.
  • 4 GHz to 12.4 GHz @ 1.20:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.25:1 MAX.

For the 5-T-MB:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 5-T-MD:

• Power Rating: 5 WATTS CW @ 40° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C

For the 5-T-ME:

• Power Rating: 5 WATTS CW
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.20:1 MAX.
  • 4 GHz to 6 GHz @ 1.25:1 MAX.

For the 5-T-MN:

• Frequency Range & VSWR
  • DC to 2.4 GHz @ 1.10:1 MAX.
  • 2.4 GHz to 6 GHz @ 1.15:1 MAX.
  • 6 GHz to 10 GHz @ 1.25:1 MAX.

For the 5-T-MT:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
