5-18T Series Loads Technical Information

Specifications:

• Average Power Rating:
  • 5 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Peak Power: 250 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Frequency Range & VSWR:
  • DC to 4 GHz @ 1.15:1 MAX.
  • 4 GHz to 12.4 GHz @ 1.25:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.35:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Temperature Range: -65° C to +125° C
• Finish: Stainless Steel
• Nominal Size: 1.35" x 0.86" (for specifics, see images below)
• Weight: Approx. 2.0 oz

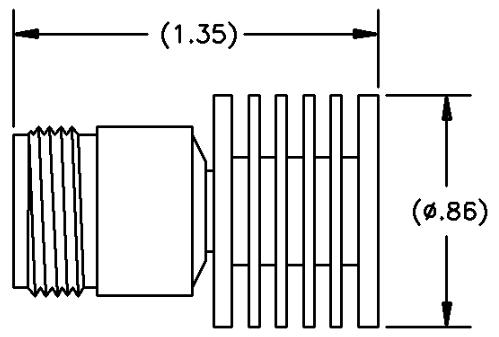

For the 5-18T-FN:

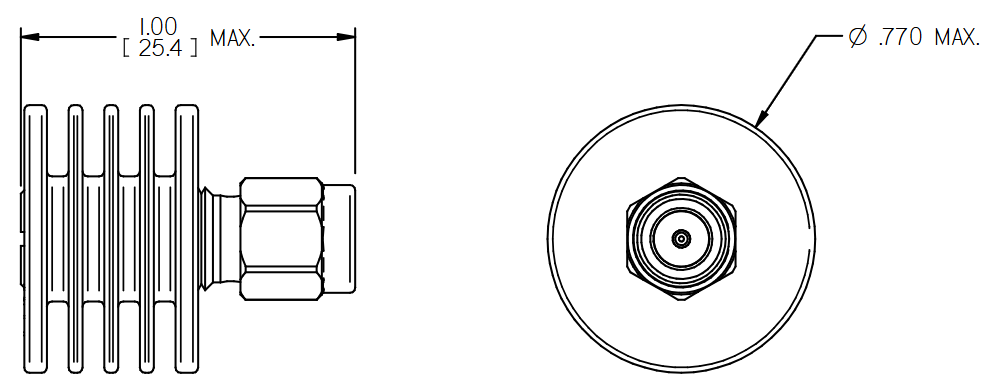

For the 5-18T-MA:

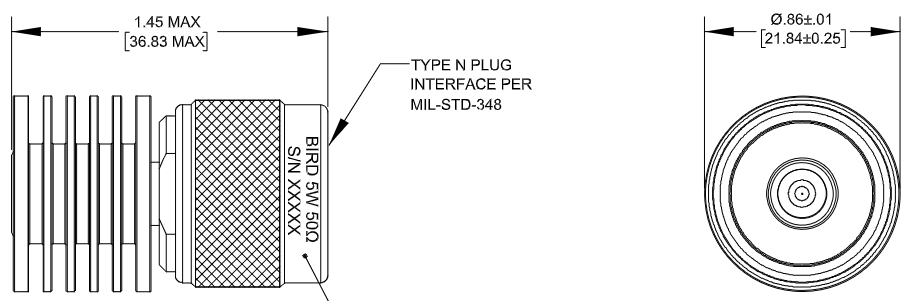

For the 5-18T-MN:
