10-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 10 W @ 40° C
  • 12 W @ 25° C
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: ANY (convection cooled)
• Finish: Black Anodized Aluminum

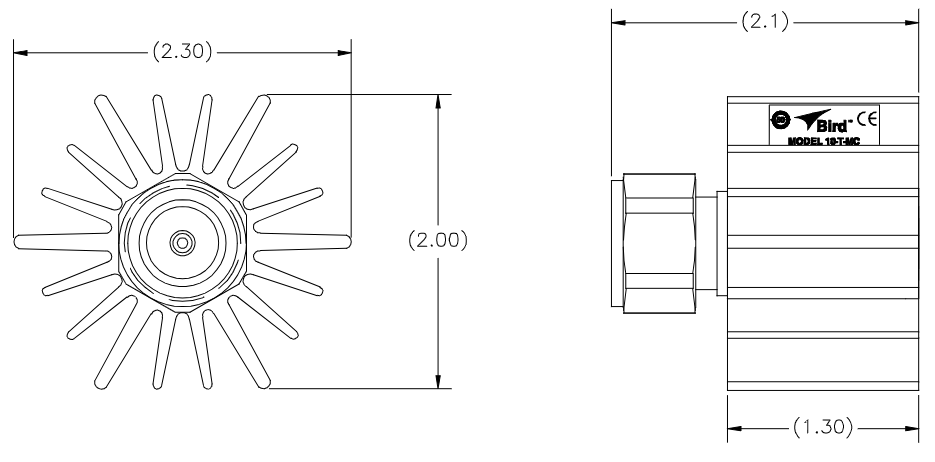

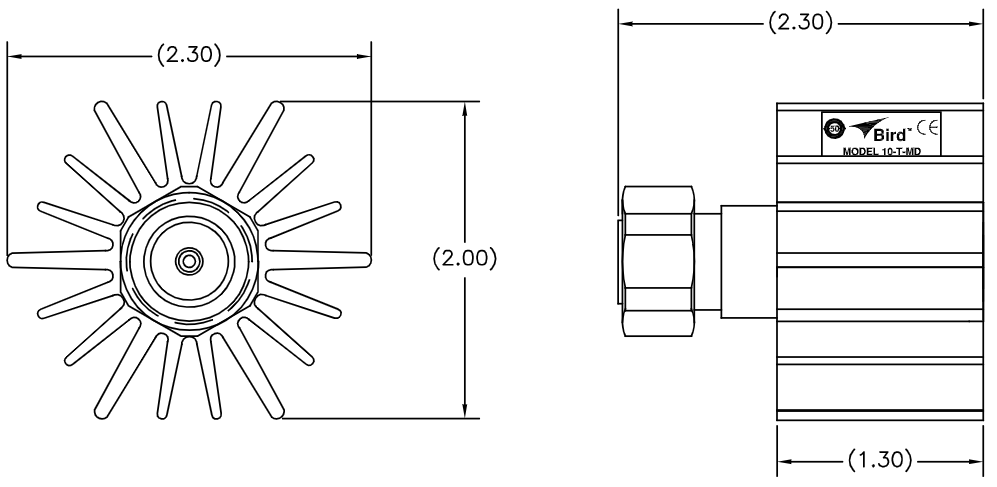

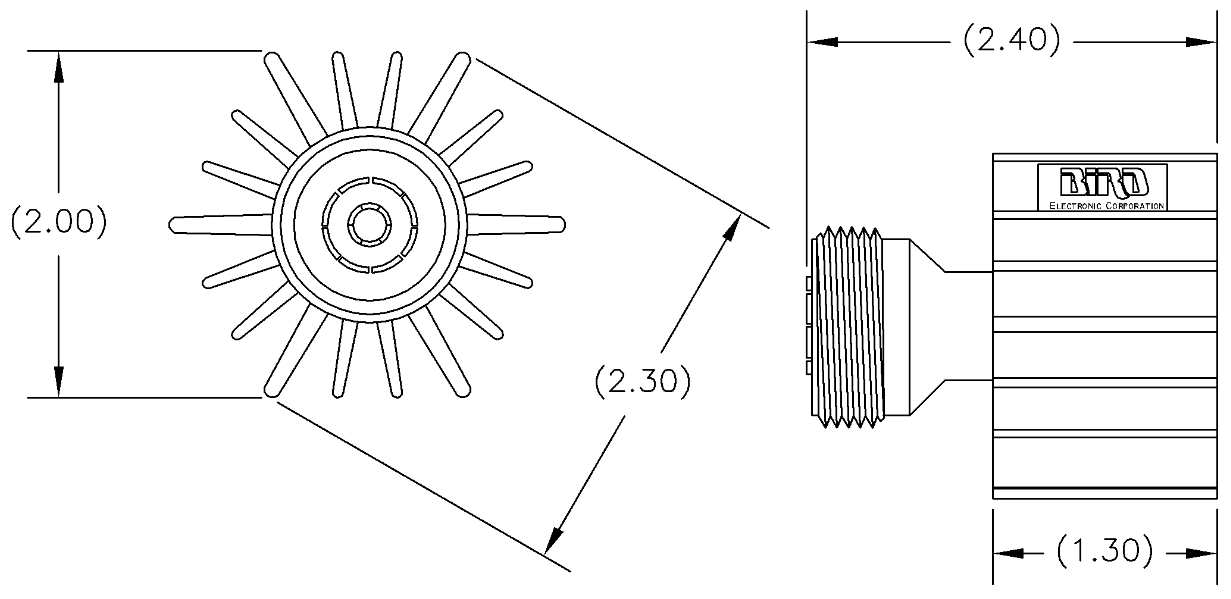

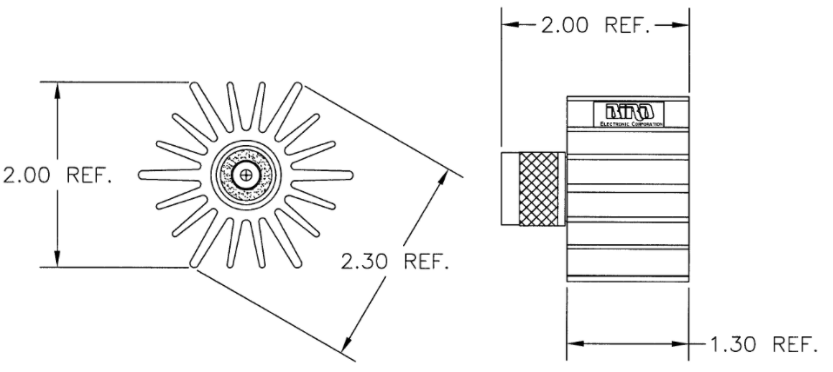

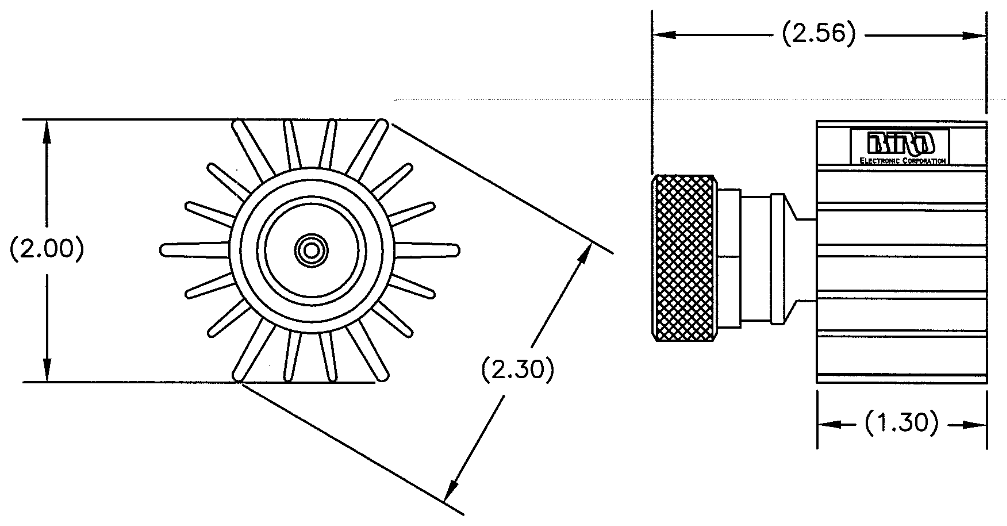

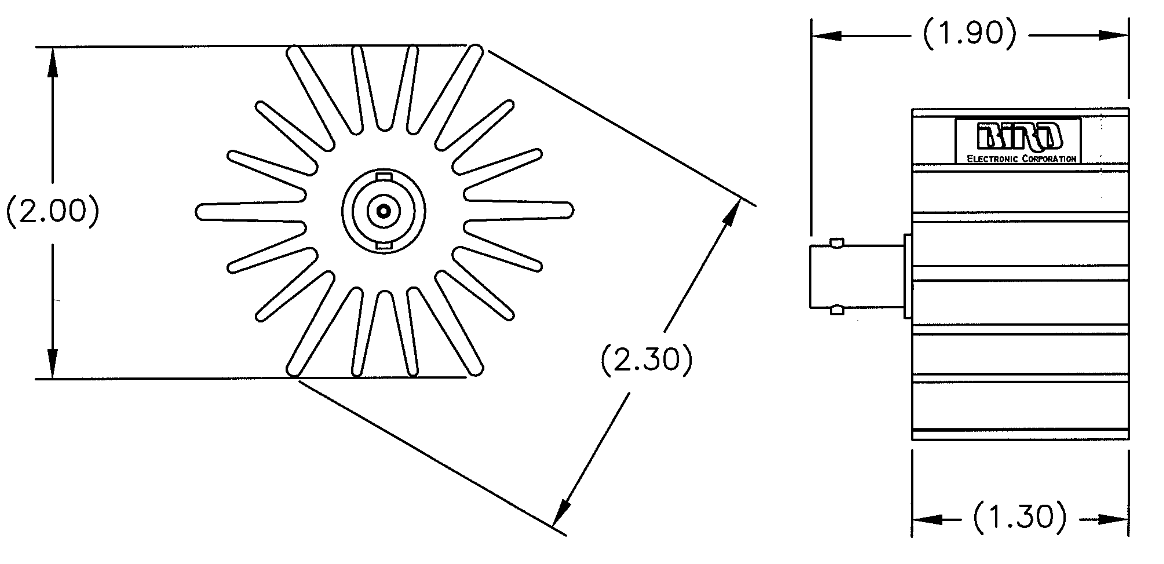

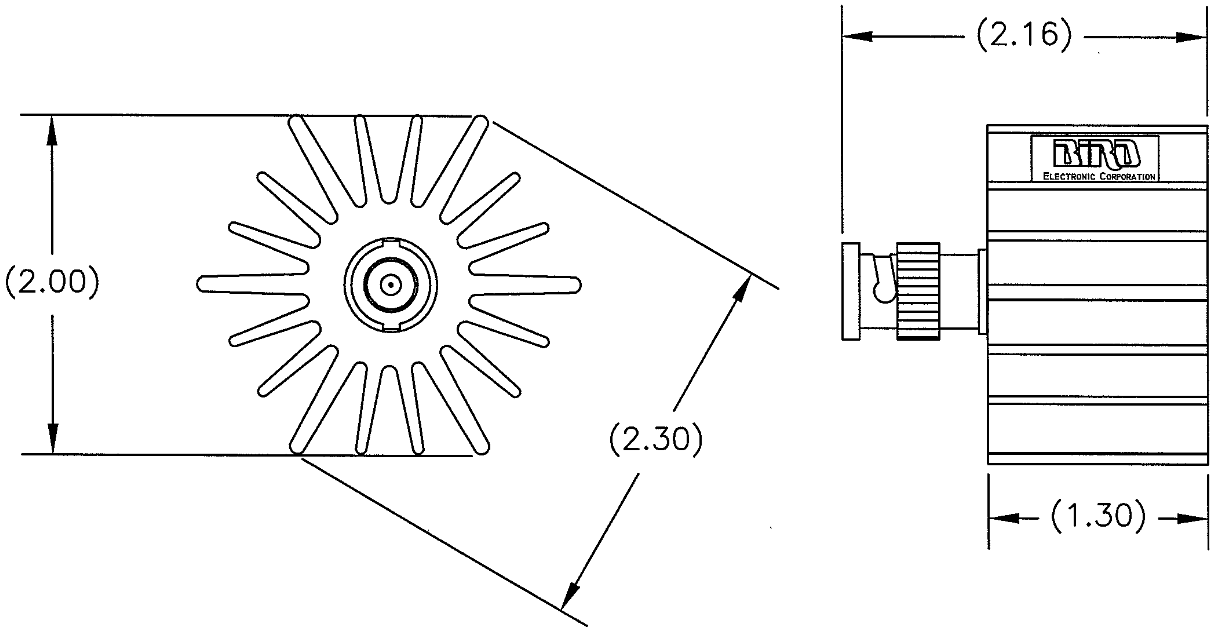

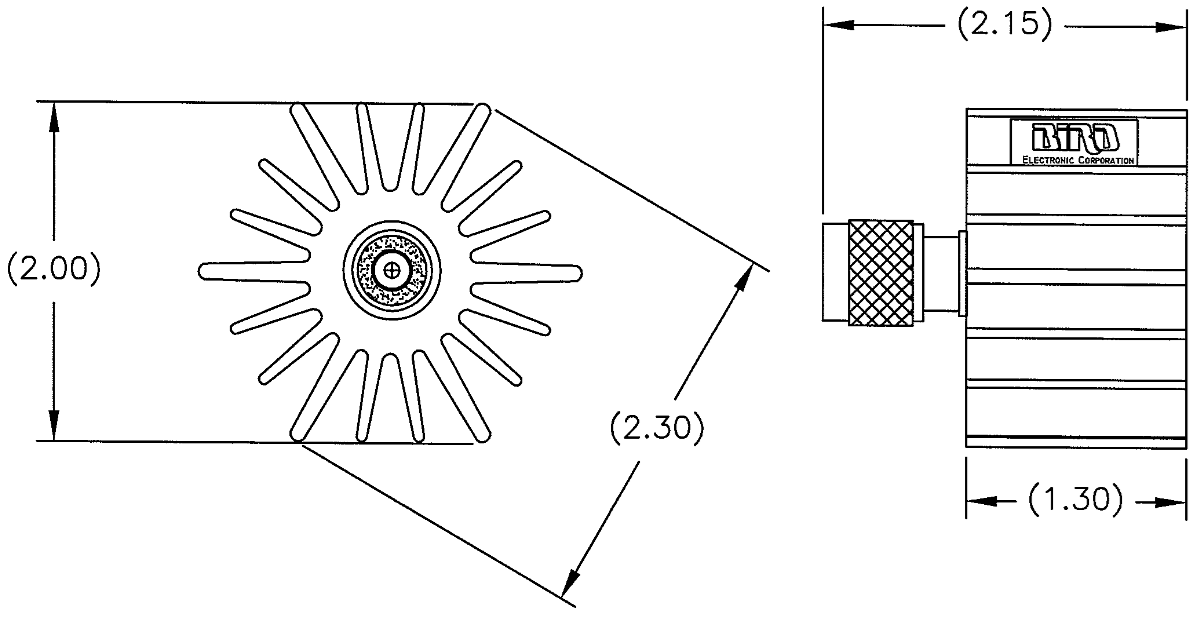

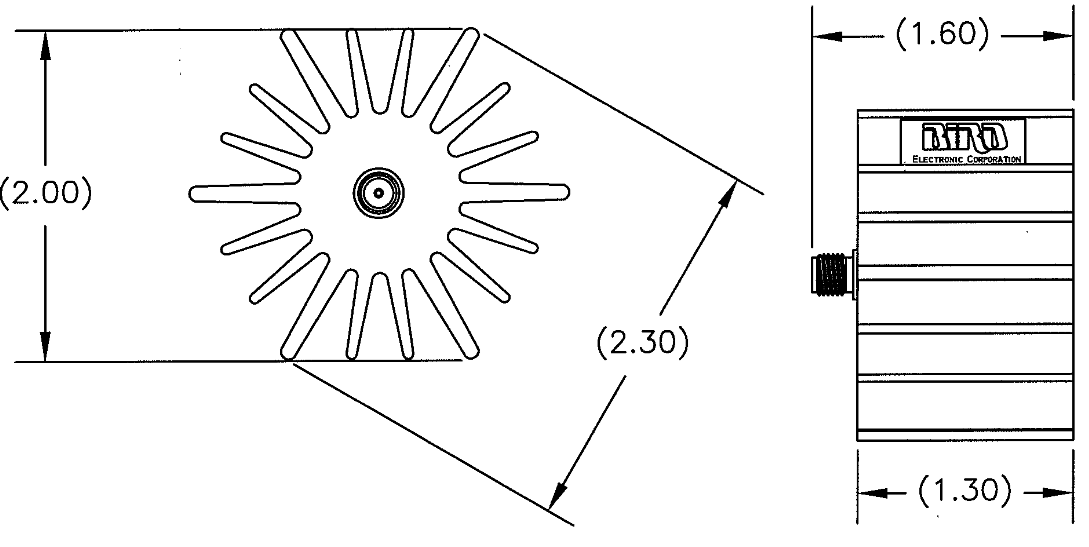

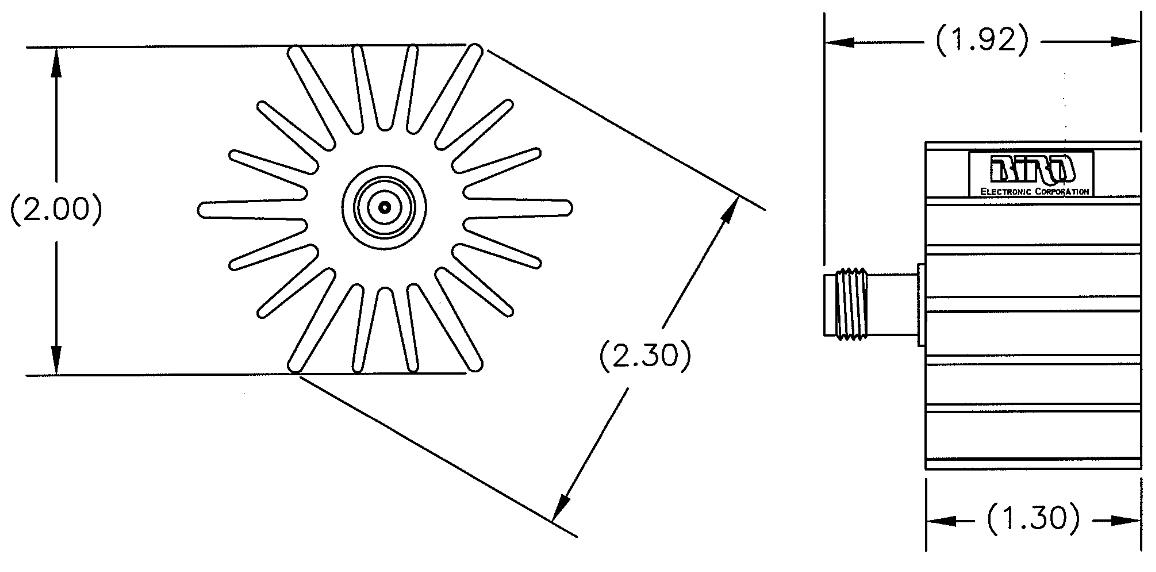

• Nominal Size: 2.20" x 2.30" (for specifics, see images below)
• Weight: Approx. 3.0 oz

For the 10-T-FA:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-FB:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-FC:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-FE:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-FN:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-FT:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-MB:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-MC:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-MD:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Operating Temperature Range: -45° C to +120° C

For the 10-T-ME:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.

For the 10-T-MN:

• Frequency Range & VSWR
  • DC to 2.4 GHz @ 1.10:1 MAX.
  • 2.4 GHz to 6 GHz @ 1.15:1 MAX.
  • 6 GHz to 10 GHz @ 1.25:1 MAX.

For the 10-T-MT:

• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
