25-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 25 W MAX. @ 40° C
  • 30 W MAX. @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: ANY (convection cooled)
• Finish: Black Anodized
• Nominal Size: 4.30" x 2.30" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 7.0 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

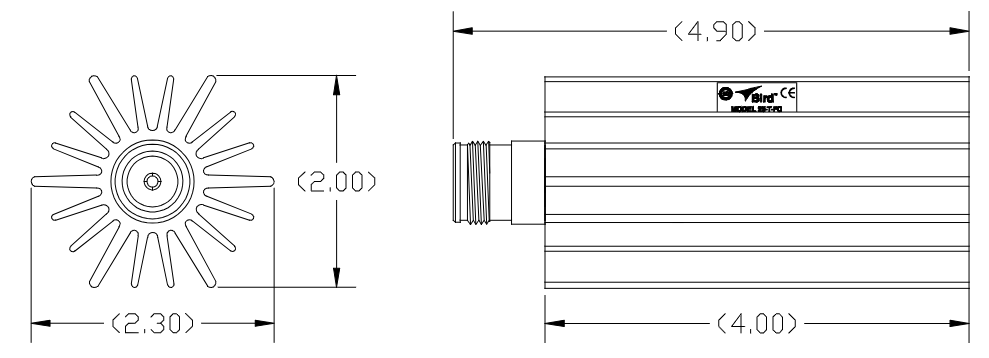

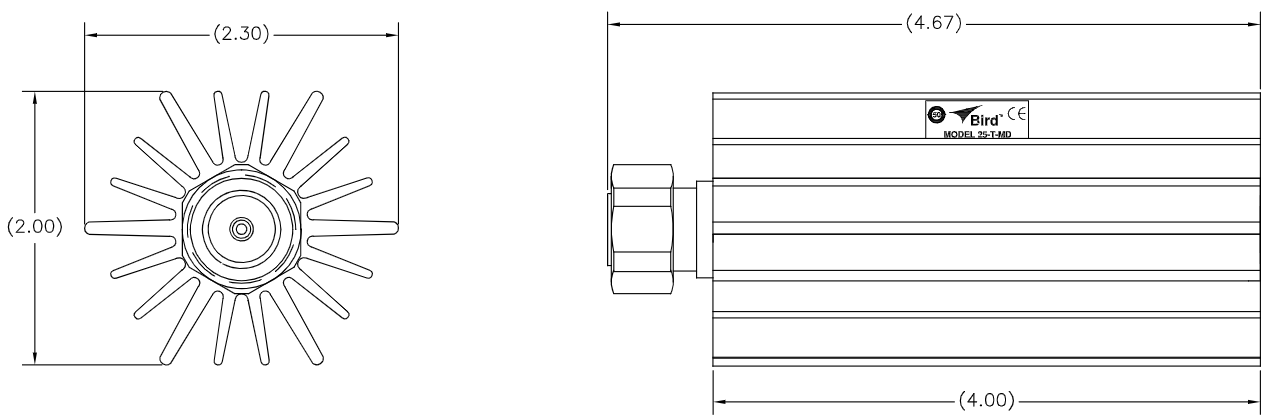

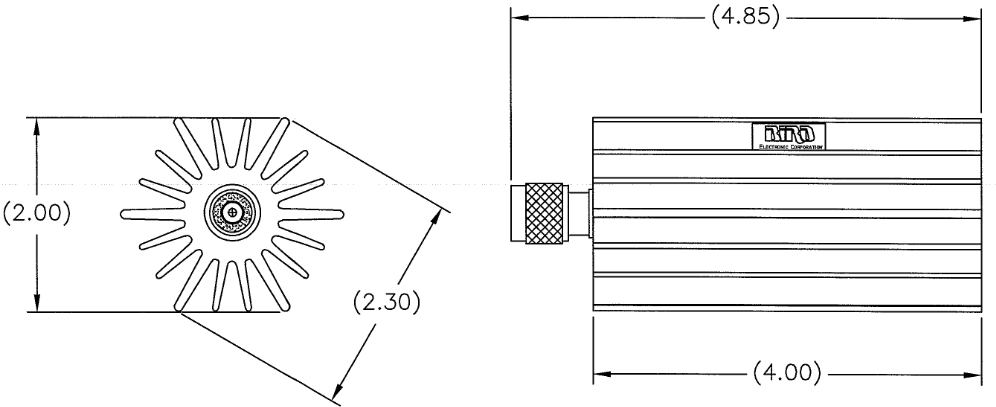

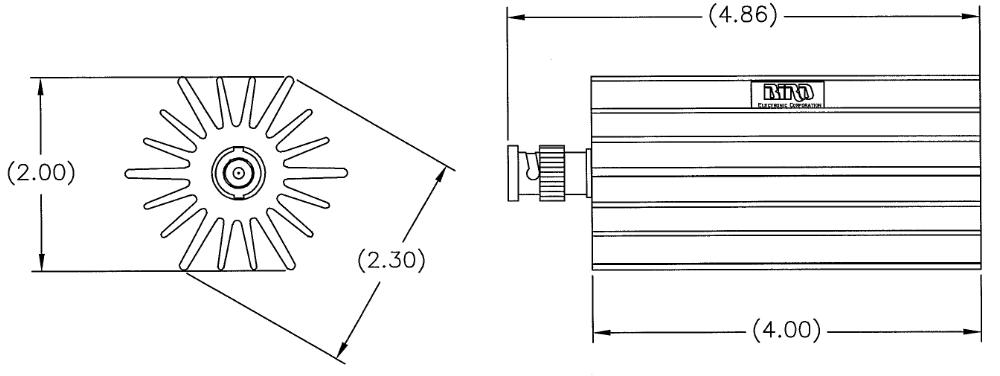

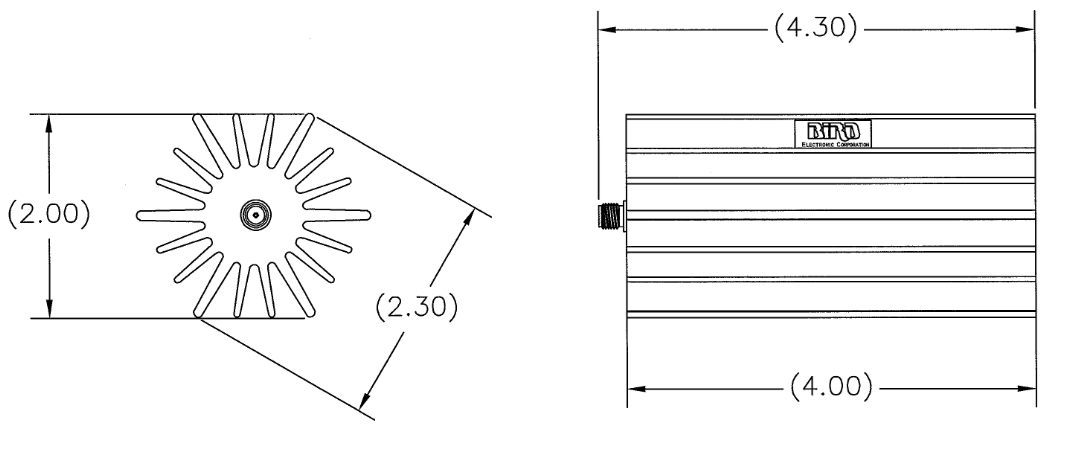

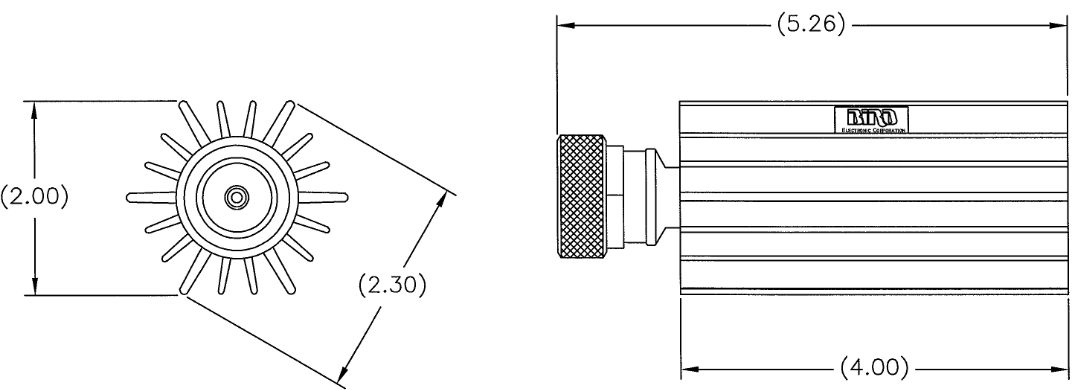

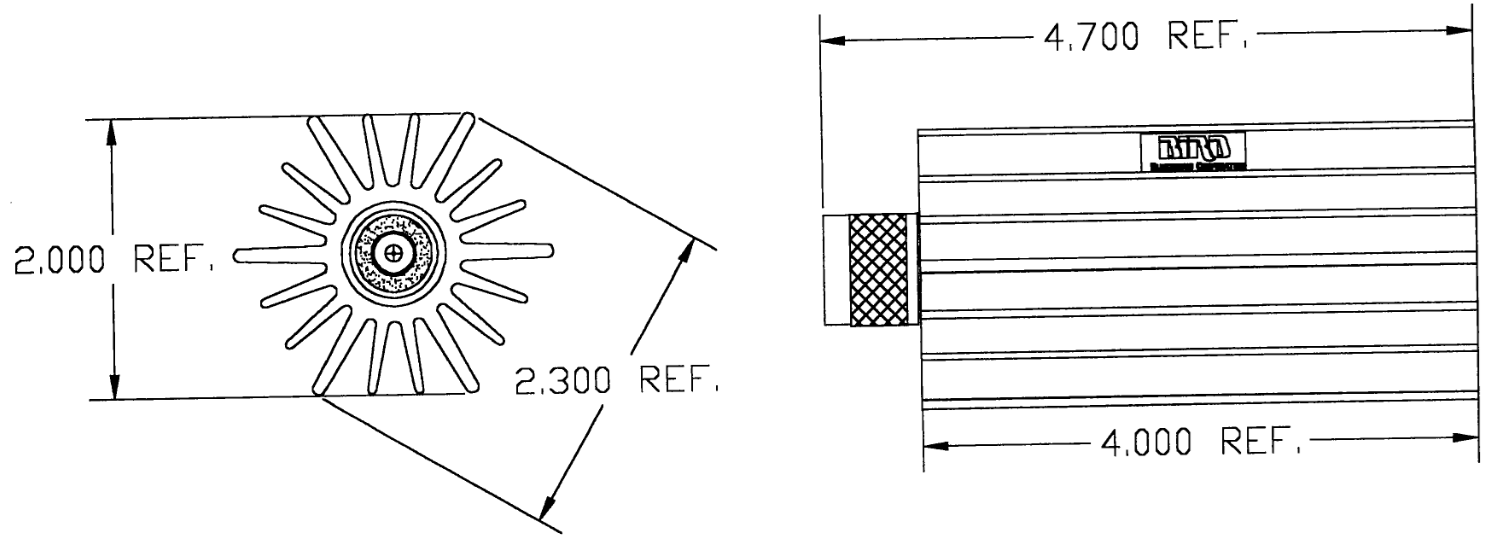

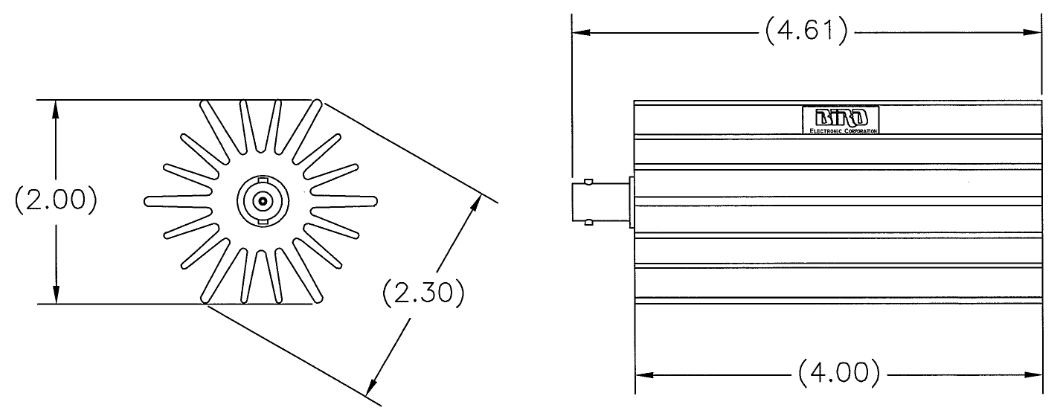

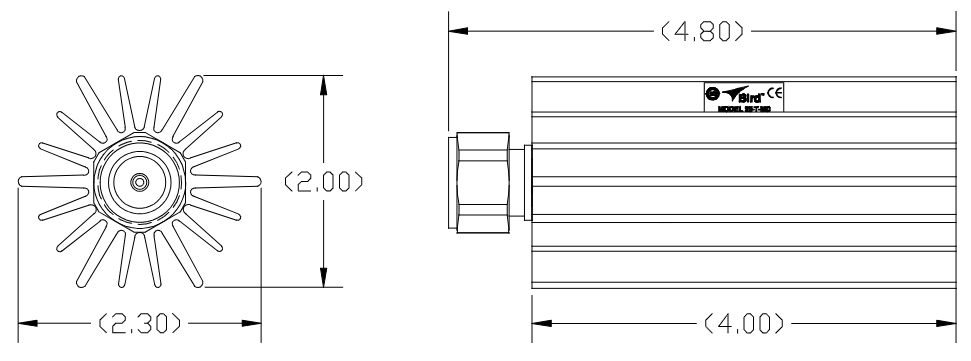

For the 25-T-FA:

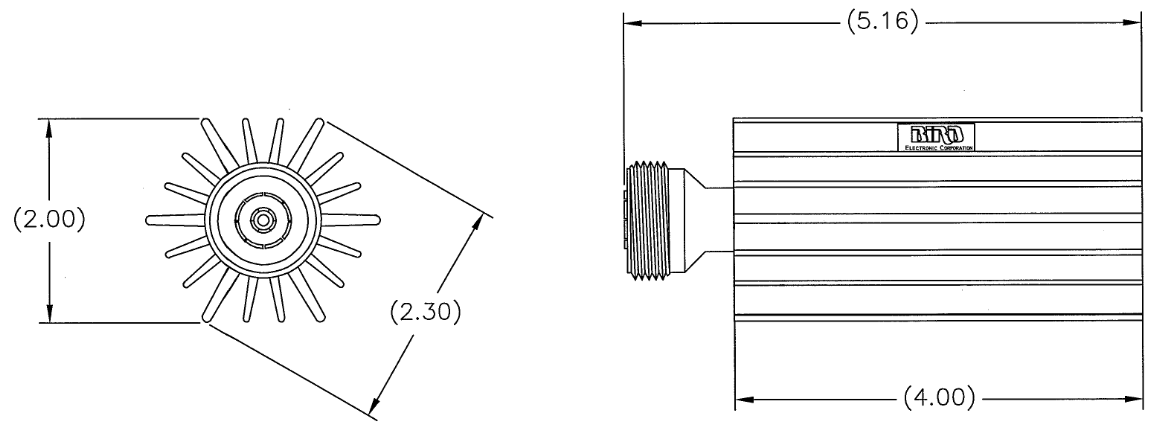

For the 25-T-FB:

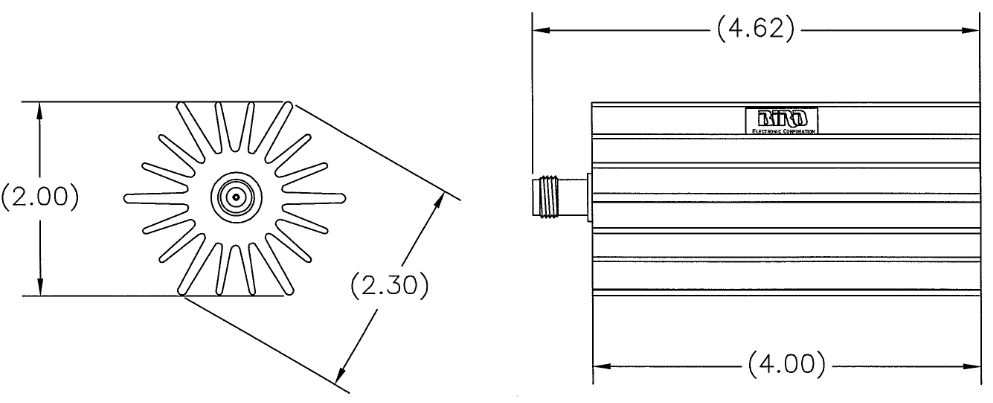

For the 25-T-FC:

For the 25-T-FE:

For the 25-T-FN:

For the 25-T-FT:

For the 25-T-MB:

For the 25-T-MC:

For the 25-T-MD:

• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C

For the 25-T-ME:

For the 25-T-MN:

For the 25-T-MT:
