25-6T Series Loads Technical Information

Specifications:

• Power Rating:
  • 25 W @ 25° C
  • Derated Linearly to 10 W @ 125° C
• Peak Power: 500 W MAX. (5uSec Pulse, 0.05% Duty Cycle)
• Frequency Range & VSWR
  • DC to 6 GHz @ 1.20:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: ANY (convection cooled)
• Finish: Black Anodized Aluminum
• Nominal Size: 2.30" x 3.51" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 13.25 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

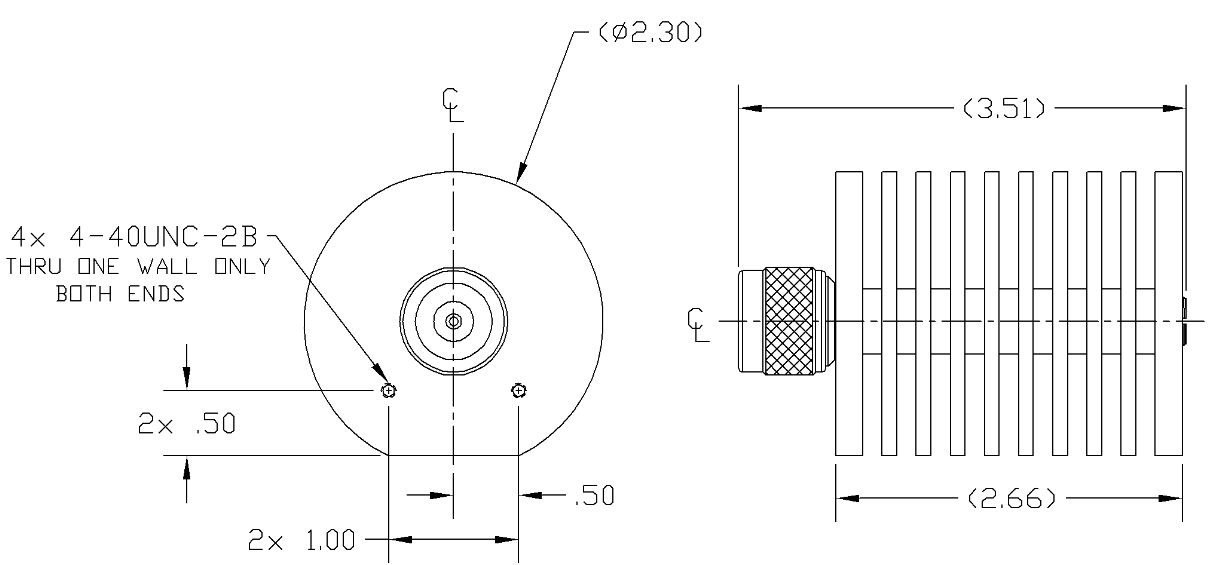

For the 25-6T-MN:
