25-18T Series Loads Technical Information

Specifications:

• Power Rating:
  • 25 W @ 25° C
  • Derated linearly to 5 W @ 125° C
• Peak Power Rating: 500 W MAX. (5uSec Pulse, 0.05% Duty Cycle)
• Frequency Range & VSWR
  • DC to 6 GHz @ 1.20:1 MAX.
  • 6 GHz to 12.4 GHz at 1.30:1 MAX.
  • 12.4 GHz to 18 GHz at 1.40:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: ANY (convection cooled)
• Finish: Black Anodized Aluminum
• Nominal Size: 2.30" x 3.41" (for specifics, see images below)
• Weight: Approx. 13.25 oz

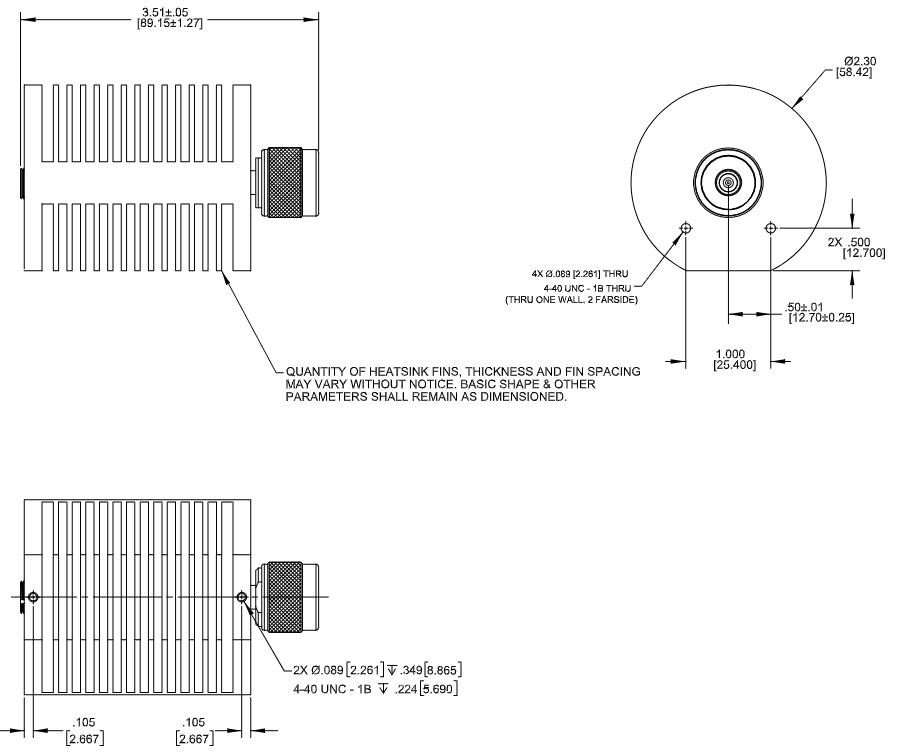

For the 25-18T-FN:

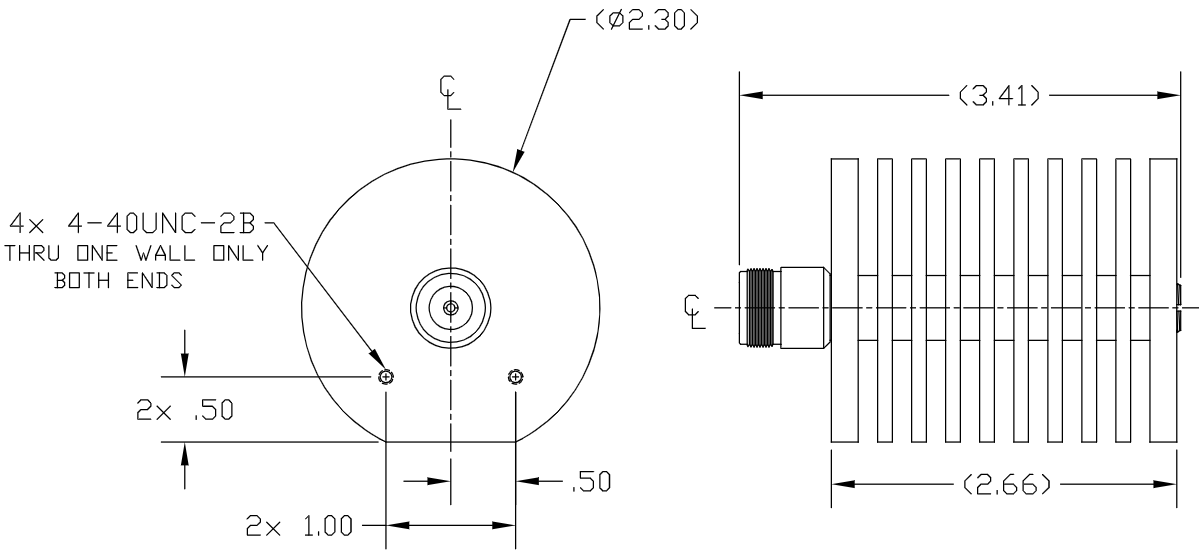

For the 25-18T-MN:
