100-6T Series Loads Technical Information

Specifications:

• Power Rating:
  • 100 W @ 25° C
  • Derated linearly to 10 W @ 125° C
• Peak Power: 1000 W MAX. (5µS PW, /<.01% Duty Cycle)
• Frequency Range & VSWR
  • DC to 2 GHz @ 1.20:1 MAX.
  • 2 GHz to 4 GHz @ 1.30:1 MAX.
  • 4 GHz to 6 GHz @ 1.40:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Temperature Range: -55° C to +125° C
• Operating Position: Heat sink oriented vertically
• Finish: Black Anodized Aluminum
• Nominal Size: 5.63" x 3.8" x 2.7" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.2 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

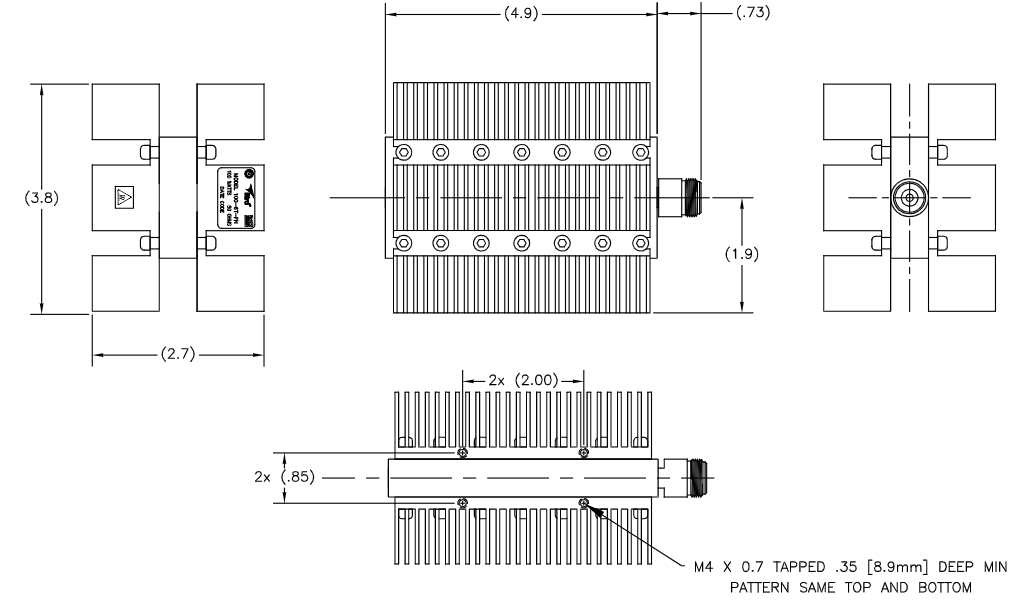

For the 100-6T-FN:

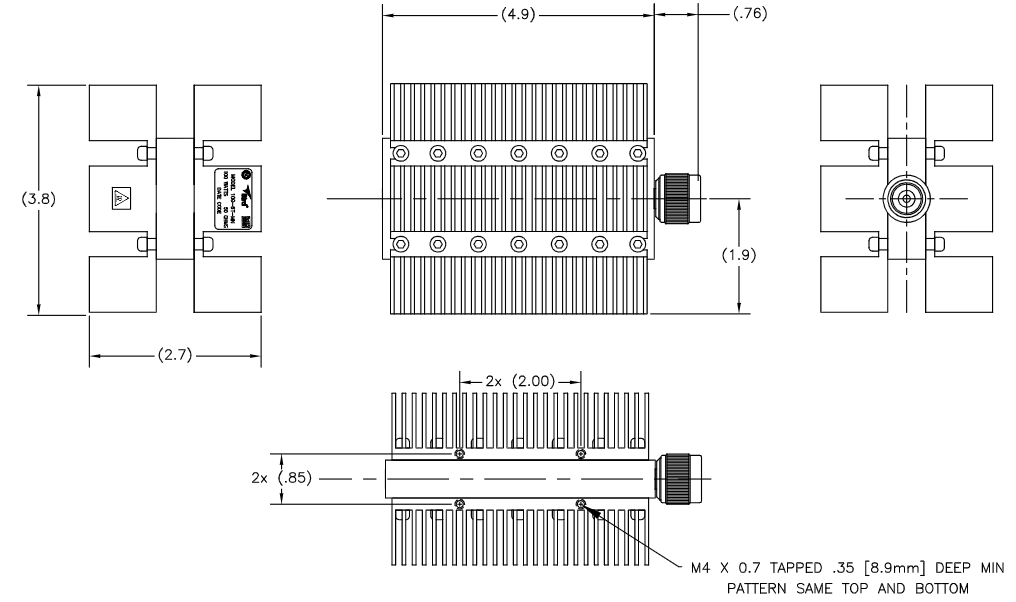

For the 100-6T-MN:
