100-ST Series Loads Technical Information

Specifications:

• Power Rating:
  • 100 W MAX. @ 40° C
  • 125 W MAX. @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Temperature Range: -40° C to +40° C
• Operating Position: ANY
• Finish: Black Anodized Fins

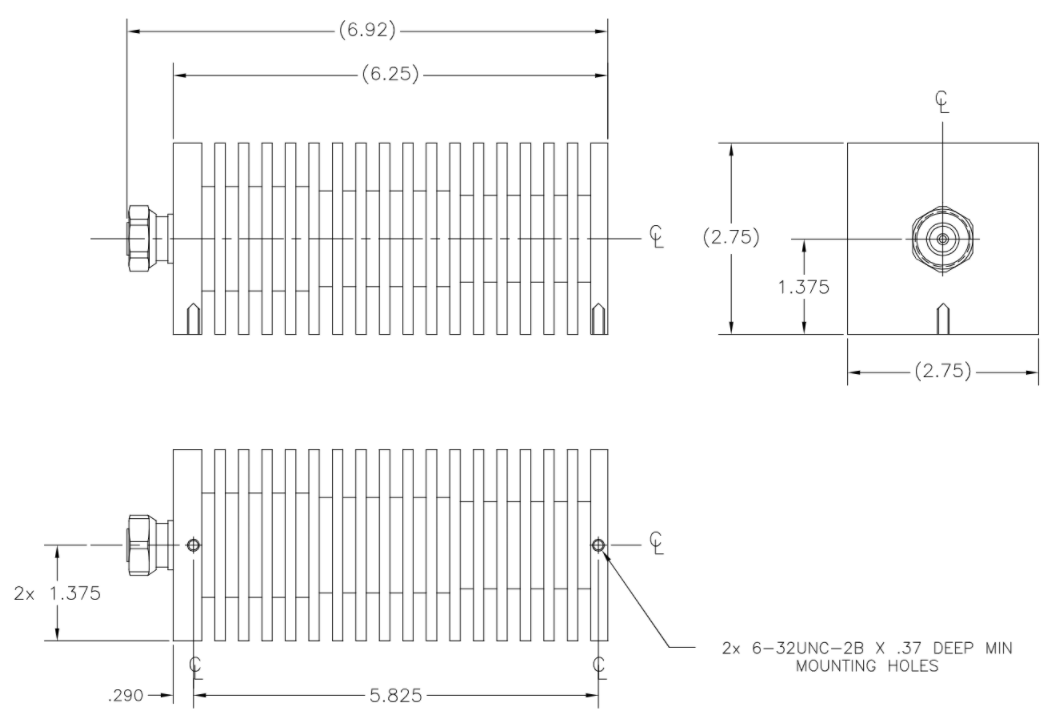

• Nominal Size: 6.87" x 2.75" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.7 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

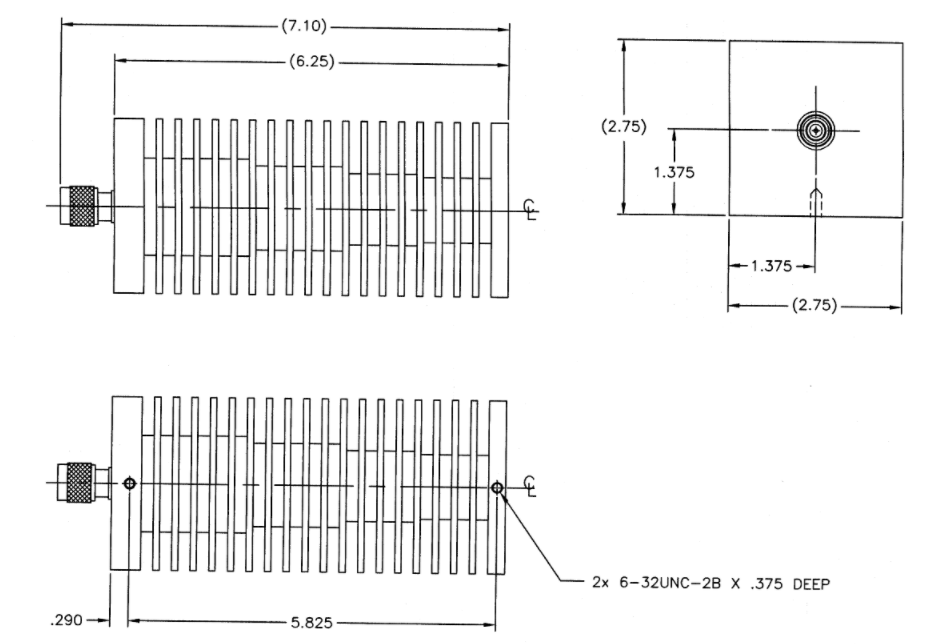

For the 100-ST-FB:

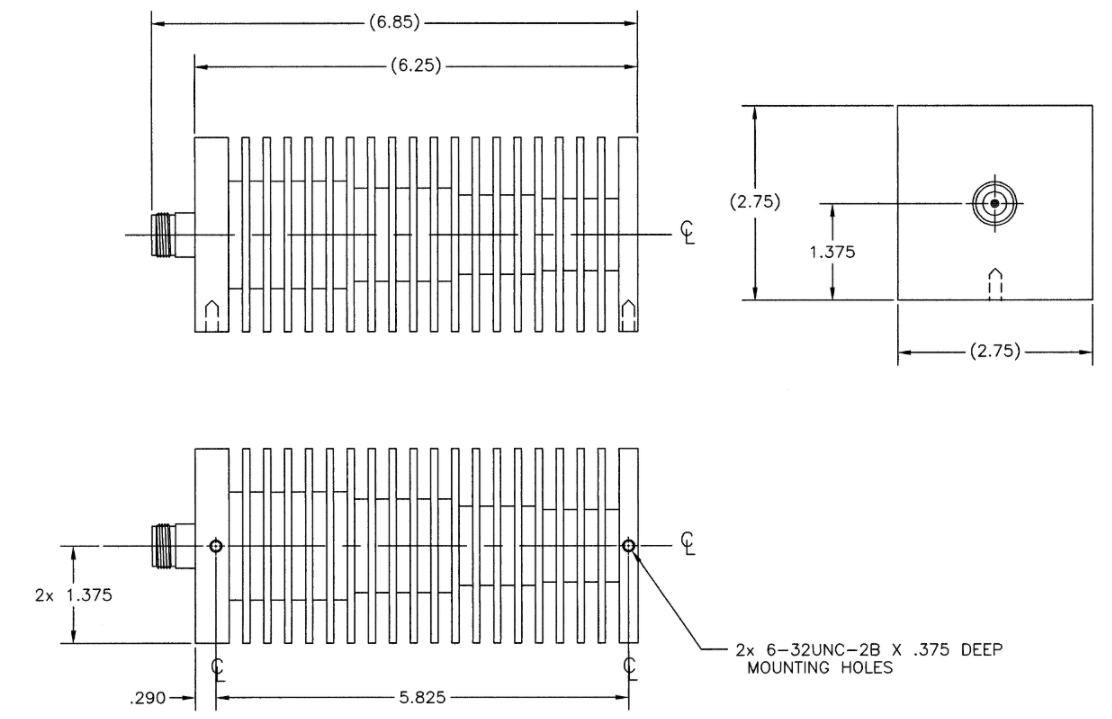

For the 100-ST-FE:

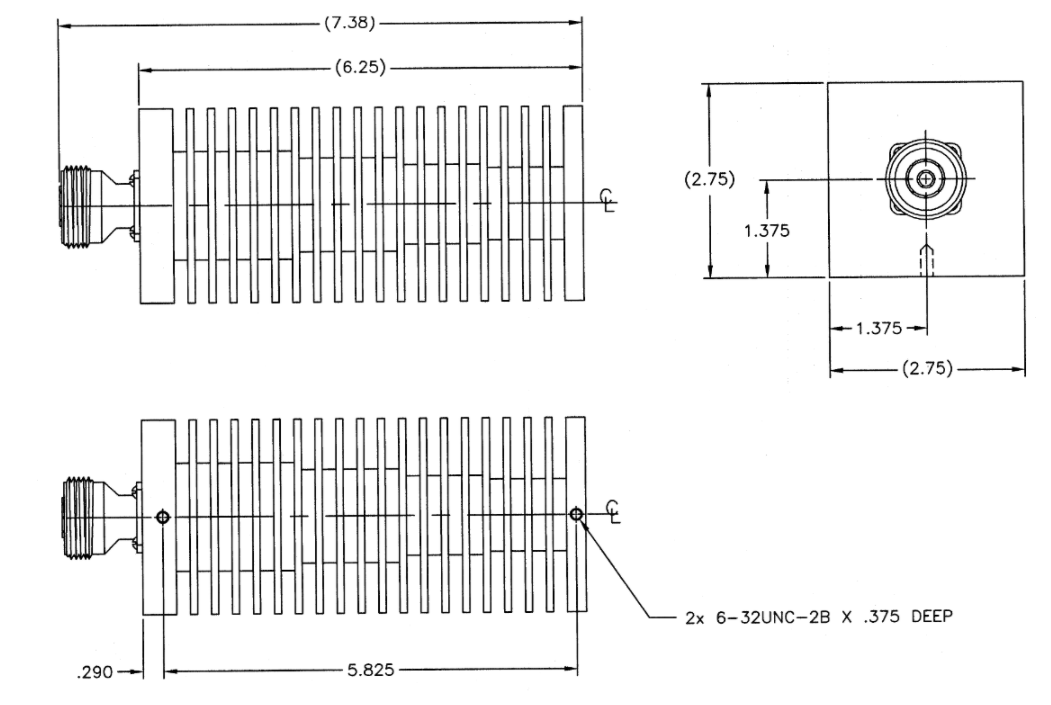

For the 100-ST-FN:

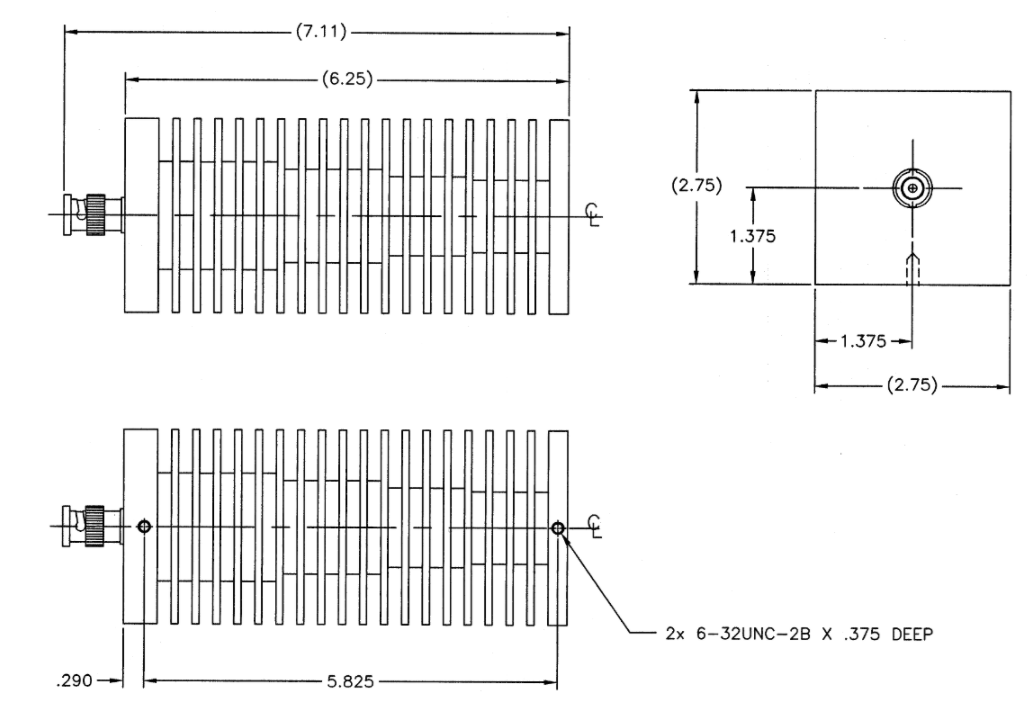

For the 100-ST-FT:

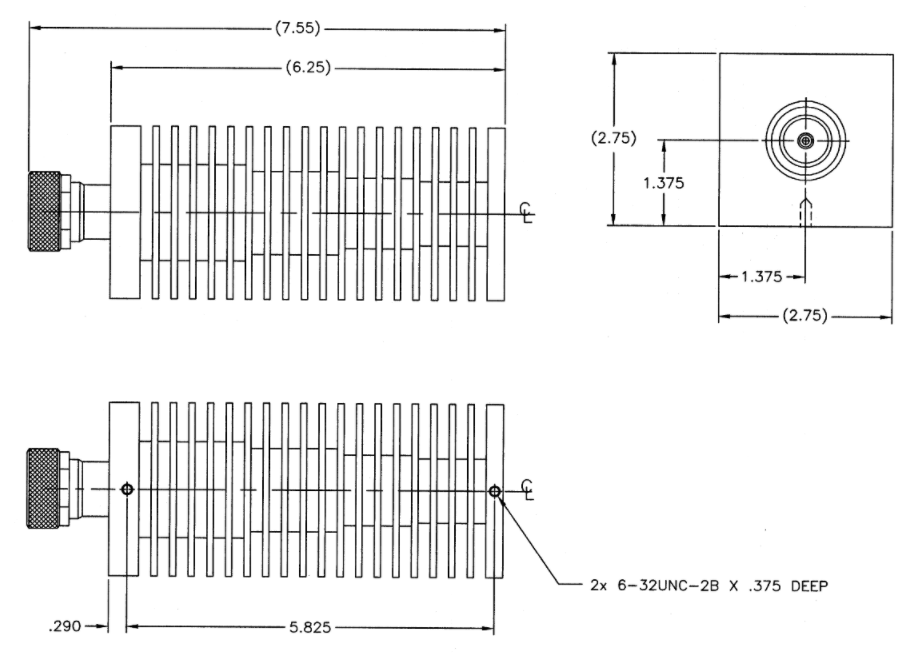

For the 100-ST-MB:

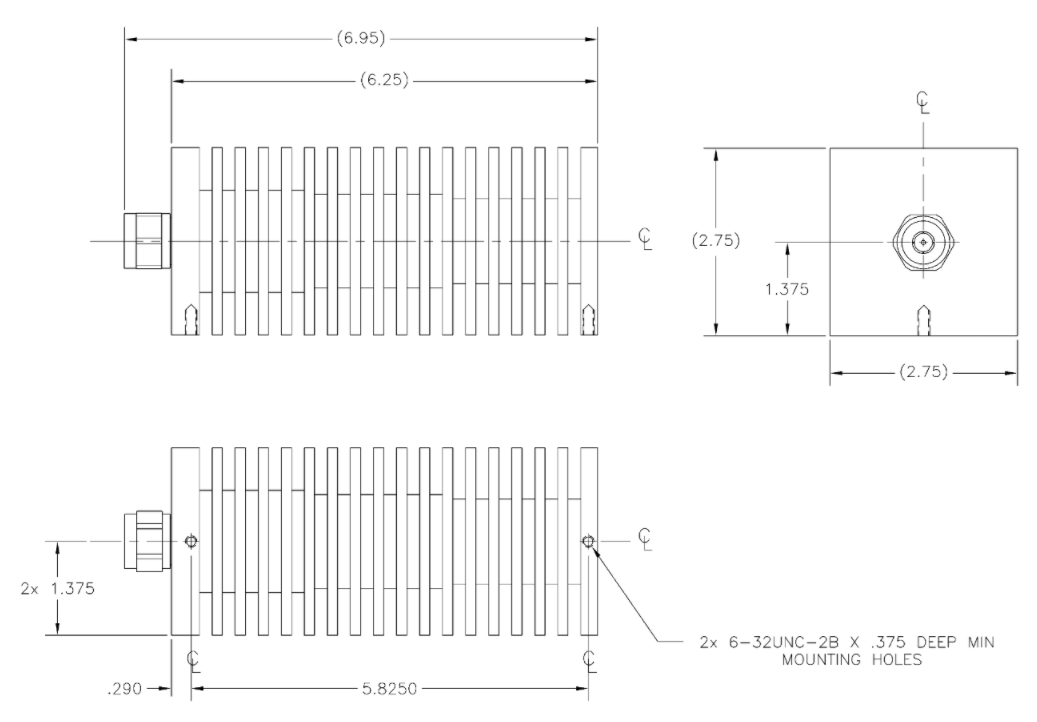

For the 100-ST-MD:

• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C

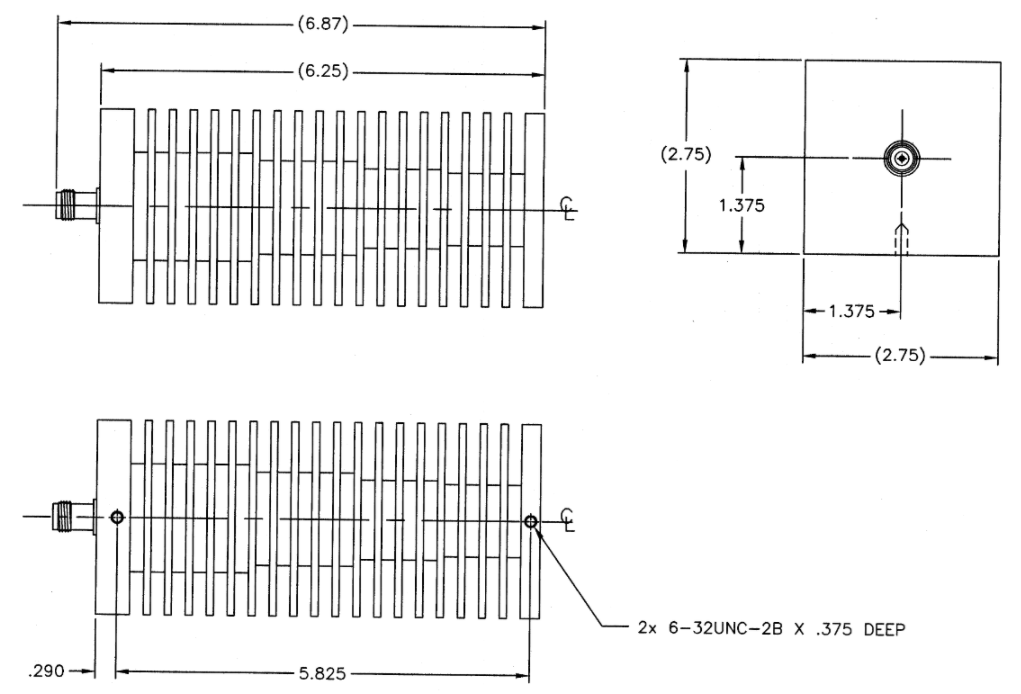

For the 100-ST-ME:

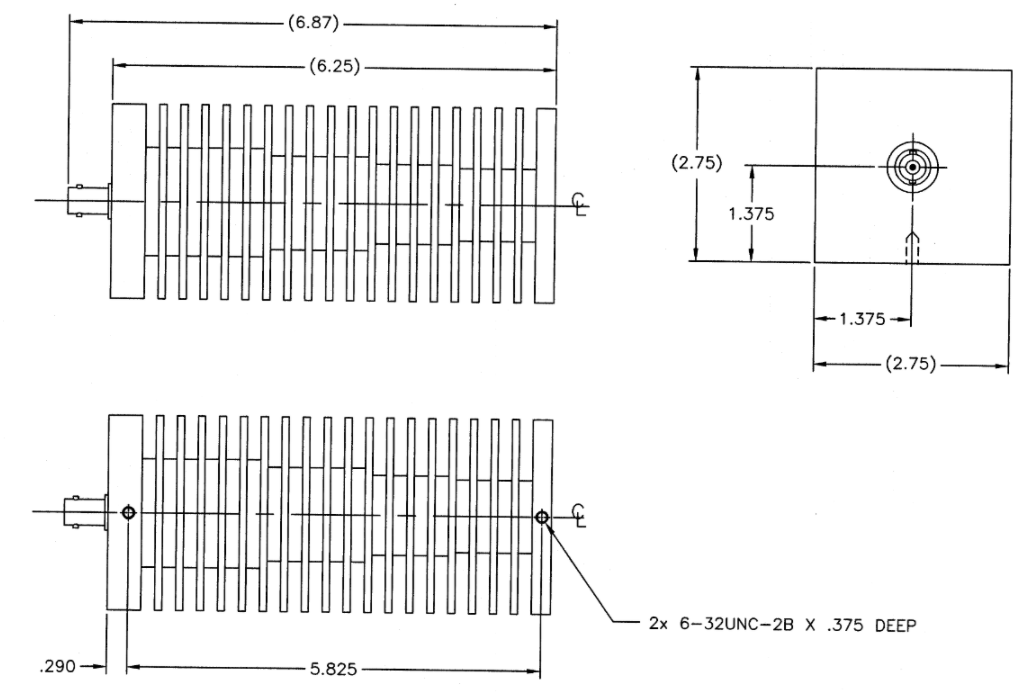

For the 100-ST-MN:

For the 100-ST-MT:
