150-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 150 W @ 40° C
  • 180 W @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 3 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C
• Operating Position: Vertically (feet down)
• Finish: Silver or Tri-Alloy

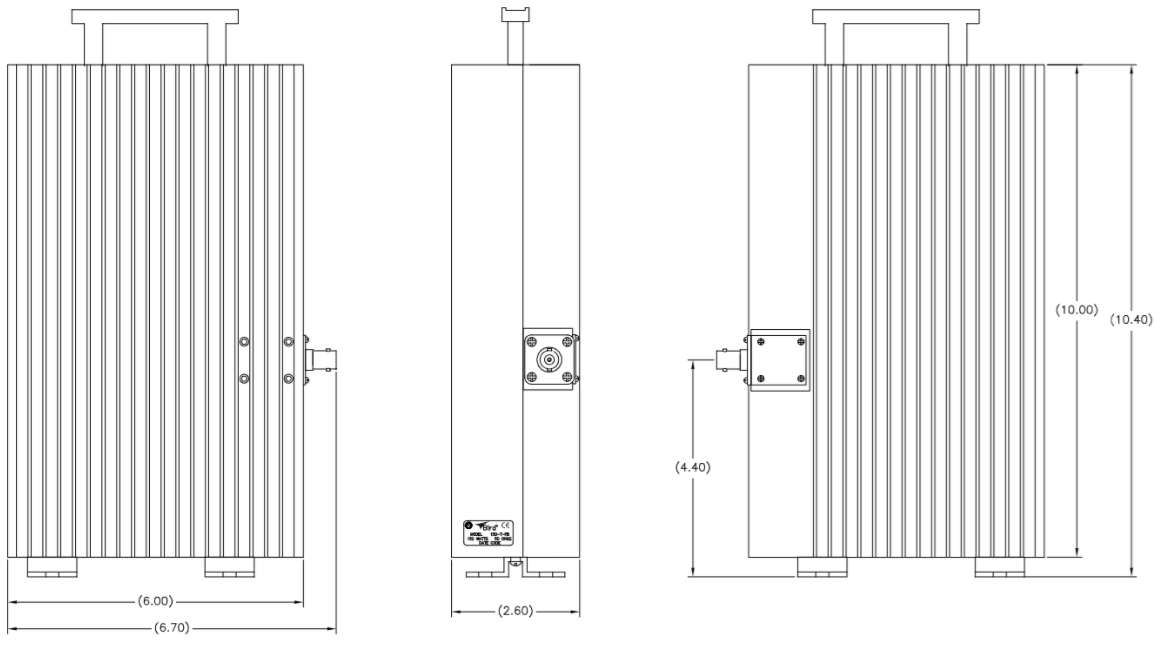

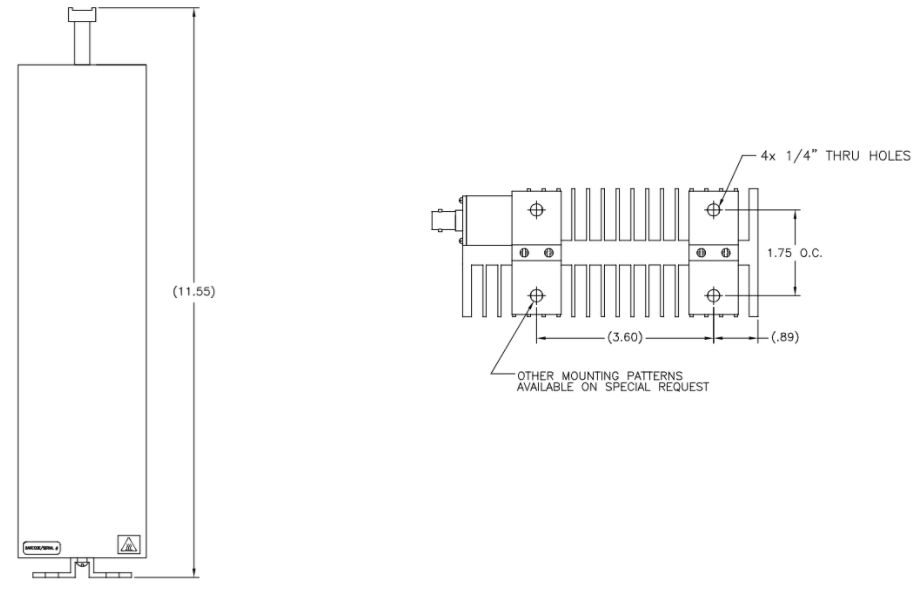

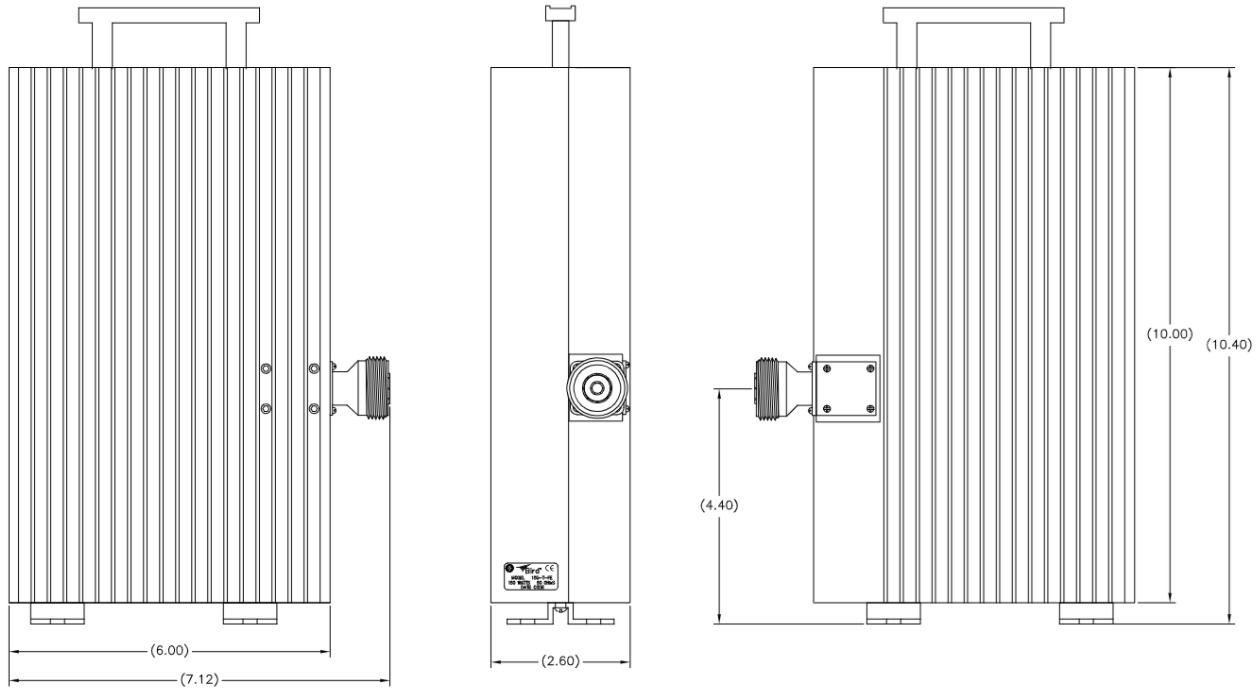

• Nominal Size: 6.70" x 2.60" x 11.55" (for specifics, see images below)
• Weight: Approx. 6.0 LBS

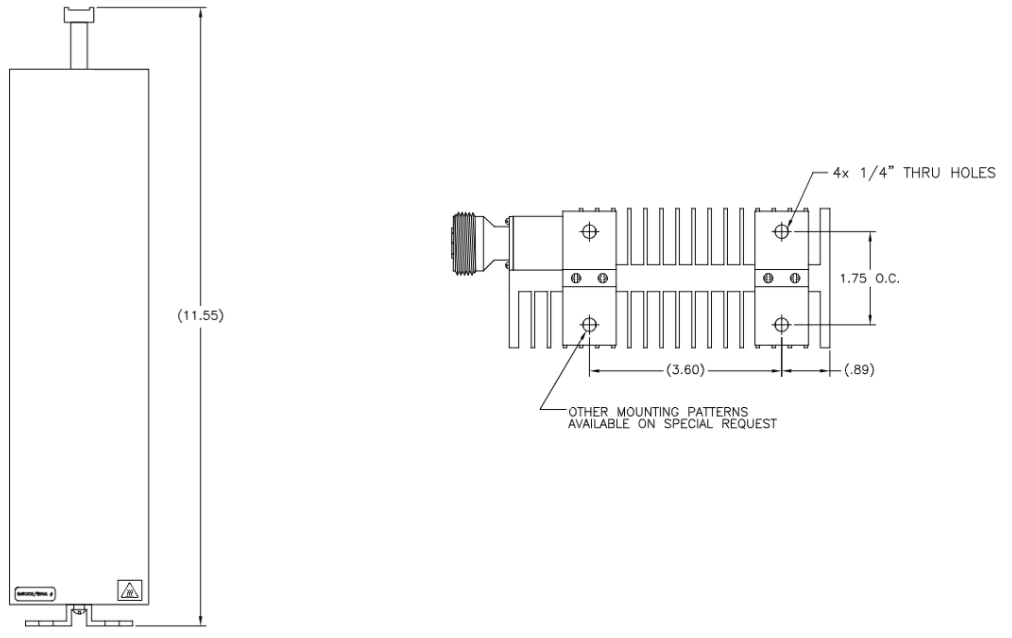

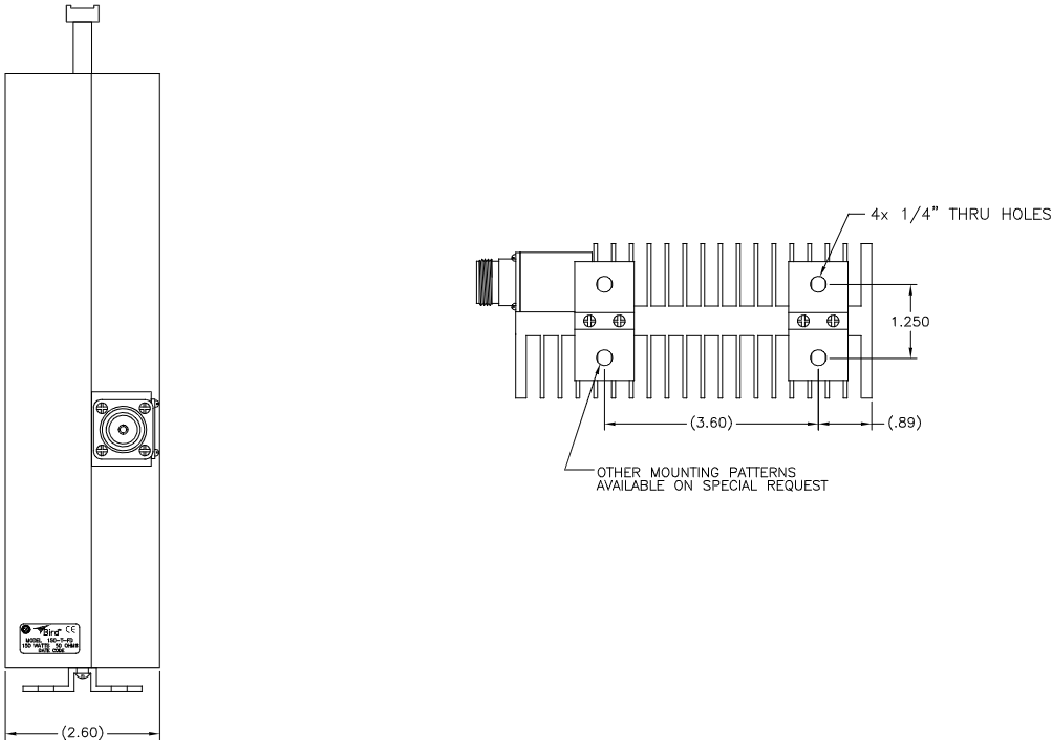

For the 150-T-FB:

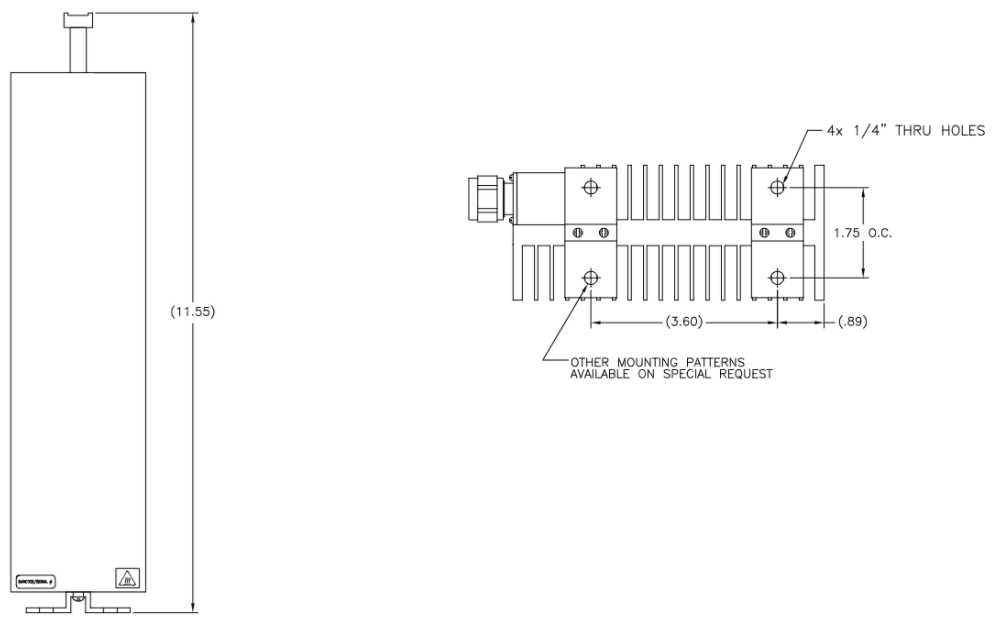

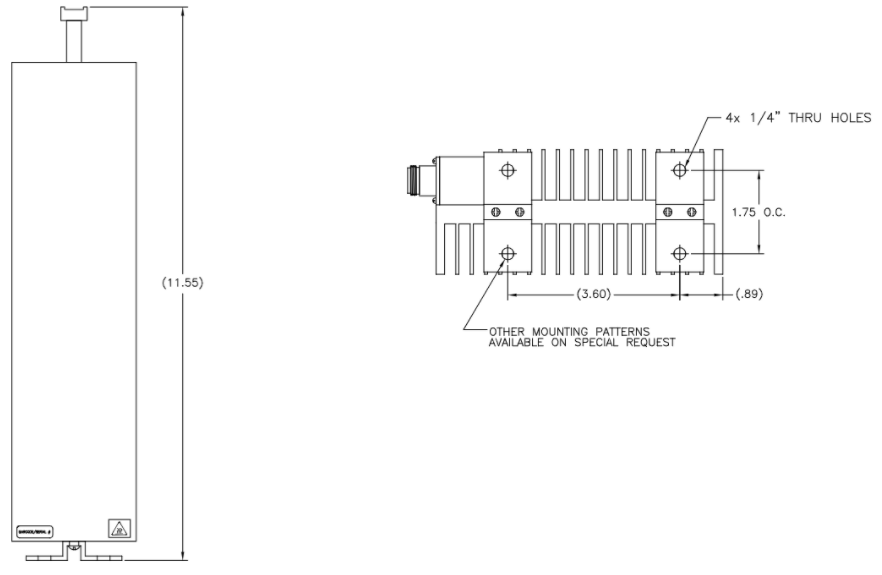

For the 150-T-FD:

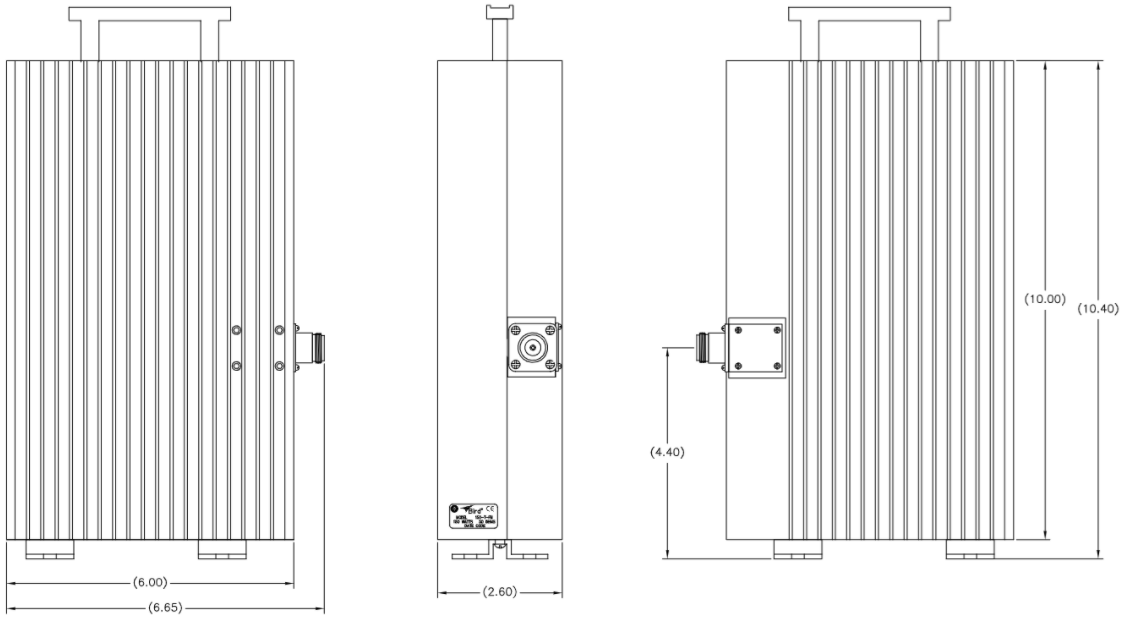

For the 150-T-FE:

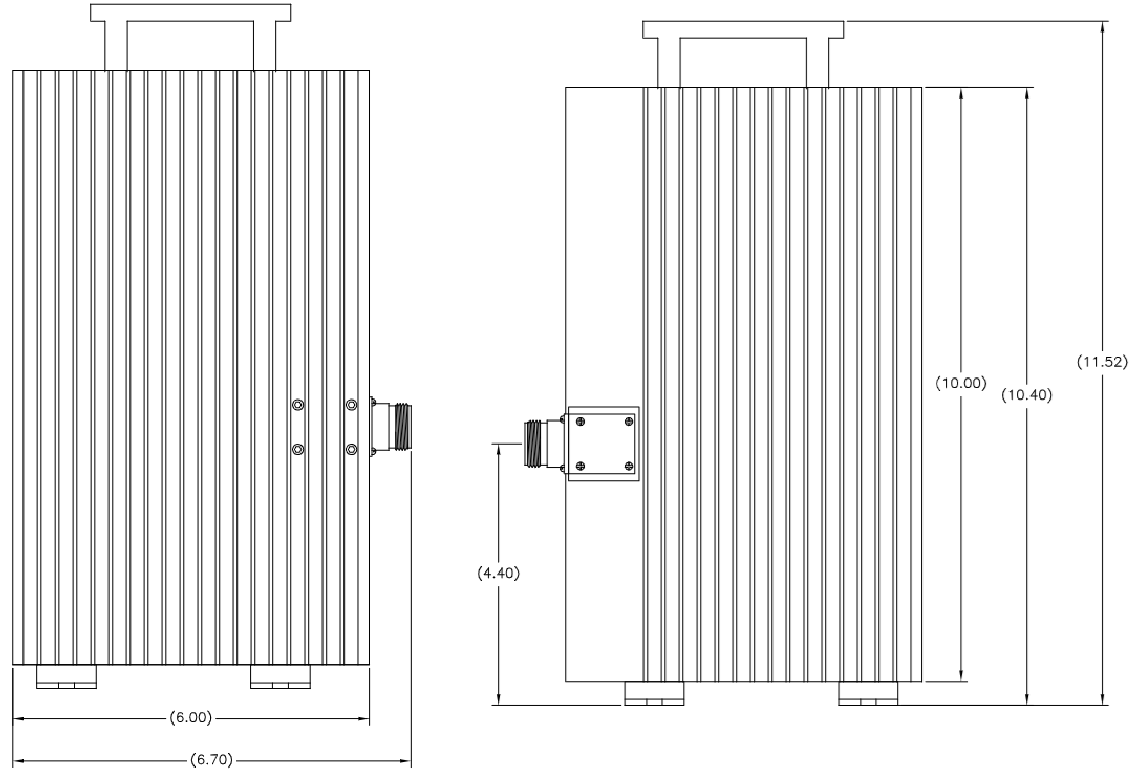

For the 150-T-FN:

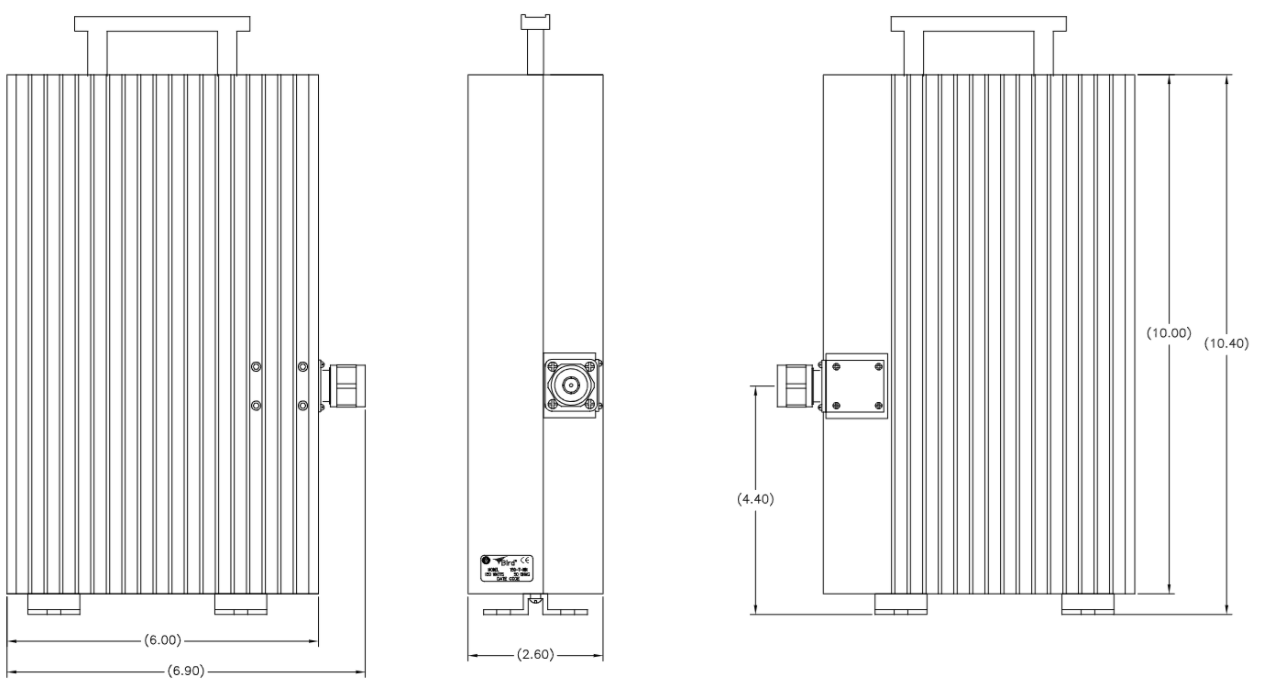

For the 150-T-MN:
