150-CT Series Loads Technical Information

Specifications:

• Power Rating:
  • 150 W @ 100°C flange temperature, derated to 0 W @ 150°C
• Frequency Range & VSWR:
  • DC to 2 GHz @ 1.15:1 MAX.
  • 2 GHz to 3 GHz at 1.25:1 MAX.
• Impedance: 50 Ohms ±5% Nominal
• Operating Position: ANY
• Finish: Silver or Tri-Alloy
• Resistive Element: Thick Film
• Nominal Size: 1.86" x 1.25" x 1.06" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.2 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

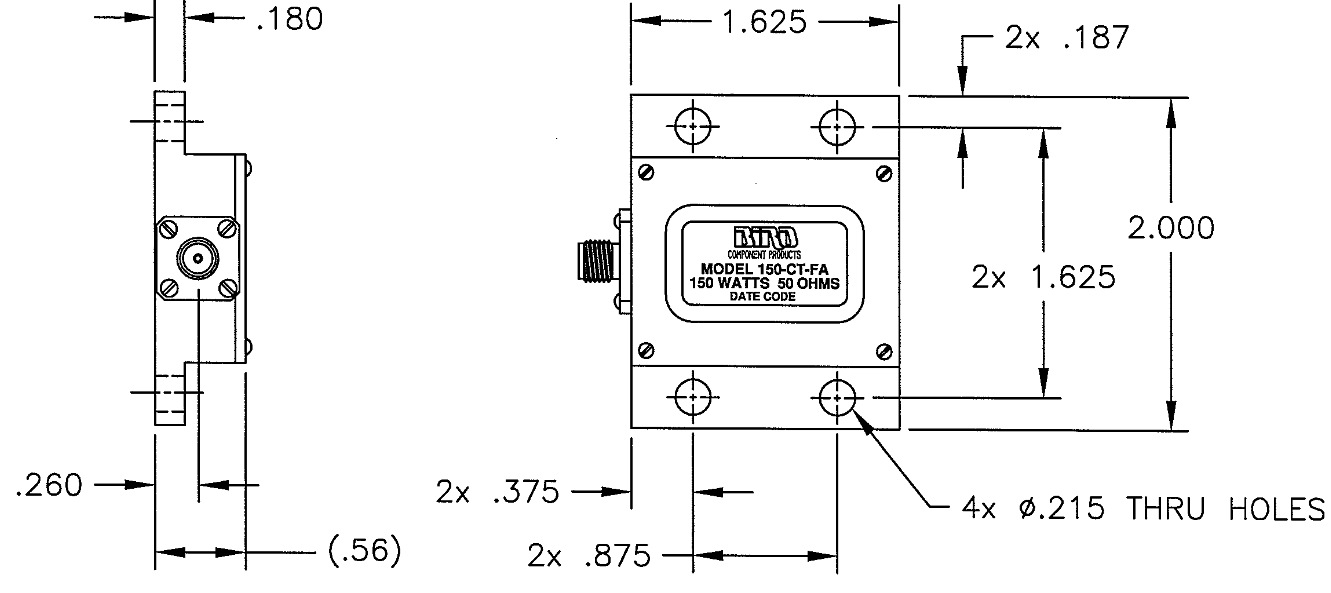

For the 150-CT-FA:

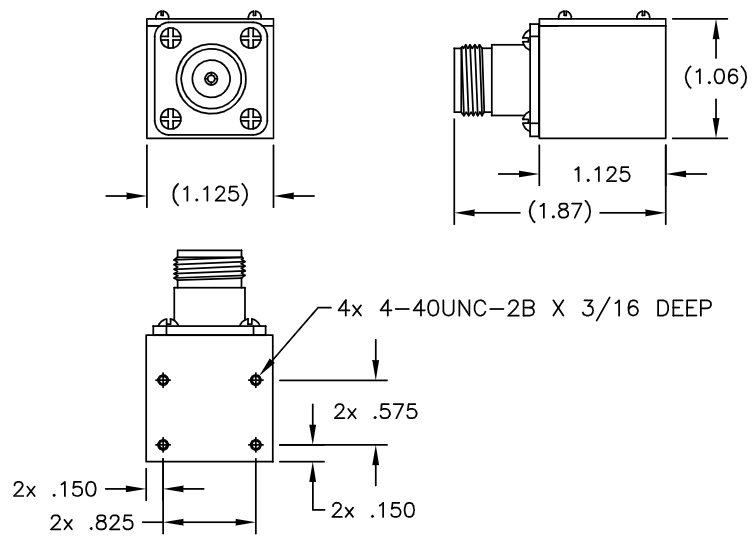

For the 150-CT-FN:

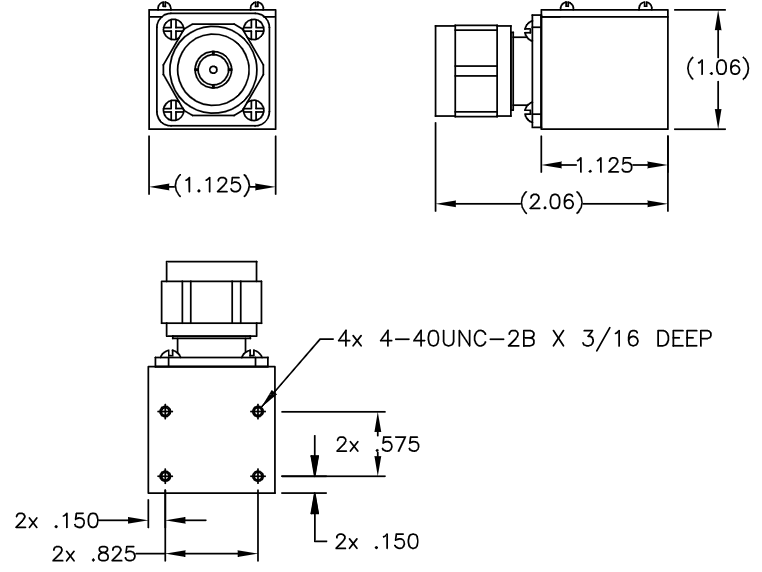

For the 150-CT-FT:

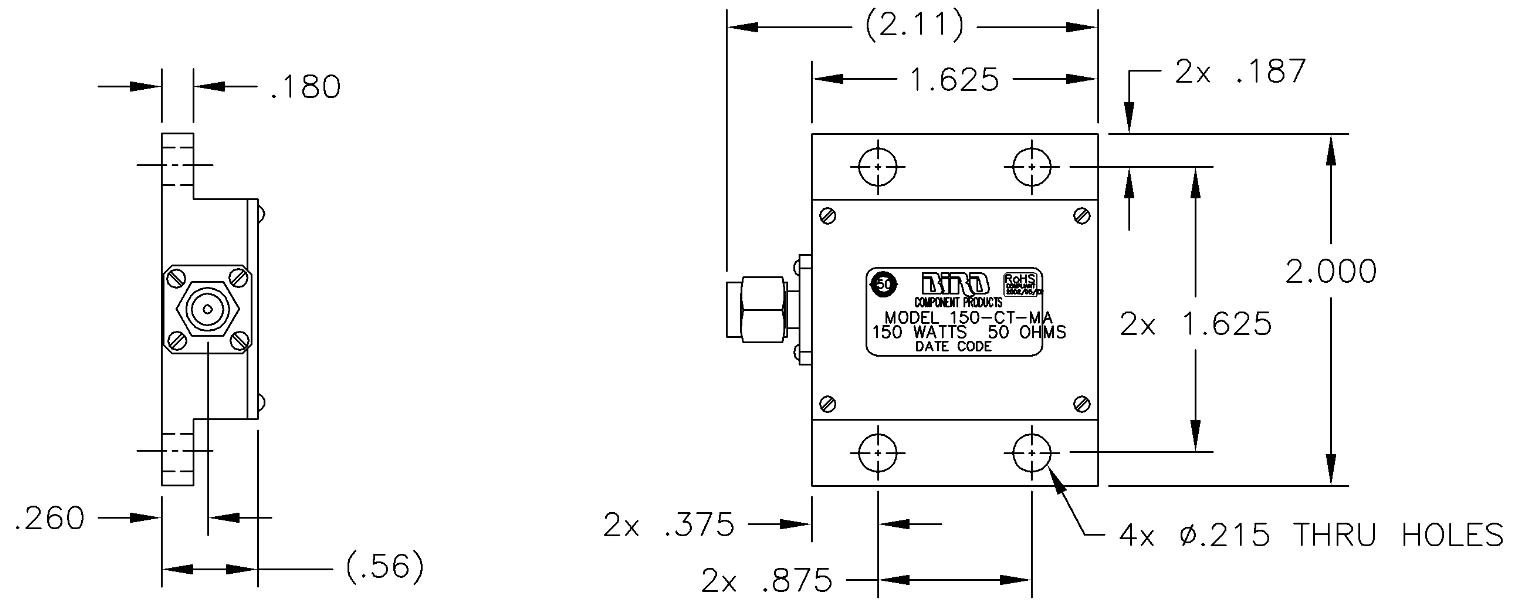

For the 150-CT-MA:

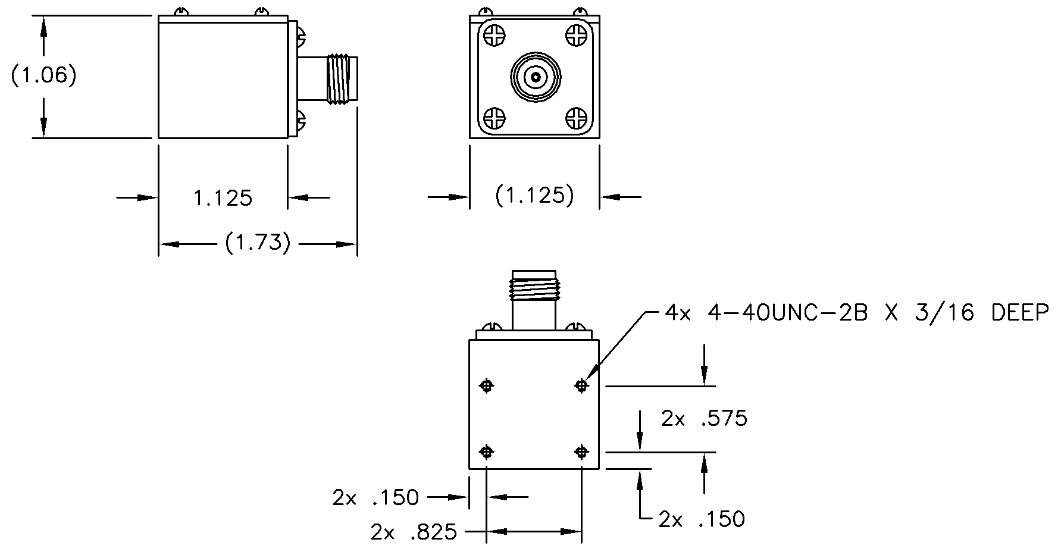

For the 150-CT-MN:
