250-CT Series Loads Technical Information

Specifications:

• Power Rating:
  • 250 W @ 100°C flange temperature, derated to 0 W @ 150°C
• Impedance: 50 Ohms ±5% Nominal
• Operating Position: ANY
• Finish: Silver or Tri-Alloy
• Resistive Element: Thick Film

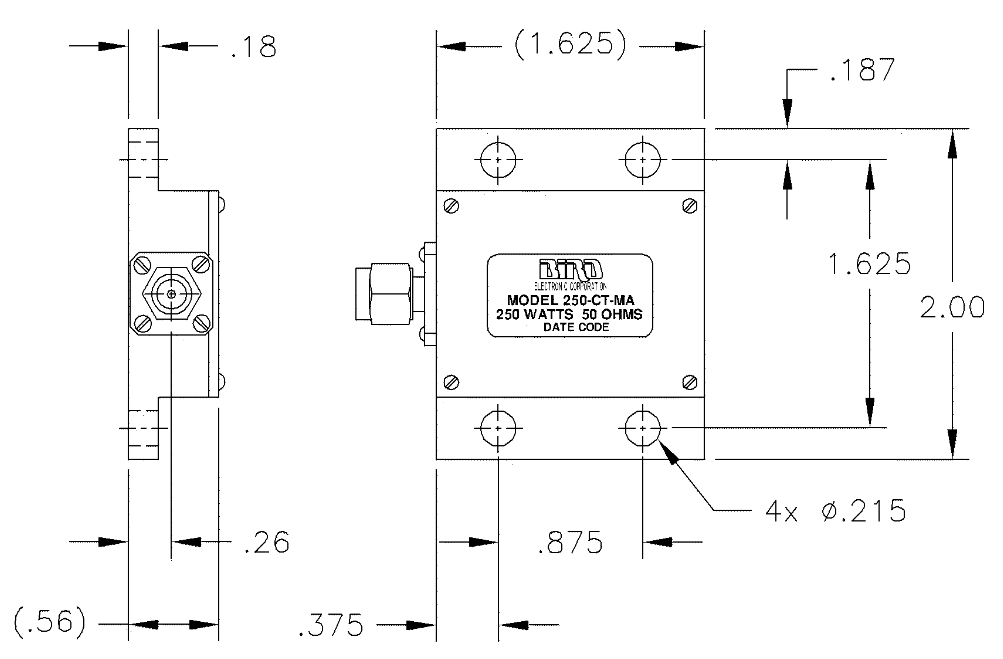

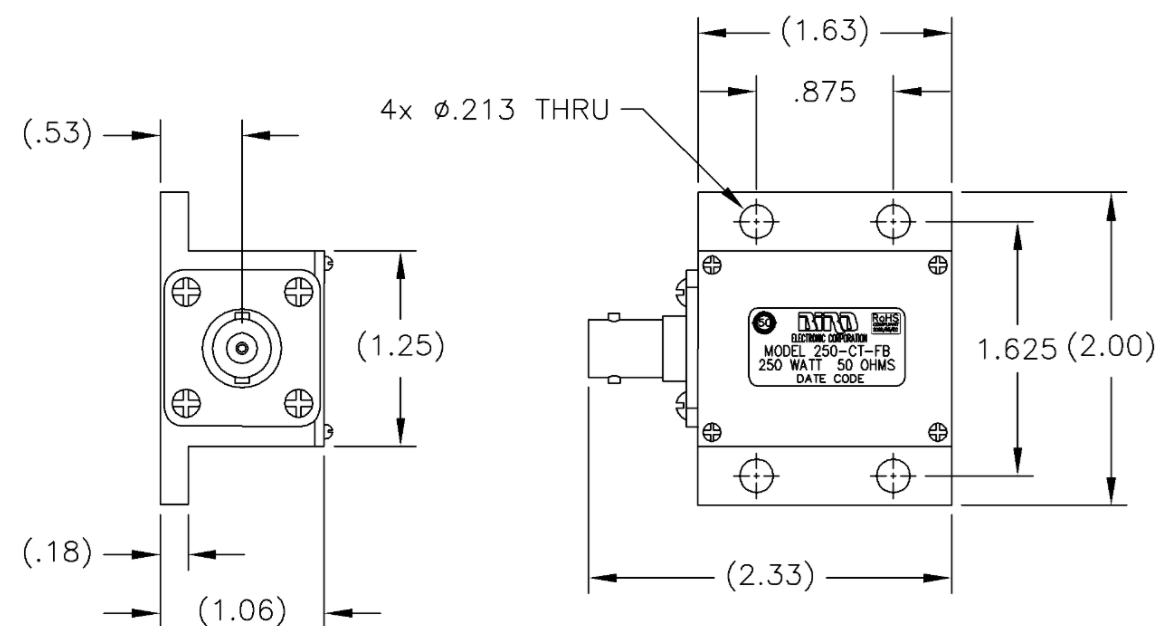

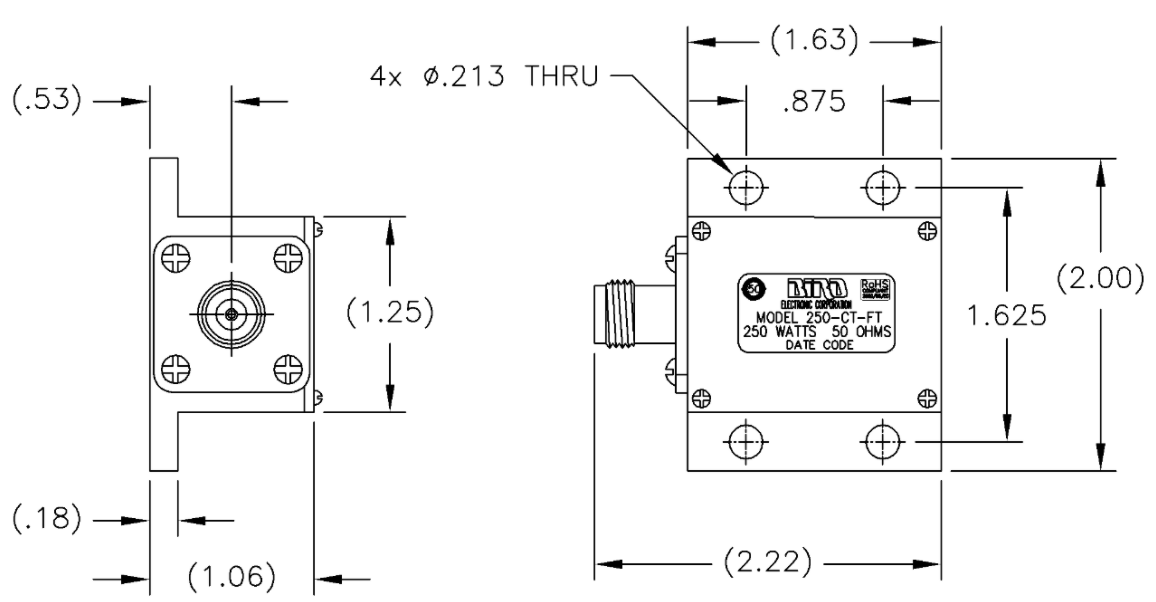

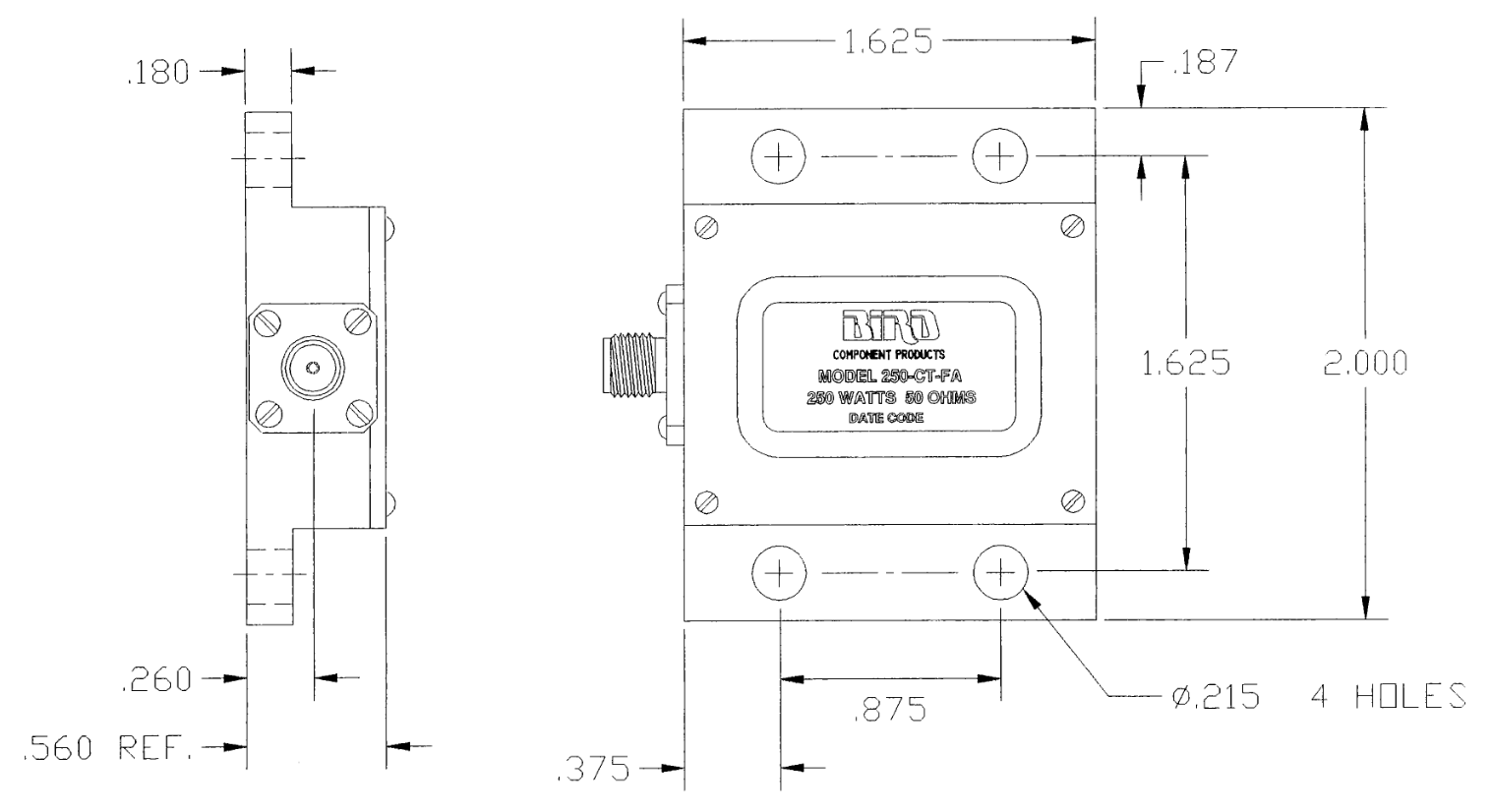

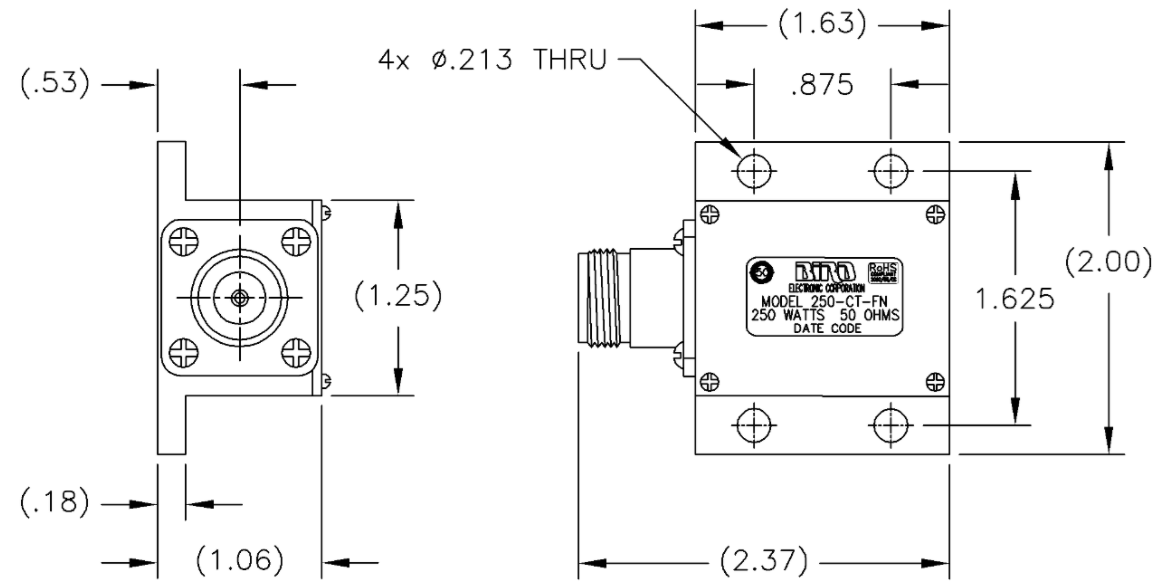

• Nominal Size: 2.36" x 2.00" x 1.06" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 5.2 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 250-CT-FA:

• Frequency Range & VSWR
  • DC to 2 GHz @ 1.15:1 MAX.
  • 2 GHz to 3 GHz at 1.25:1 MAX.

For the 250-CT-FB:

• Peak Power: 2 kW MAX.
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.

For the 250-CT-FN:

• Peak Power: 2 kW MAX.
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.

For the 250-CT-FT:

• Peak Power: 2 kW MAX.
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.

For the 250-CT-MA:

• Frequency Range & VSWR
  • DC to 2 GHz @ 1.15:1 MAX.
  • 2 GHz to 3 GHz at 1.25:1 MAX.

For the 250-CT-MN:

• Peak Power: 2 kW MAX.
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.
