300-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 300 W @ 40° C
  • 360 W @ 25° C
  • Derated linearly to 0 W from 40° C to 120° C
• Peak Power: 2.5 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average power rating
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +120° C
• Operating Position: Mounting brackets down
• Finish: Black Anodized Aluminum

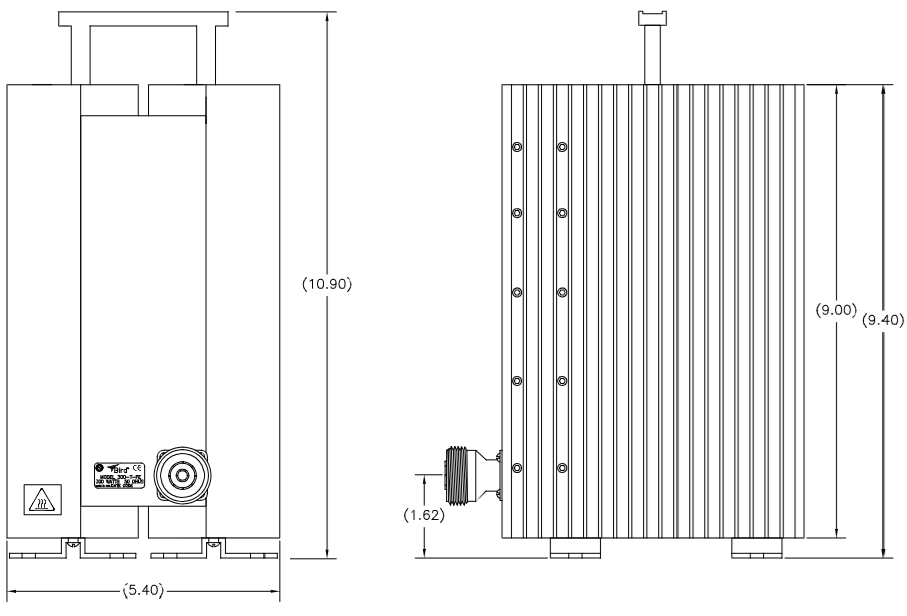

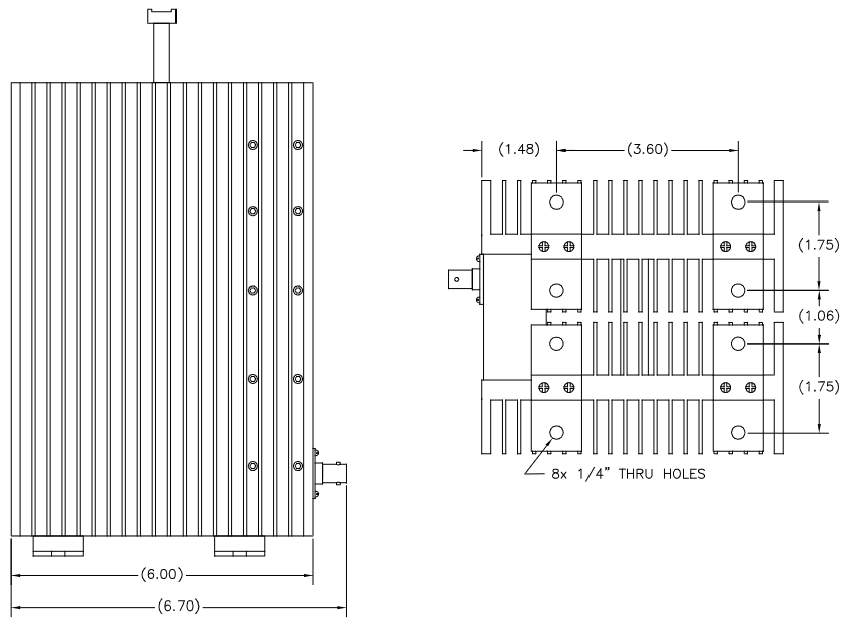

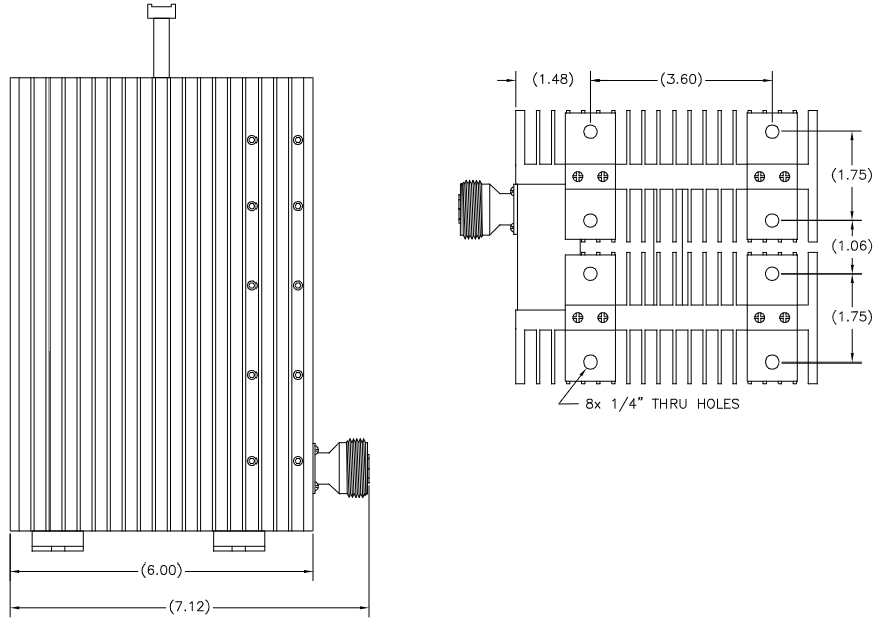

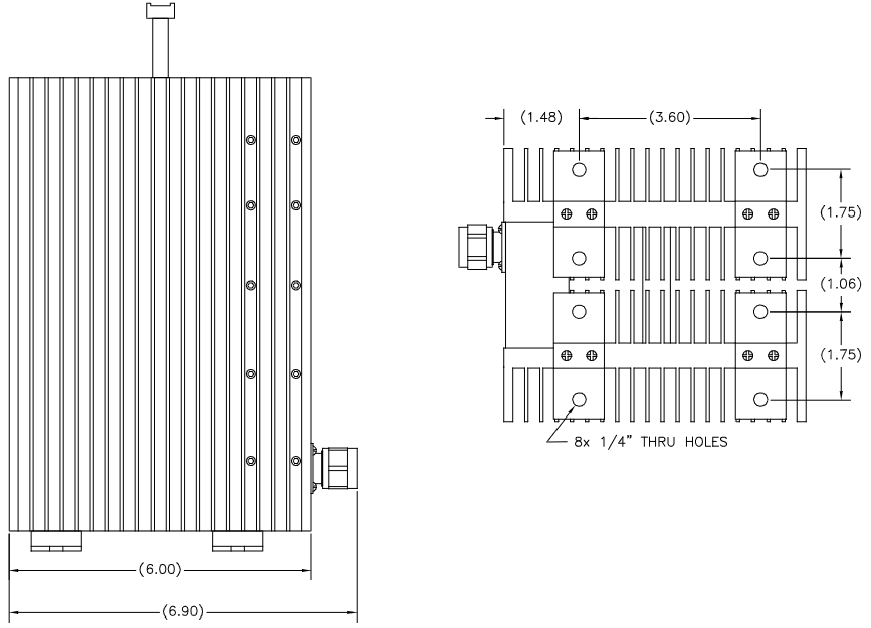

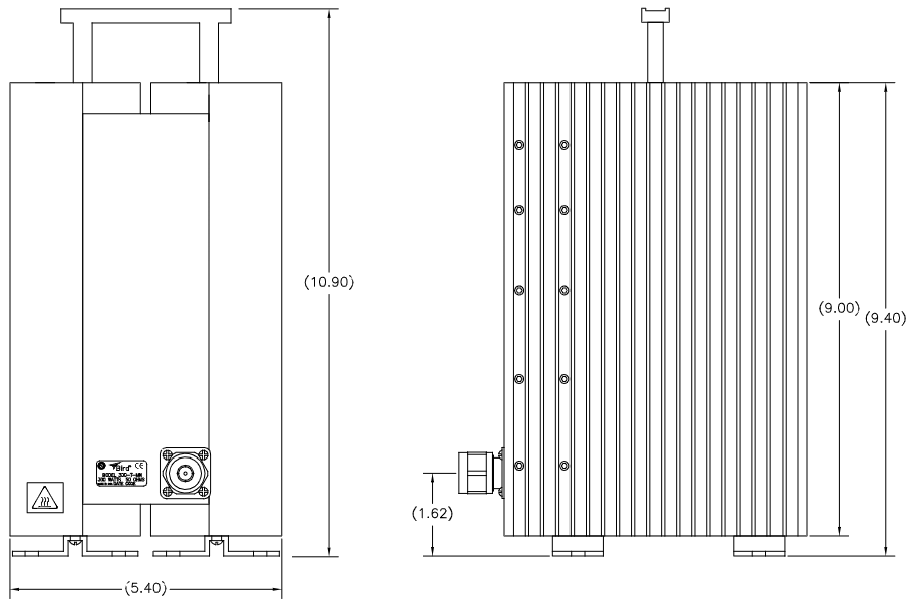

• Nominal Size: 7.4" x 5.4" x 10.9" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 11.5 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

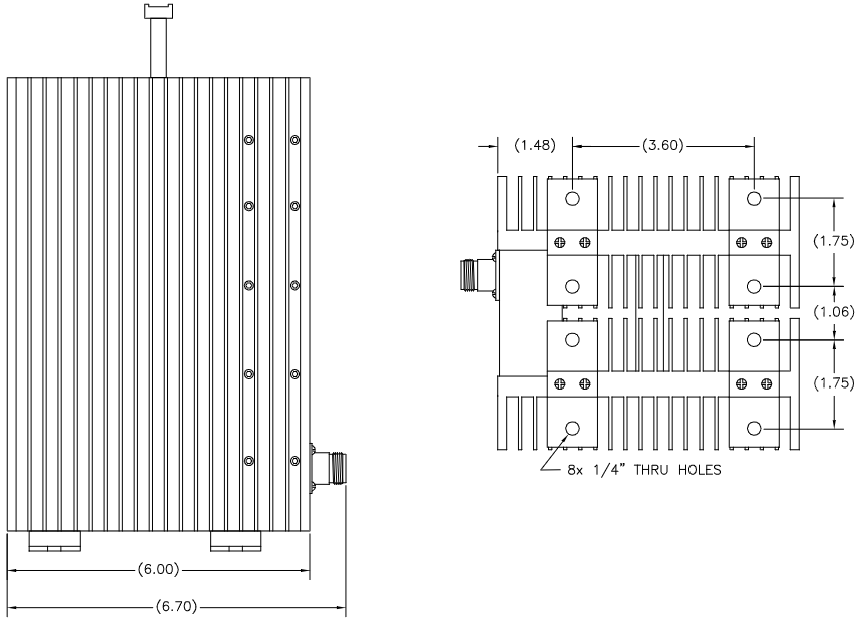

For the 300-T-FB:

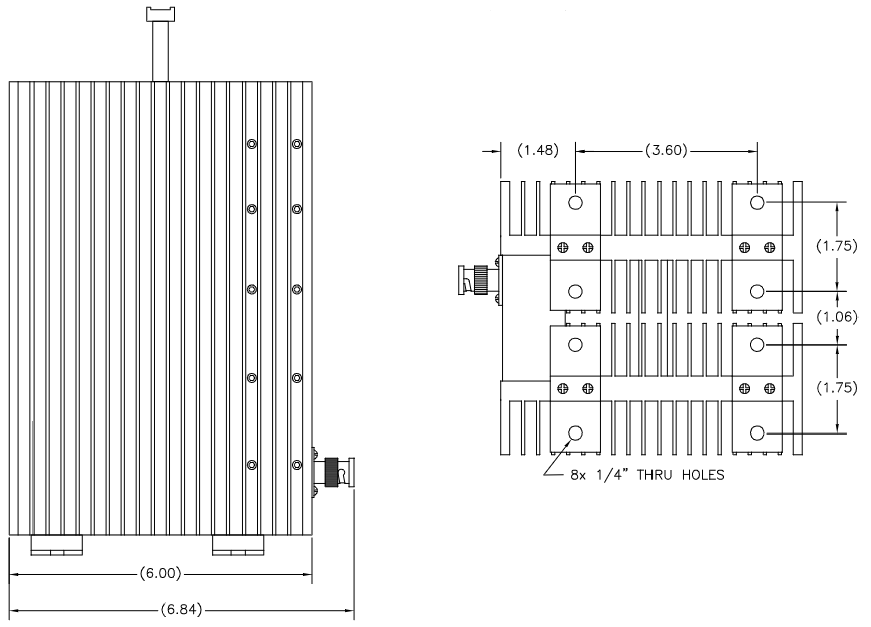

For the 300-T-FE:

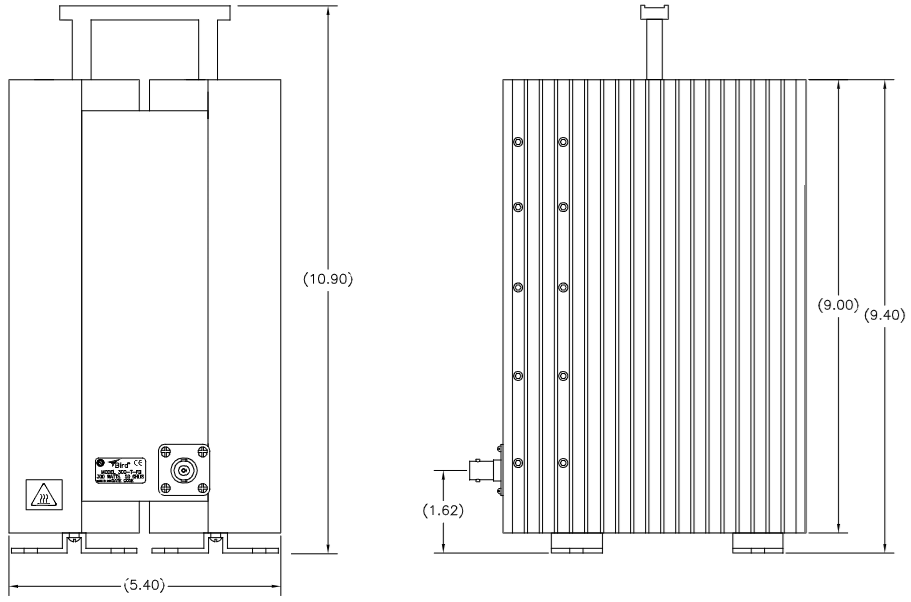

For the 300-T-FN:

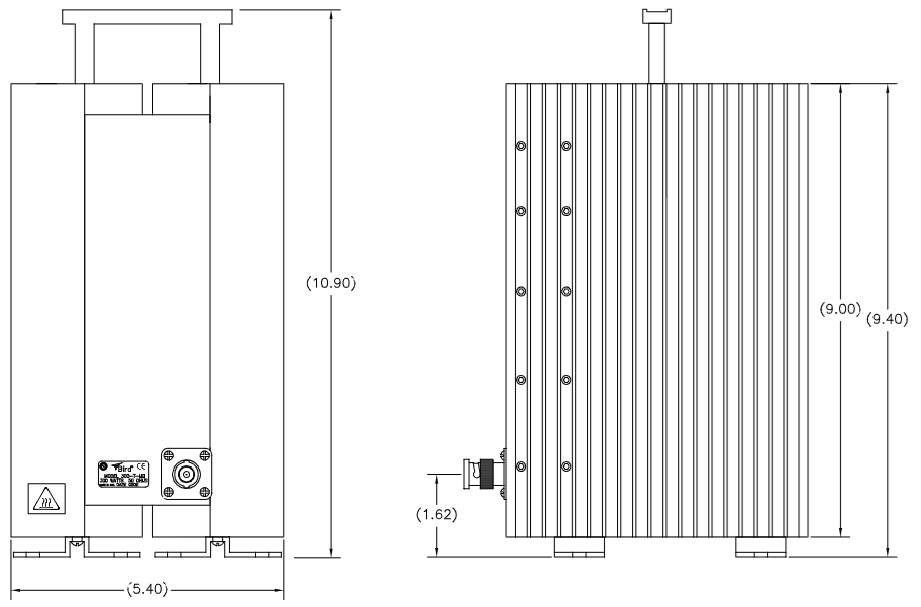

For the 300-T-MB:

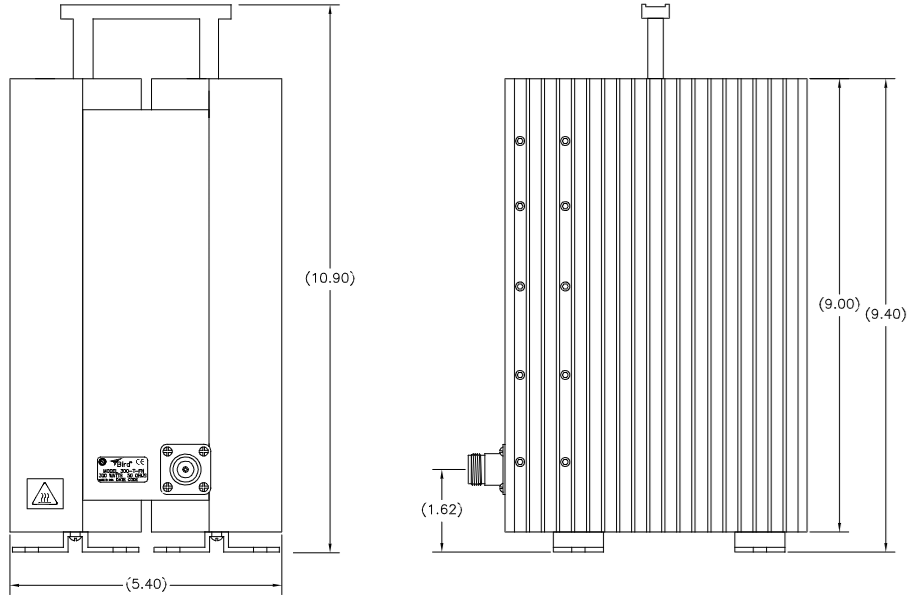

For the 300-T-MN:
