300-CT Series Loads Technical Information

Specifications:

• Power Rating:
  • 300 W avg. - Based on Max. Housing Temp. of 100 °C or less
• Peak Power Rating: 3 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average rated power
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 3 GHz at 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Temperature: -45° C to +100° C
• Finish: Silver Plated
• Nominal Size: 4.4" x 2.0" x 1.03" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 12 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

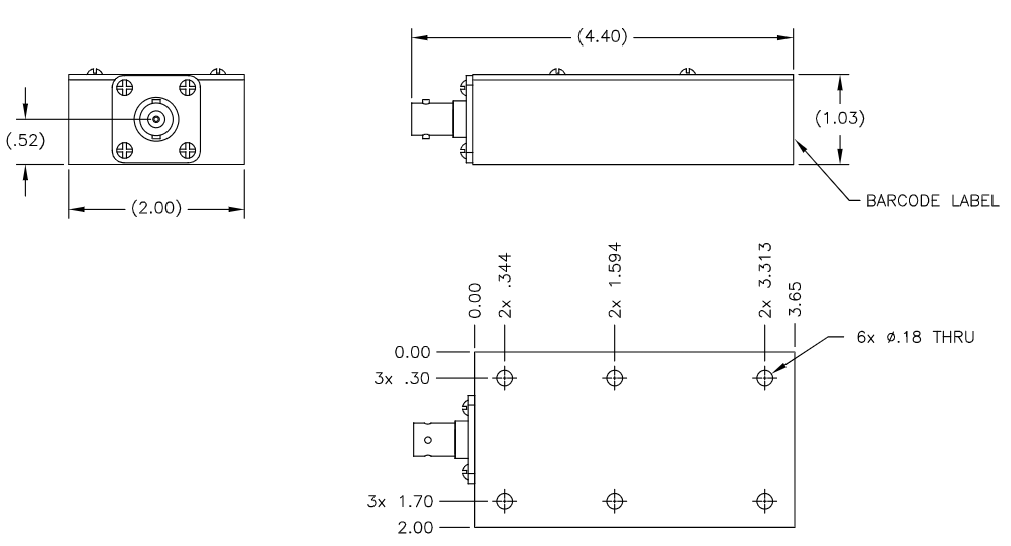

For the 300-CT-FB:

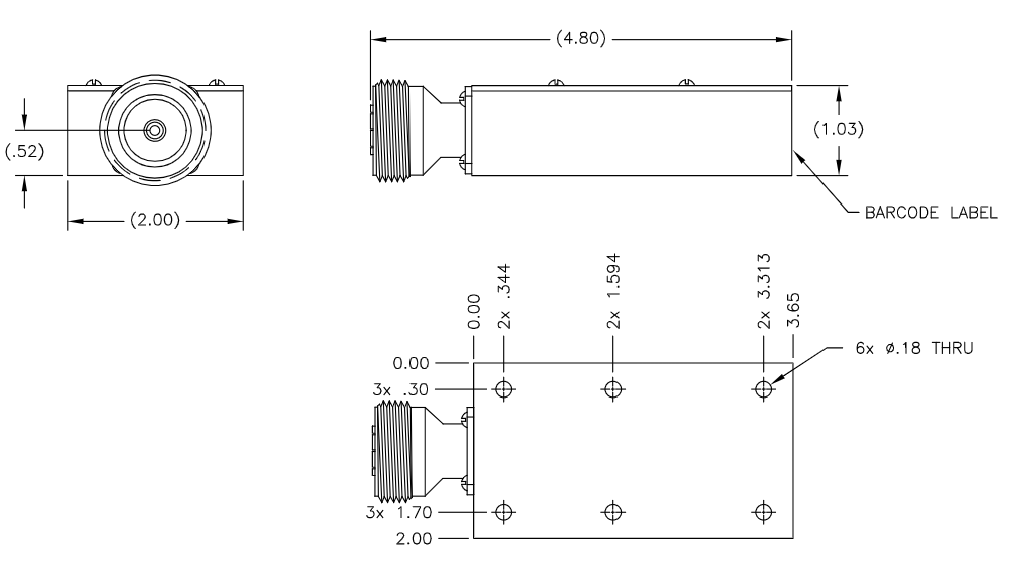

For the 300-CT-FE:

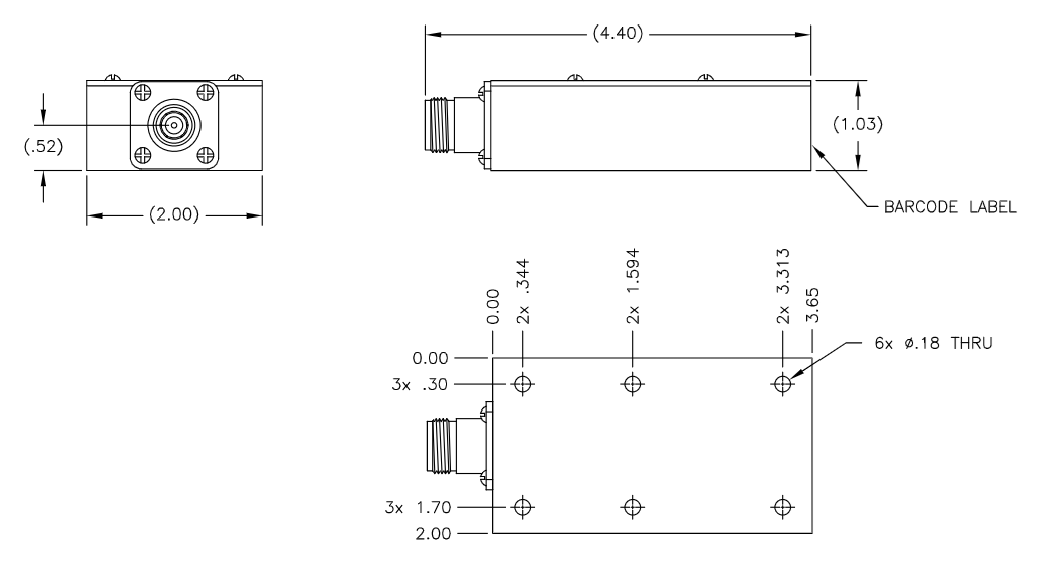

For the 300-CT-FN:

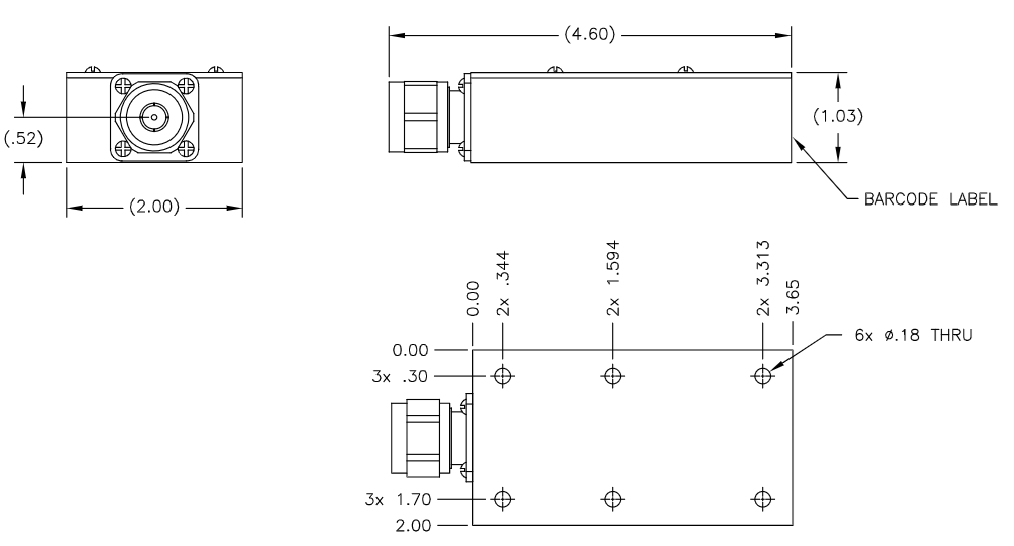

For the 300-CT-FT:

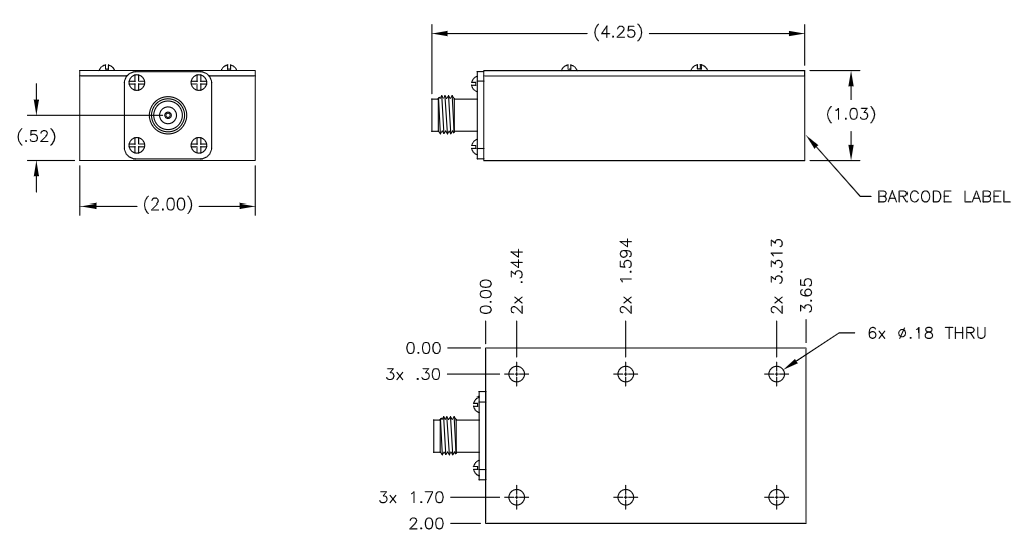

For the 300-CT-MN:
