8072A Series Loads Technical Information

Specifications:

• Power Rating:
  • 300 W when mounted to a heat sink capable of maintaining a case temperature of 100° C MAX.
  • 3.6 kW MAX. (100µS PW @ 1 kHz PRR)
• Heat Sink Required: 800 sq. in. plate x 1/8"
• Impedance: 50 Ohms (Nominal)
• Operating Position: ANY
• Finish: Semi-Gloss Black Enamel

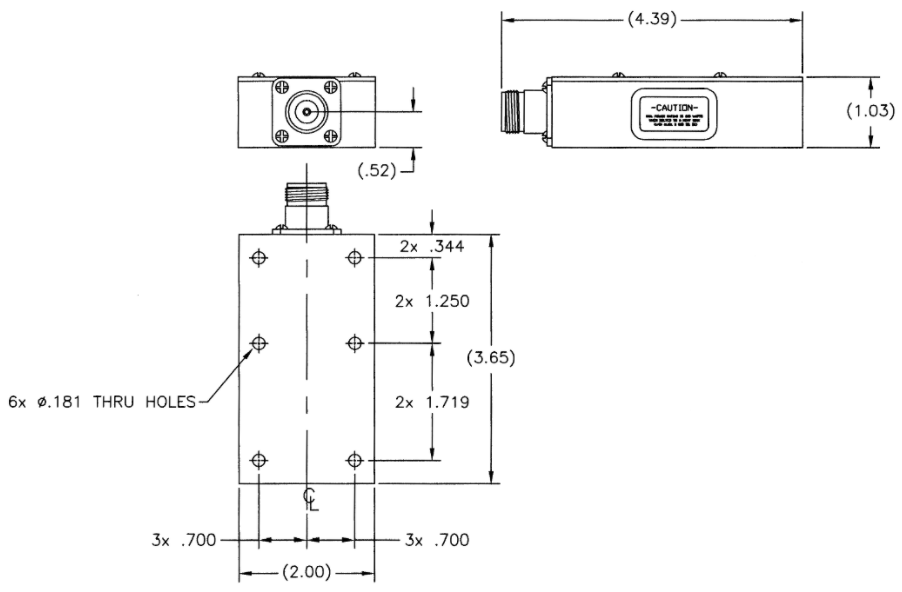

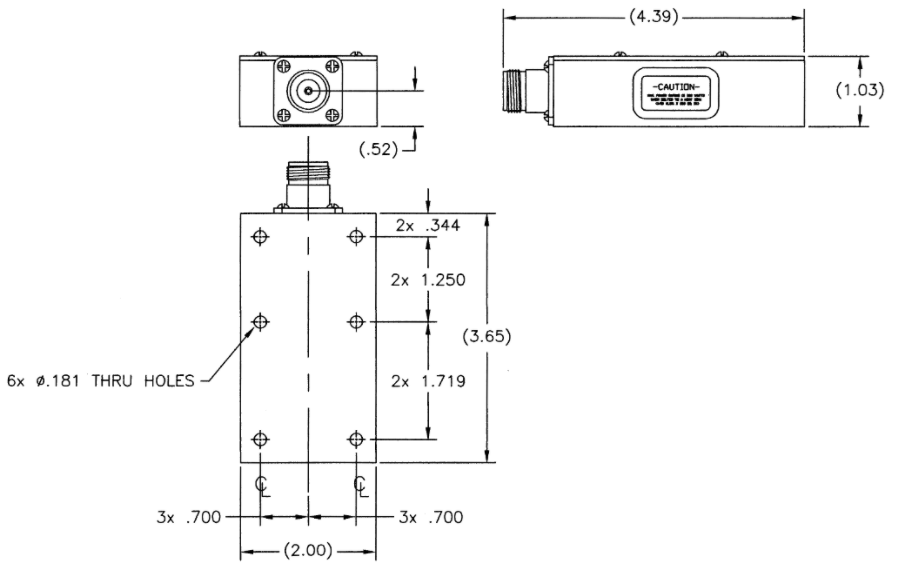

• Nominal Size: 4-25/64" x 2" x 1-1/32" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 12 oz
• Mechanical Tolerances: ± 0.015

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 8072A-1:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.5 GHz at 1.20:1 MAX.
• Ambient Temperature Range: -40° C to +55° C

For the 8072A-2:

• Frequency Range & VSWR:
  • 2.7 GHz to 2.9 GHz at 1.15:1 MAX.
• Ambient Temperature Range: -40° C to +70° C
