Specifications:
- Power Rating: 2 kW Peak
- 500 W AVG. @ 100° C flange temperature, derated to 0 W at 150° C
- Frequency Range & VSWR:
- DC to 1 GHz @ 1.15:1 MAX.
- 1 GHz to 3 GHz at 1.30:1 MAX.
- Operating Position: ANY
- Finish: Silver or Tri-Alloy
- Nominal Size: 1.63" x 1.25" x 1.06" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 8.2 oz
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

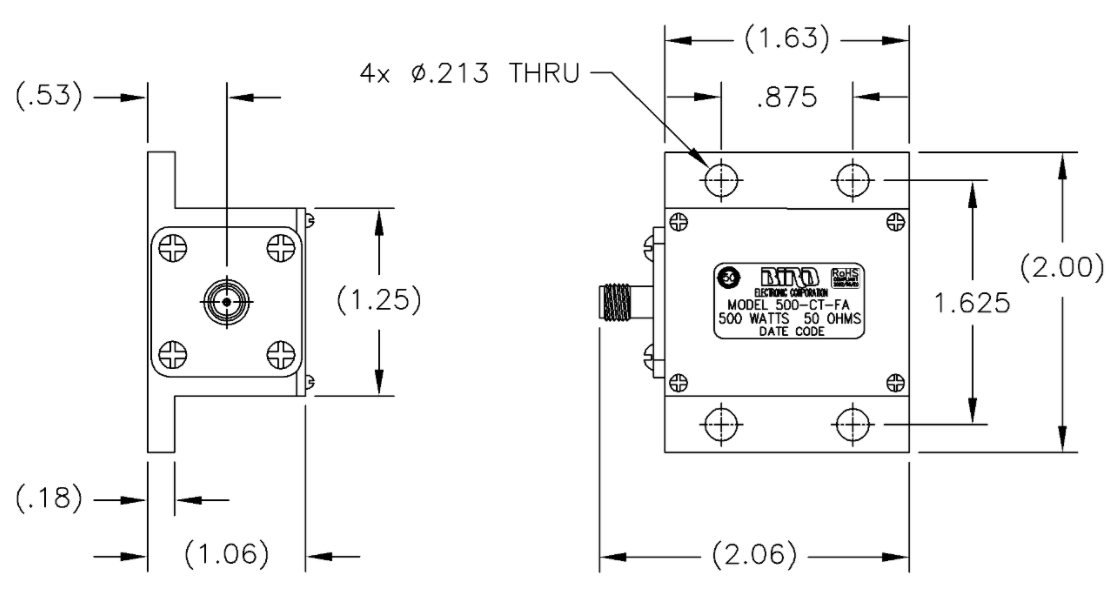

For the 500-CT-FA:

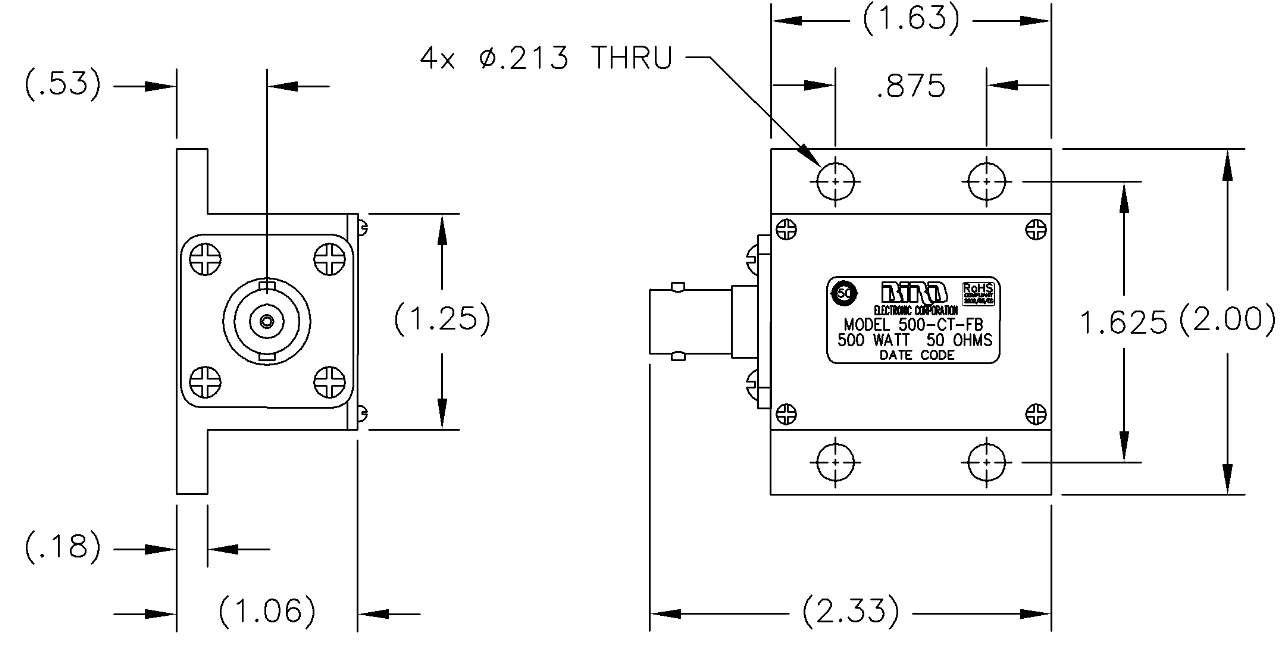

For the 500-CT-FB:

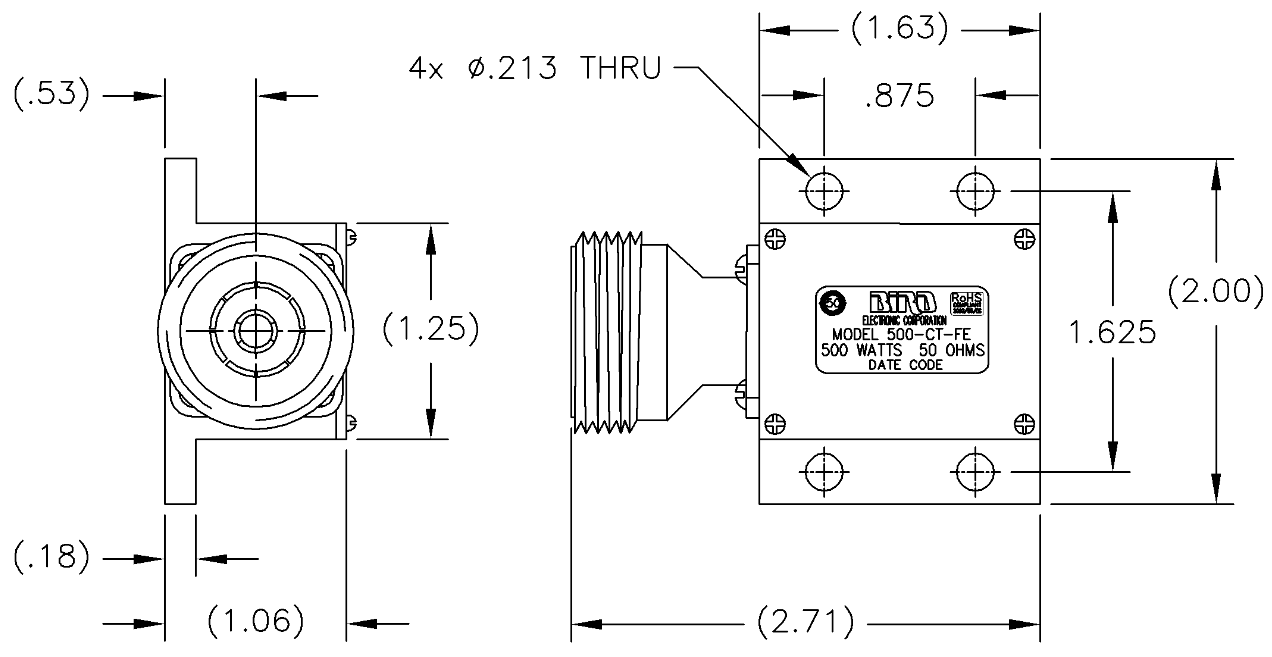

For the 500-CT-FE:

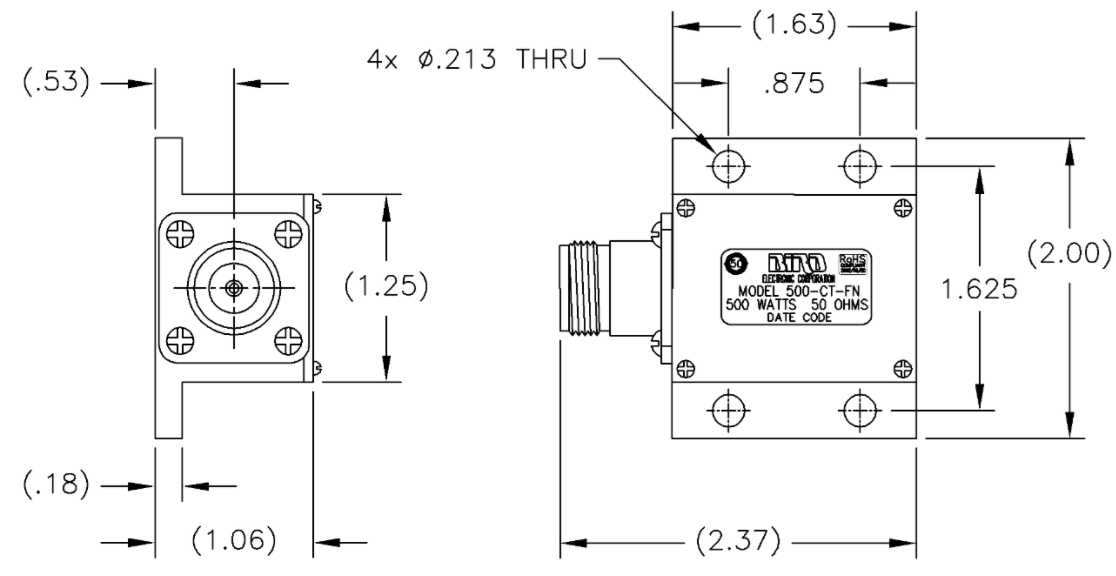

For the 500-CT-FN:
For the 500-CT-FT:

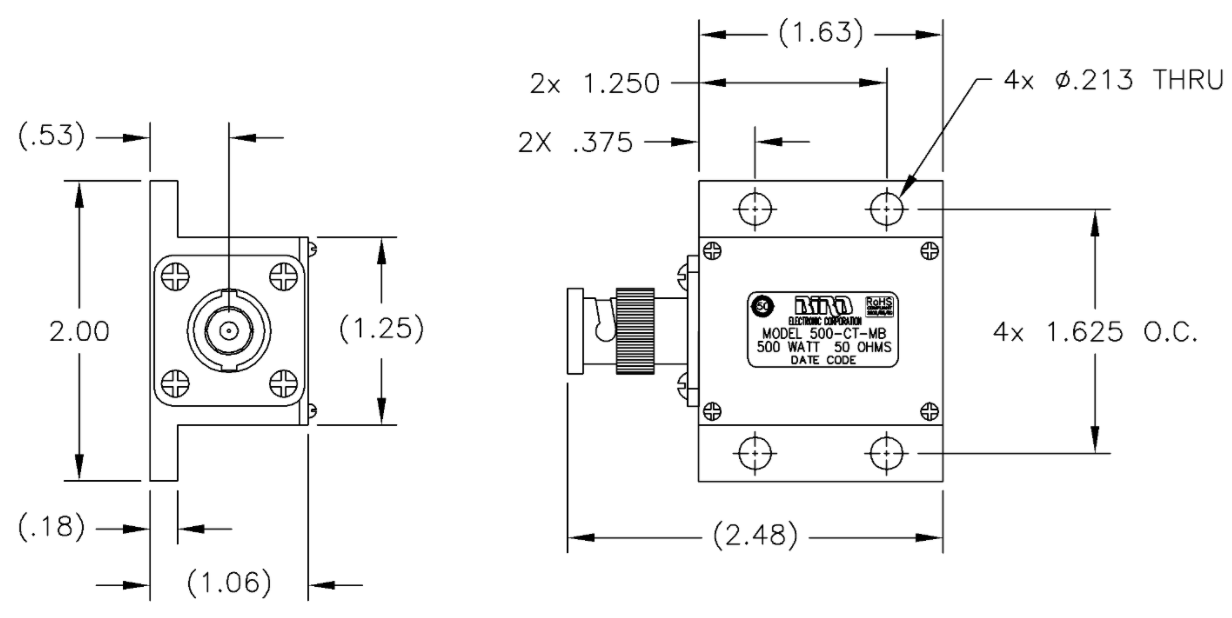

For the 500-CT-MB:

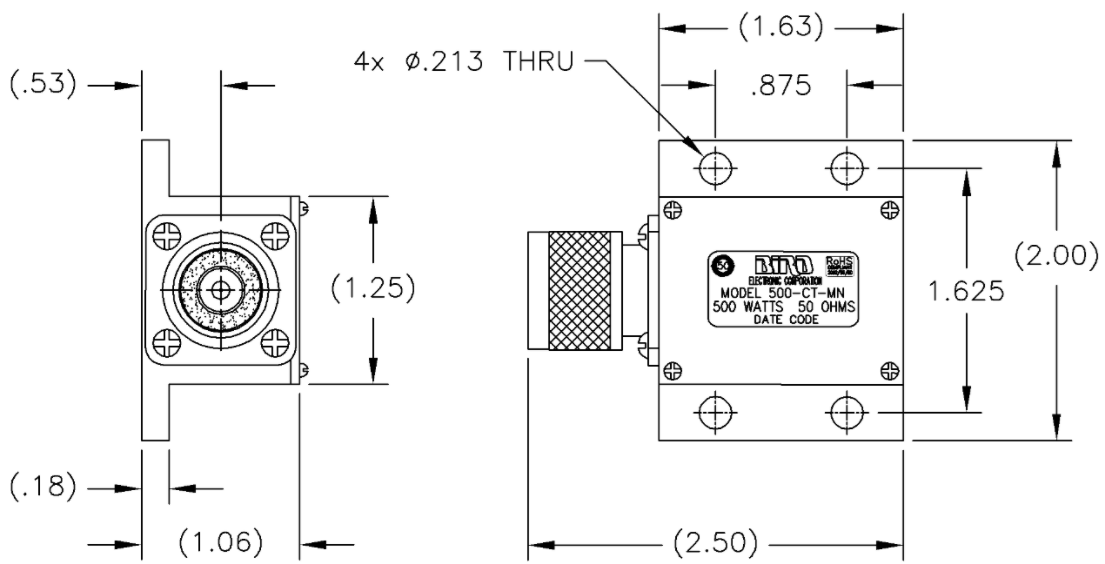

For the 500-CT-MN:
