500-WT Series Loads Technical Information

Specifications:

• Power Rating:
  • 500 W @ 25° C ambient
  • Derated linearly to 50 W @ 125° C
• Peak Power: 2.5 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average power rating
• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz at 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +125° C
• Operating Position: Standoffs down
• Finish: Black Anodized

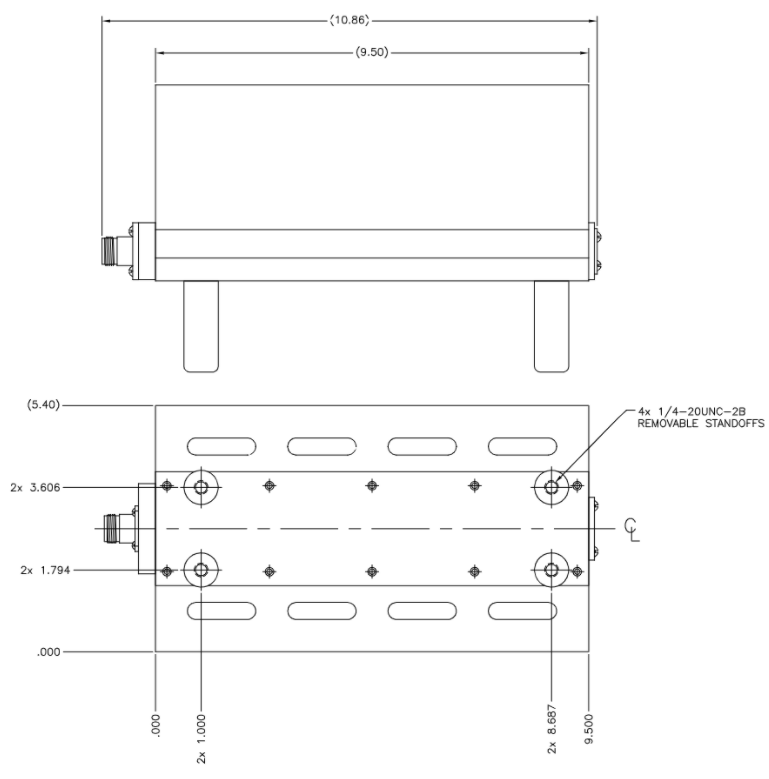

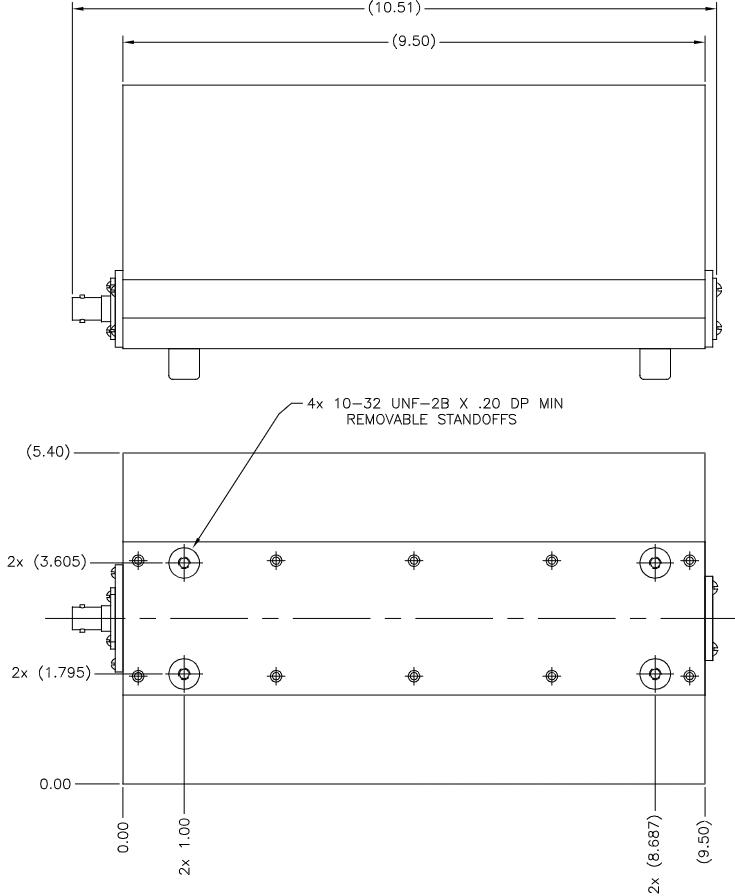

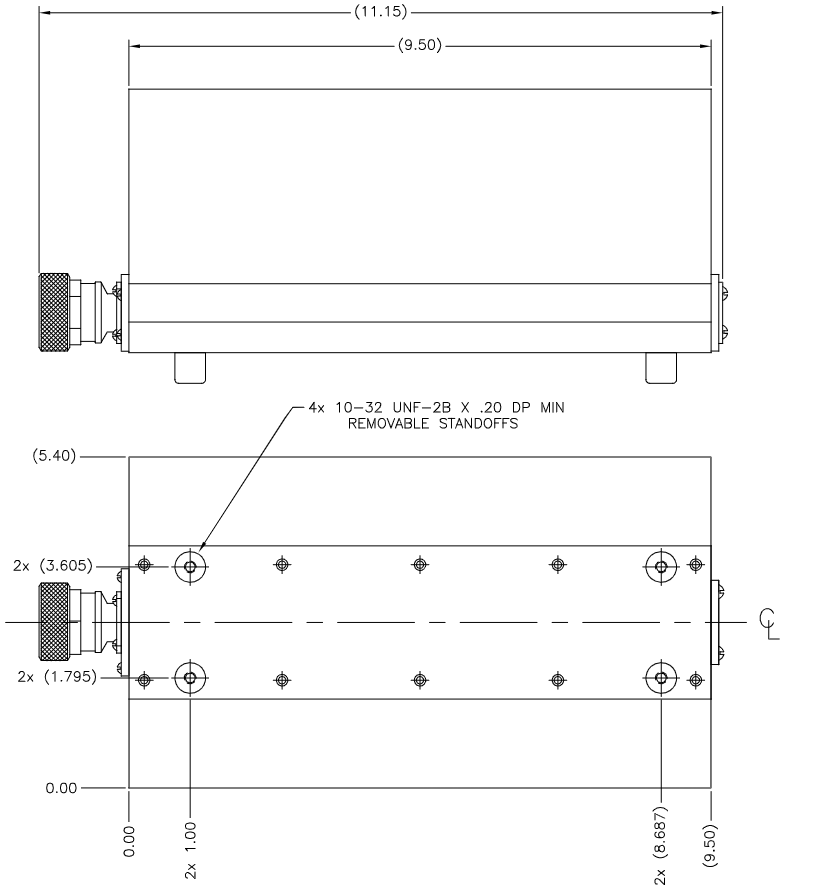

• Nominal Size: 1.63" x 1.25" x 1.06" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 7.8 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

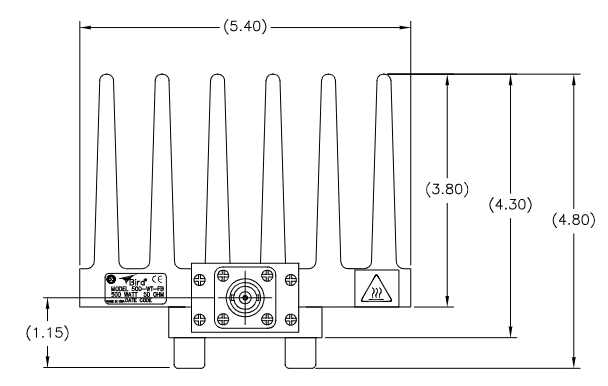

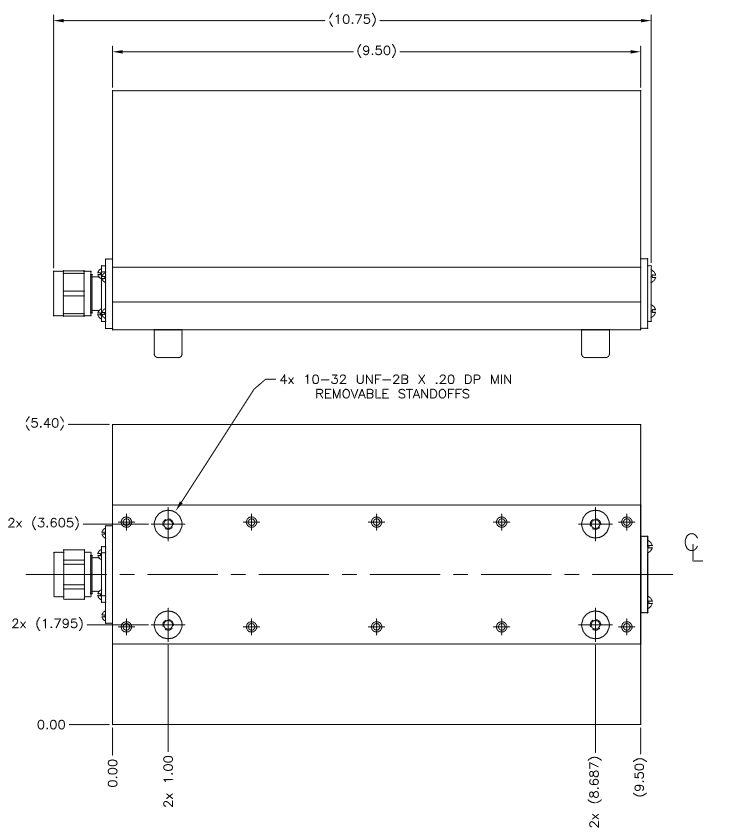

For the 500-WT-FB:

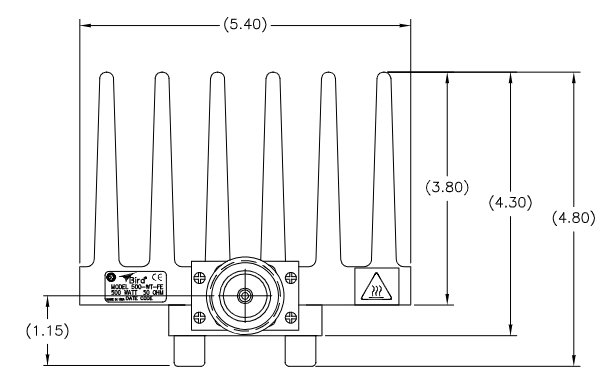

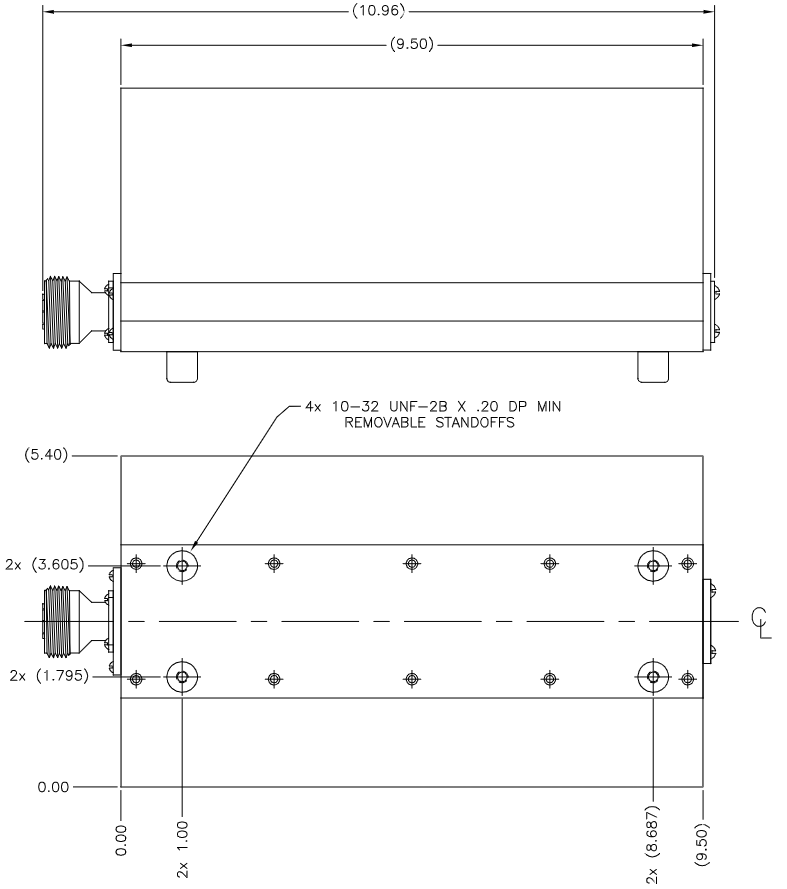

For the 500-WT-FE:

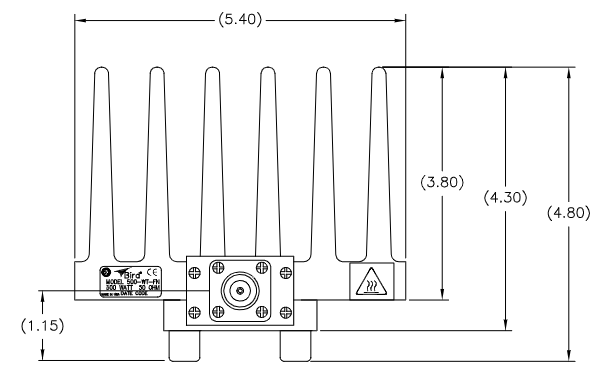

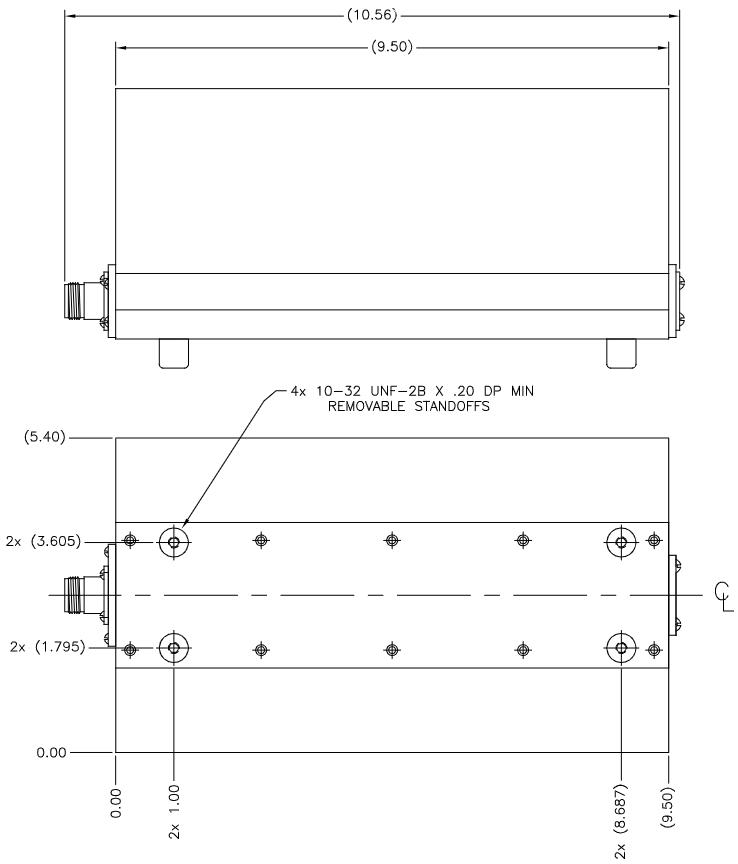

For the 500-WT-FN:

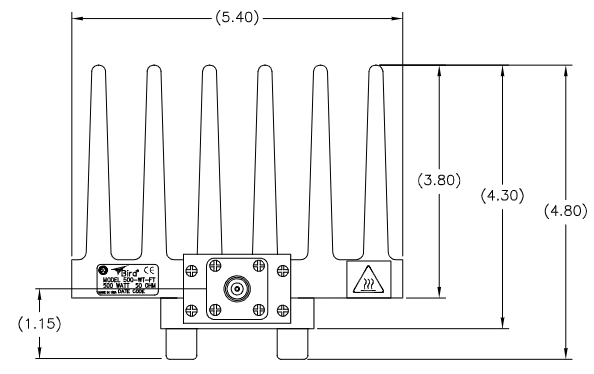

For the 500-WT-FT:

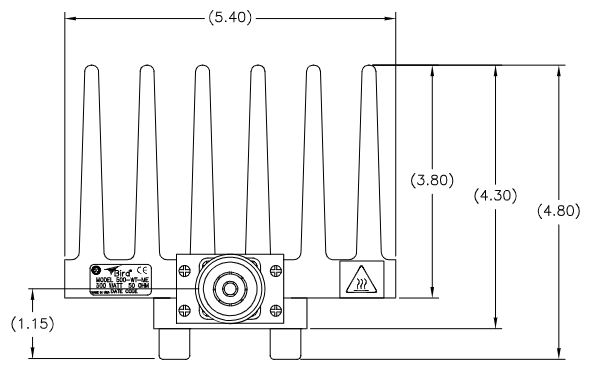

For the 500-WT-ME:

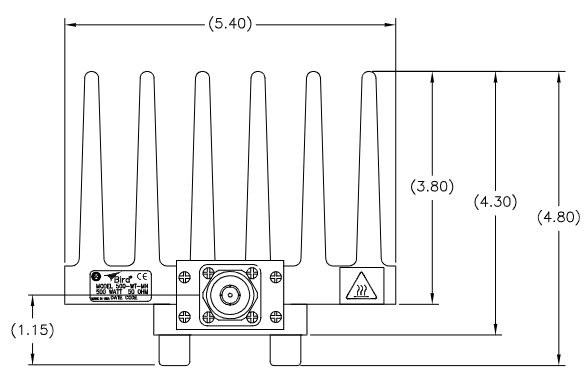

For the 500-WT-MN:

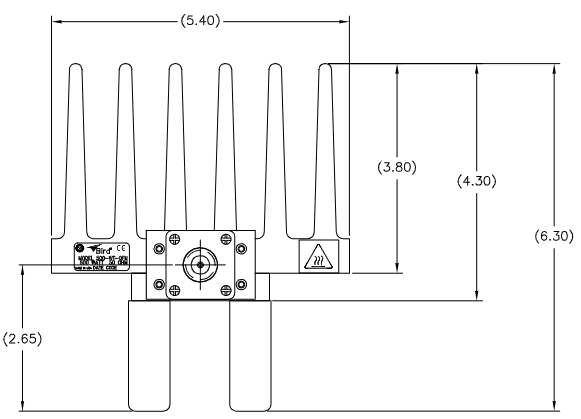

For the 500-WT-QFN:
