1000-T Series Loads Technical Information

Specifications:

• Power Rating:
  • 1000 W @ 25° C Ambient
  • Derated linearly to 50 W @ 125° C
• Peak Power: 3.0 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average power rating
• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.15:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -45° C to +40° C
• Operating Temperature Range: -45° C to +125° C
• Operating Position: Standoffs down
• Finish: Black Anodized
• Nominal Size: 12.3" x 9.6" x 12.8" (for specifics, see images below)
• Weight: Approx. 21.5 LBS

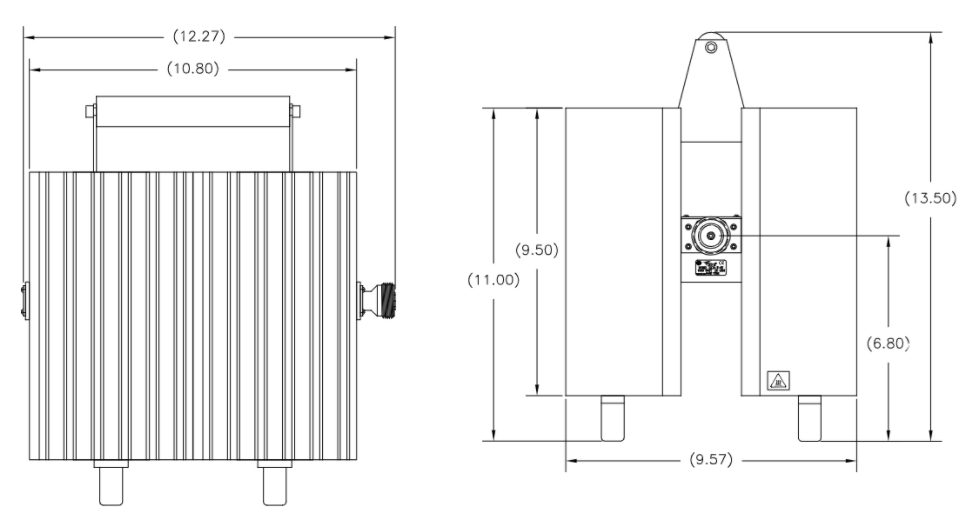

For the 1000-T-FE:

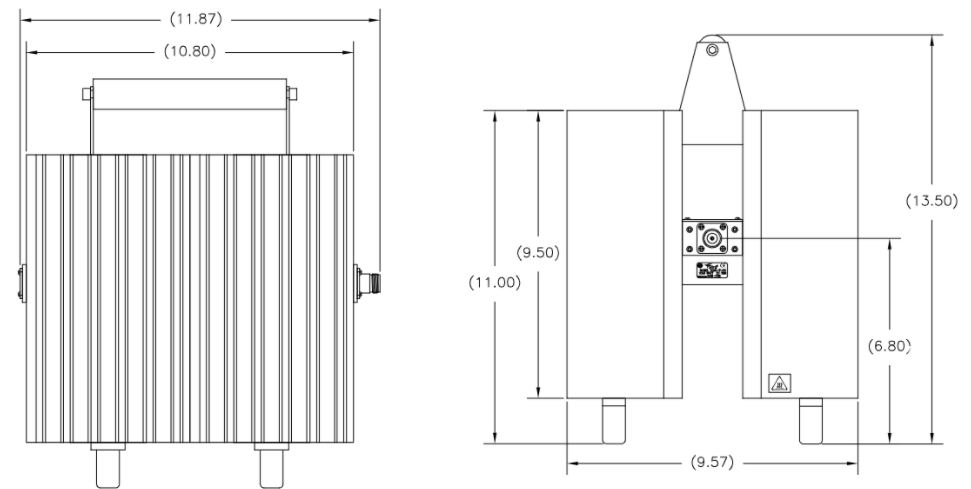

For the 1000-T-FN:

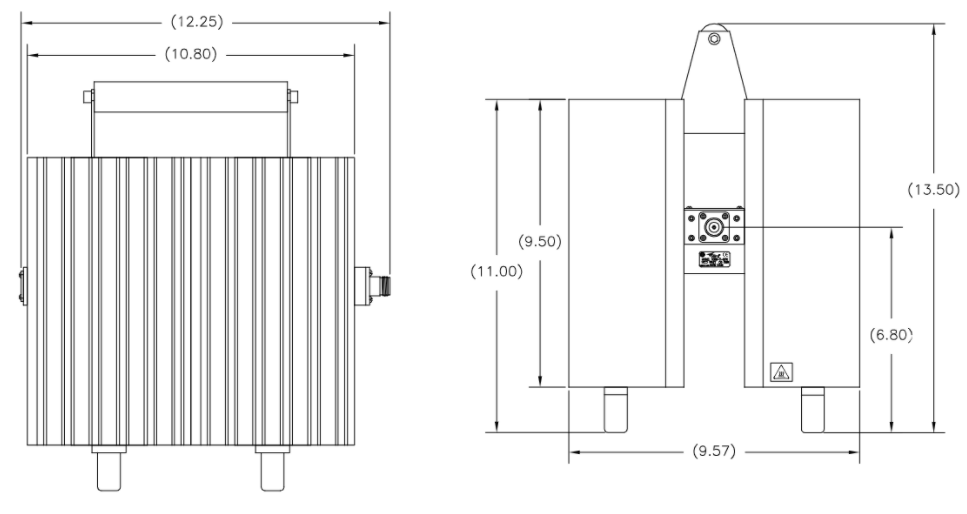

For the 1000-T-FT:

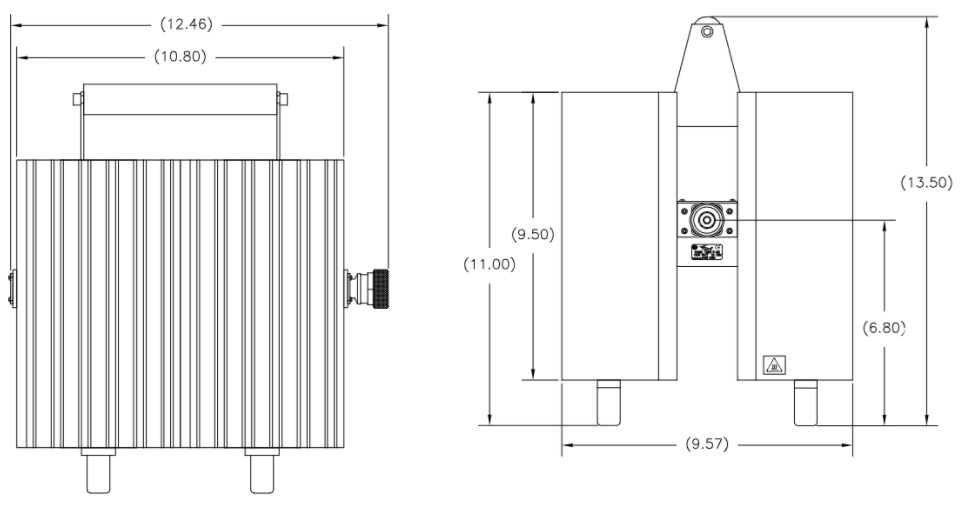

For the 1000-T-ME:

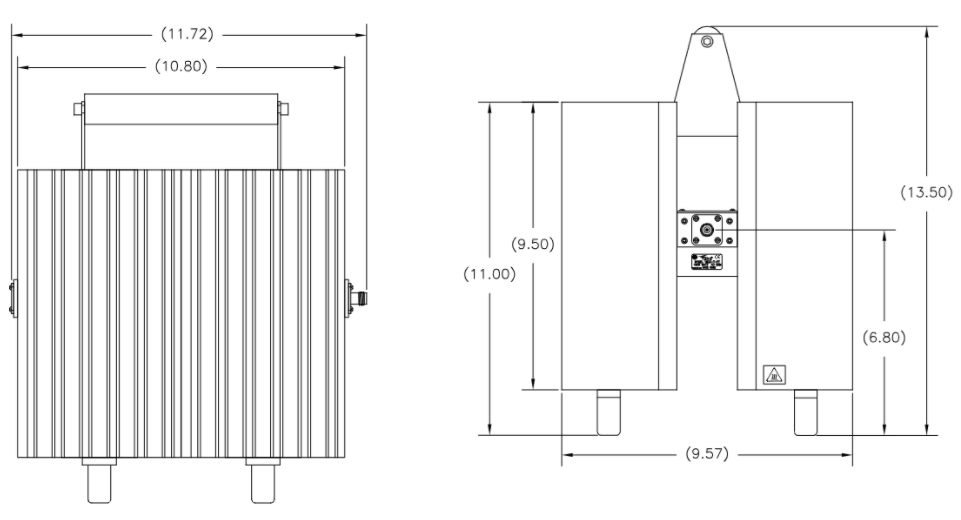

For the 1000-T-MN:

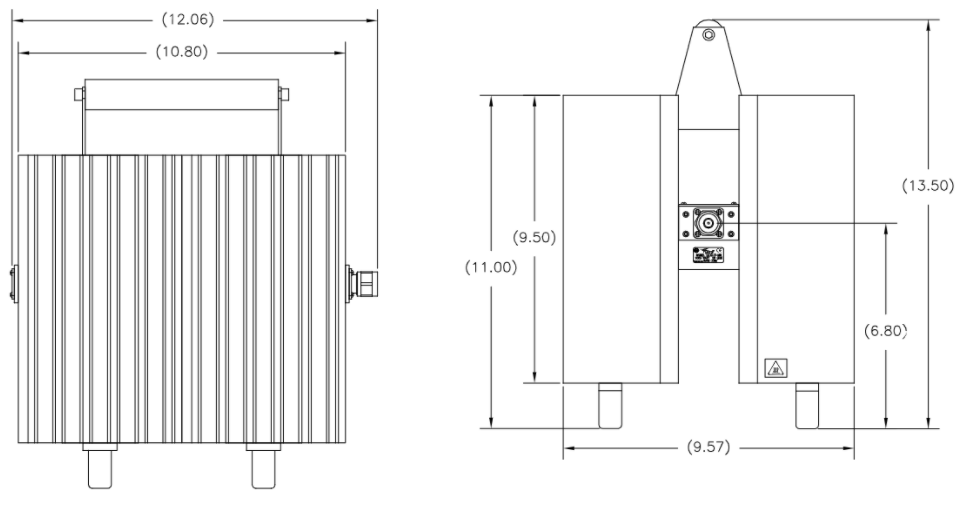

For the 1000-T-QFN:
