1500-WT Series Loads Technical Information

Specifications:

• Power Rating:
  • 1500 W AVG
  • 4 kW MAX
  • 210 CFM air flow @ 25° C
• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Operating Position: Horizontally (standoffs down)
• Finish: Black Anodized Aluminum

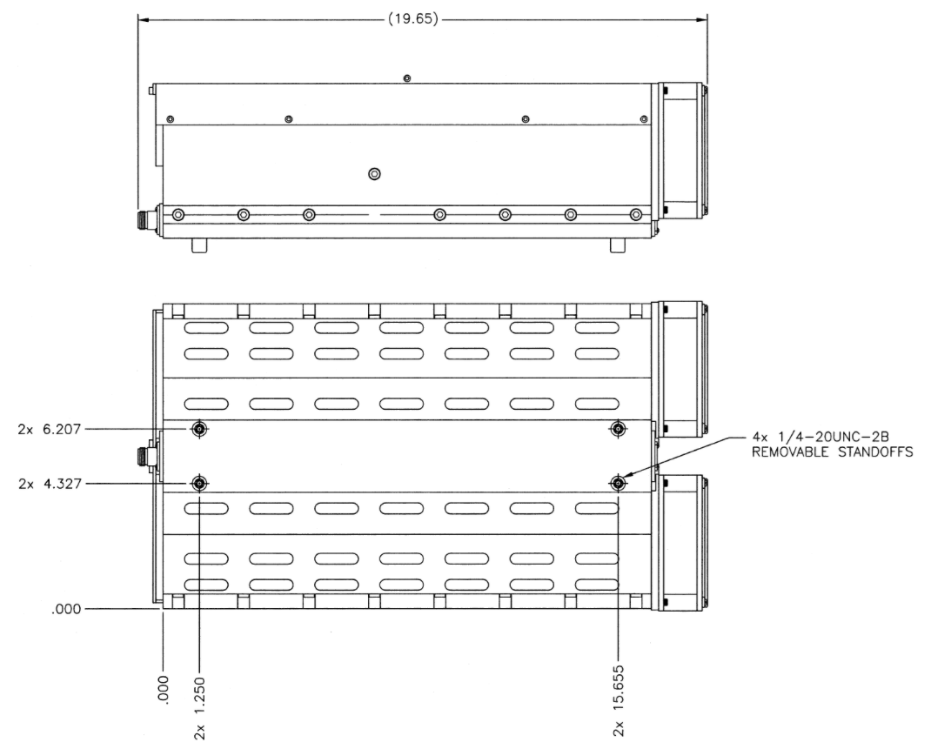

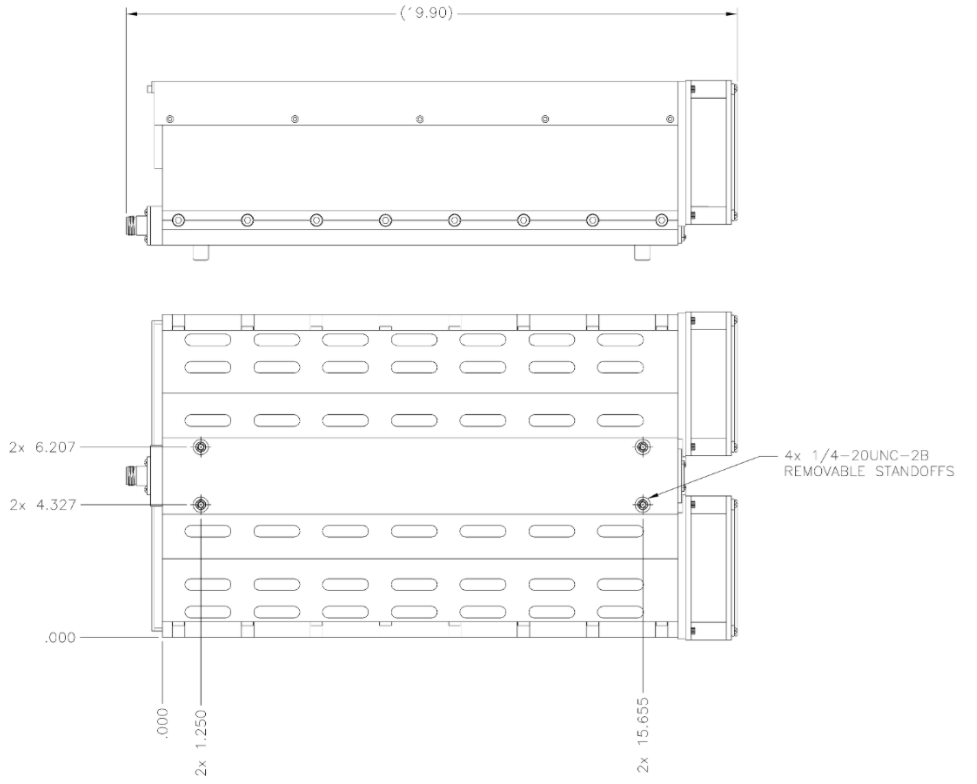

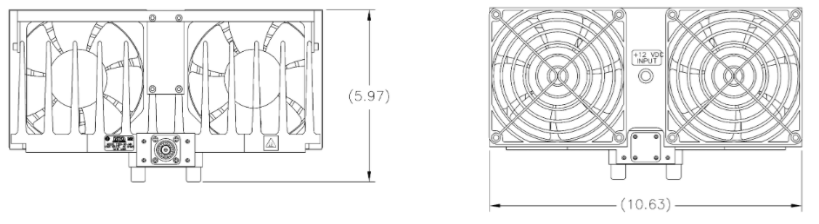

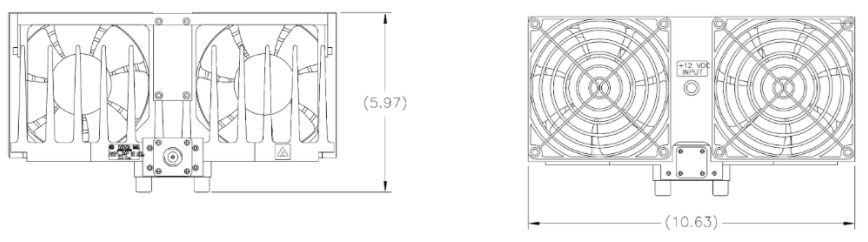

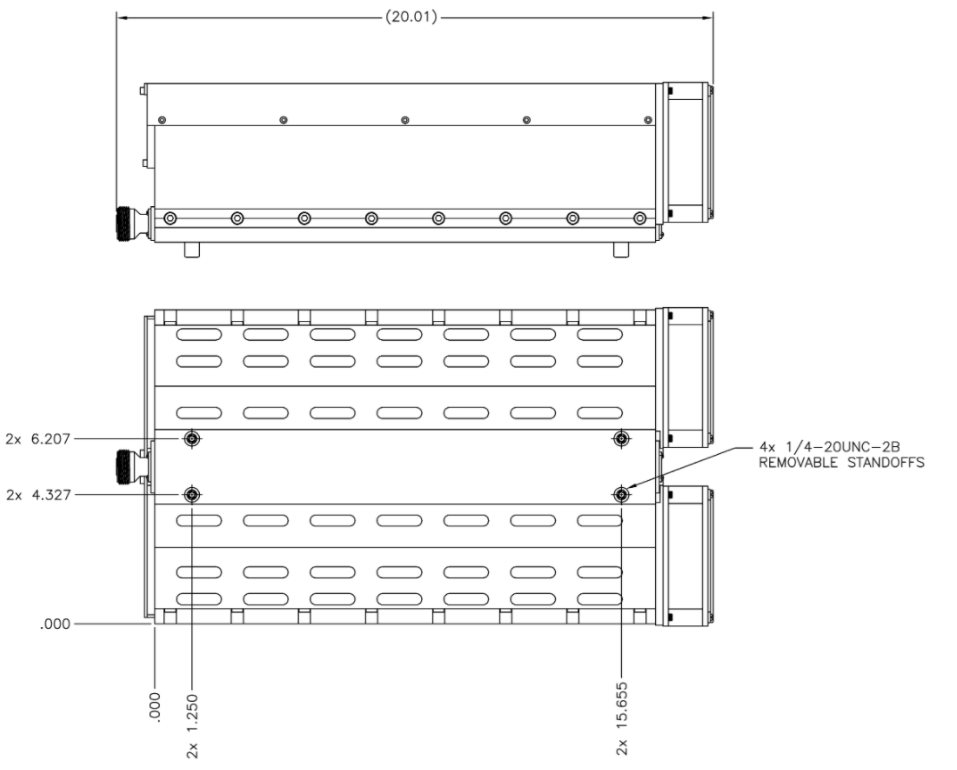

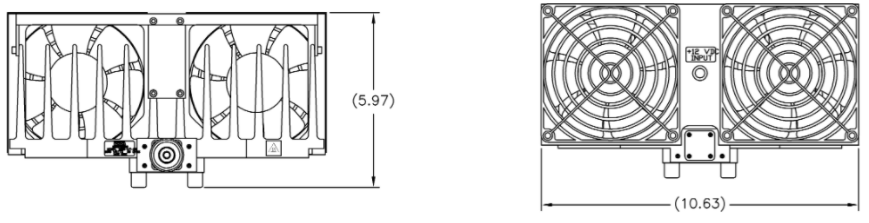

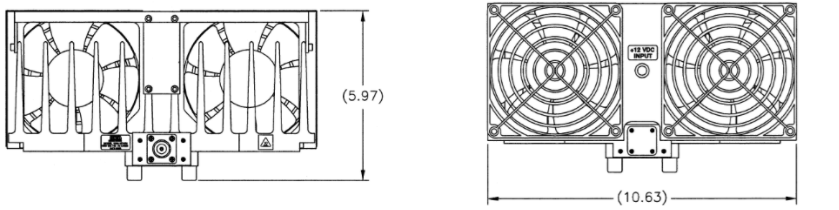

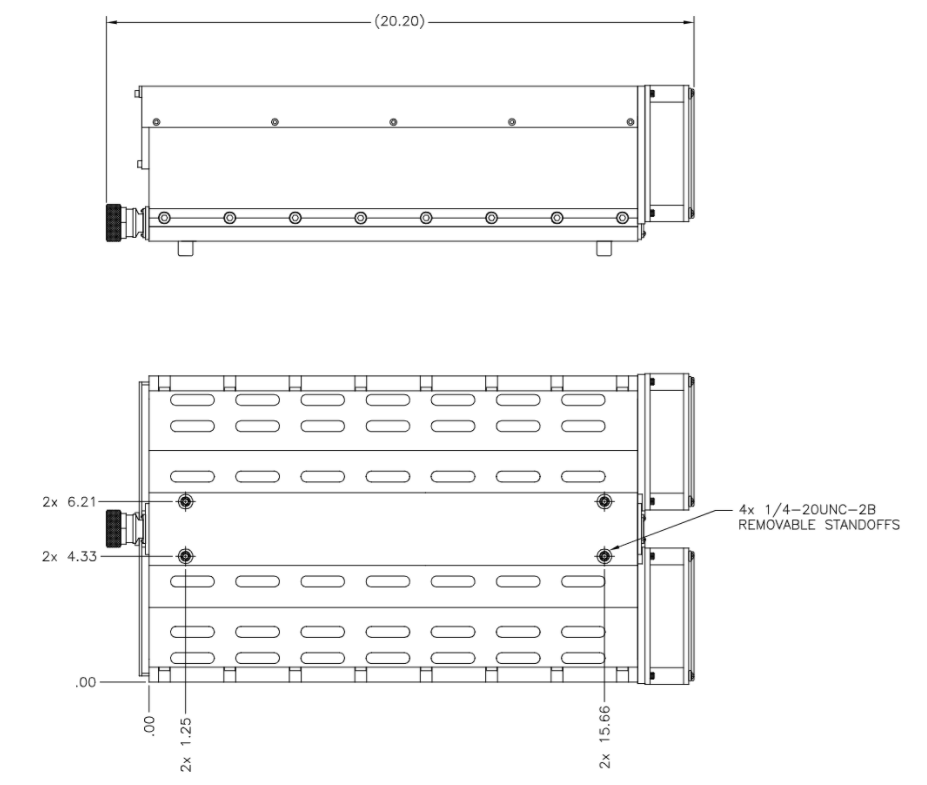

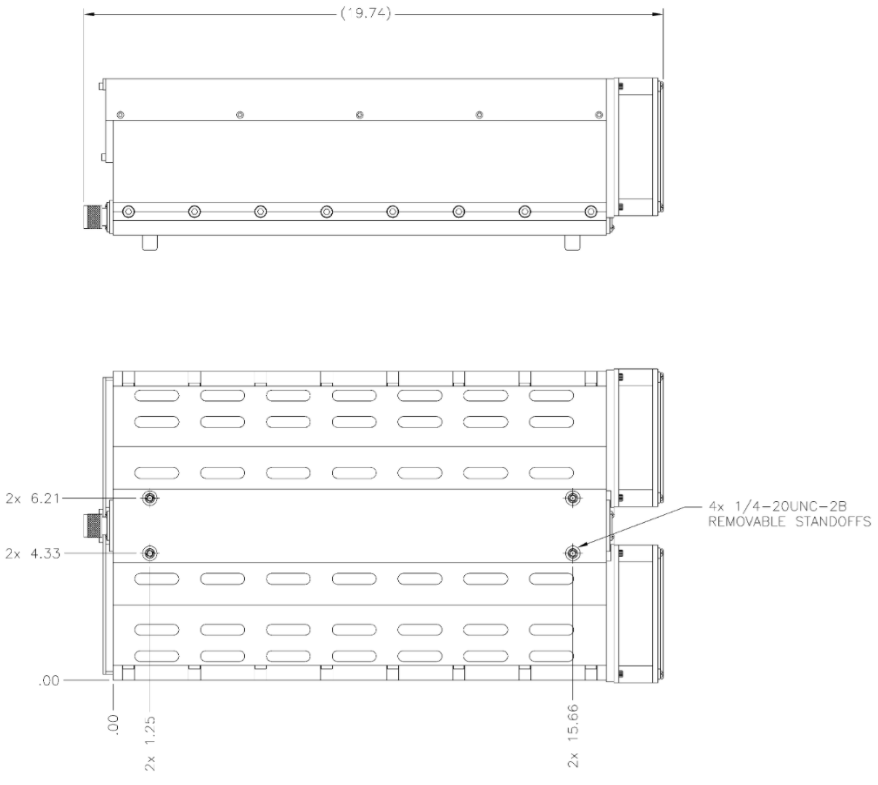

• Nominal Size: 20" x 10.6" x 6" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 30 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 1500-WT-FE:

• Connector: IEC 7/16 DIN, Female

For the 1500-WT-FN:

• Connector: Type N, Female

For the 1500-WT-ME:

• Connector: IEC 7/16 DIN, Male

For the 1500-WT-MN:

• Connector: Type N, Male

For the 1500-WT-QFN:

• Connector: QC Type N, Female
