8860 Series Loads Technical Information

Specifications:

• Power Rating:
  • 1500 WATTS CW AVG
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +45° C
• Cooling Method: Oil dielectric and convection currents
• Coolant: 1.5 gal. (5.68 liters) Silicone Oil
• Operating Position: Horizontal only, mounting brackets down
• Humidity: 95% noncondensing max
• Finish: Grey Powder Coat

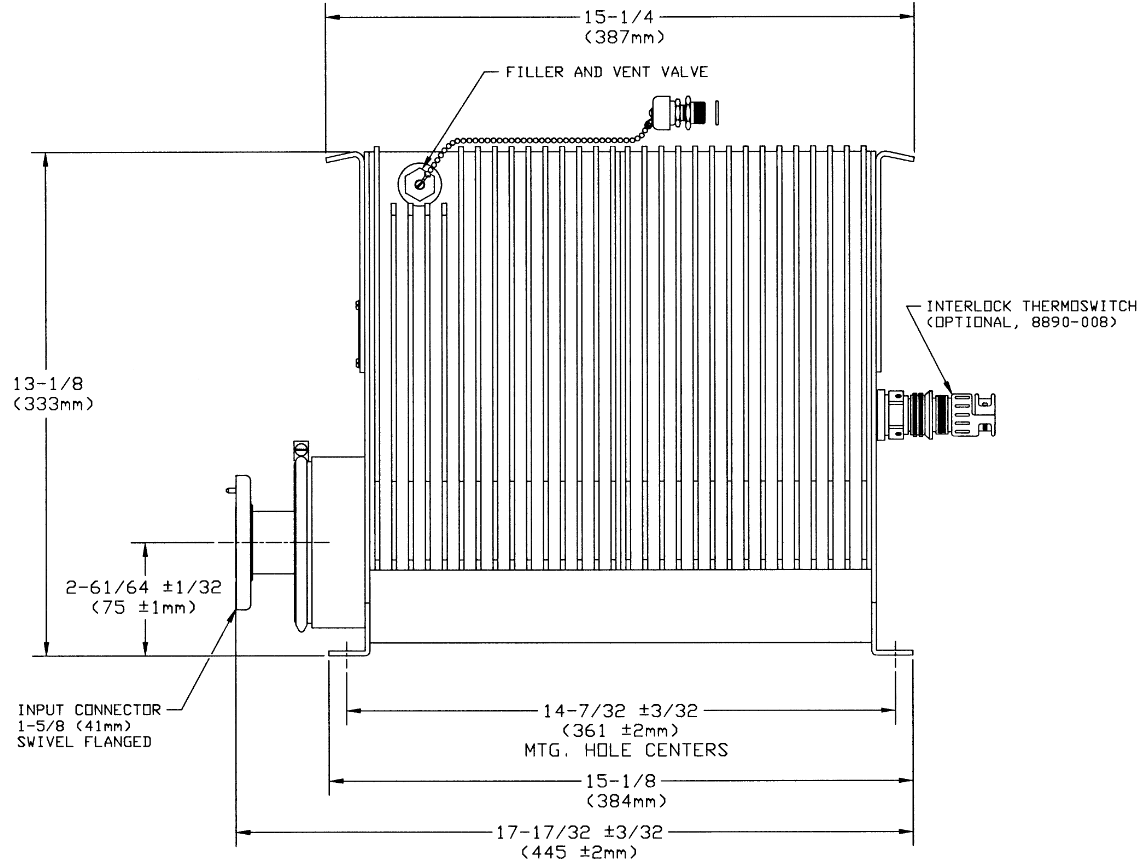

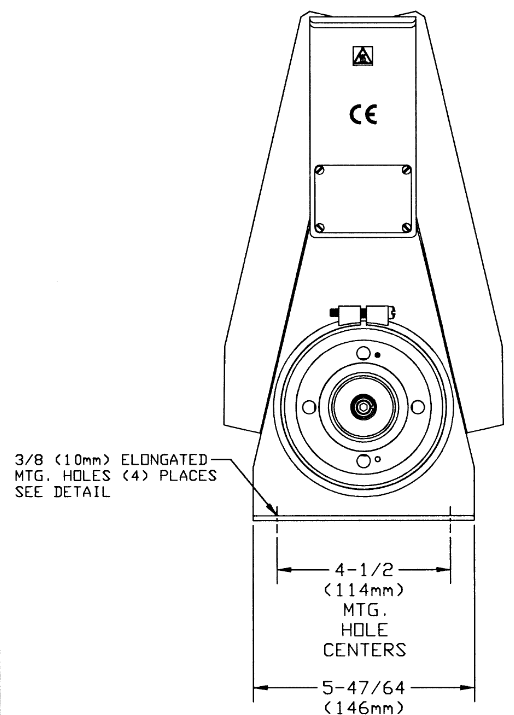

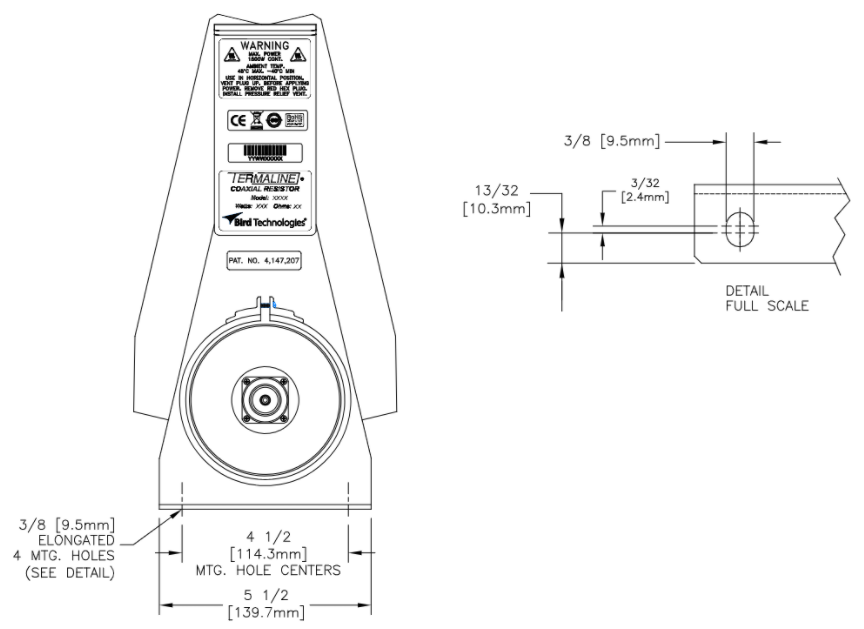

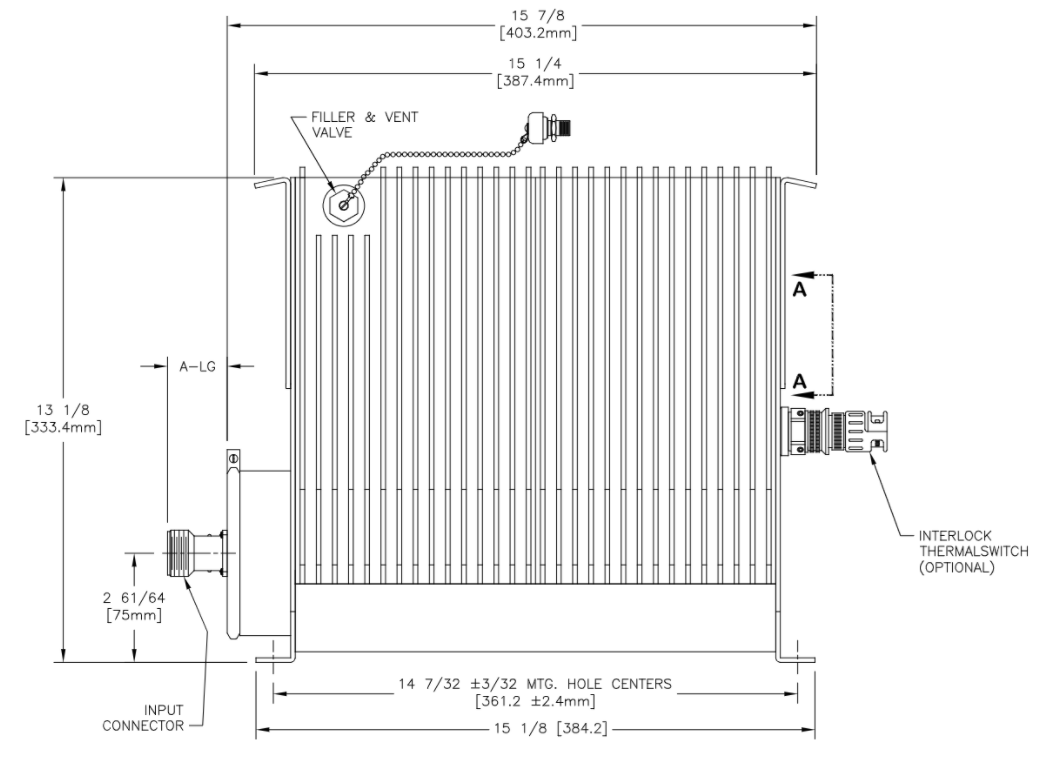

• Nominal Size: 17.5" x 7.5" x 13.125" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 27.8 LBS (12.6 kg)

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 8860:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.

For the 8861:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.

For the 8862:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.

For the 8862D:

• Frequency Range & VSWR:
  • 470 MHz to 860 MHz @ 1.065:1 MAX.

For the 8863:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.

For the 8864:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.
