8890-315 and 8890-320 Series Loads Technical Information

Specifications:

• Power Rating:
  • 5000 W with blower on
  • 1250 W with blower off
• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2 GHz @ 1.25:1 MAX.
  • 2 GHz to 2.4 GHz @ 1.30:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range:
  • -40° C to +45° C @ 60 Hz
  • -40° C to +40° C @ 50 Hz
• Cooling Method: Oil dielectric and convection currents
• Coolant: 2.9 gal. (11 liters) Silicone Oil
• Operating Position: Horizontal only with vent plug up
• Finish: Grey Powder Coat

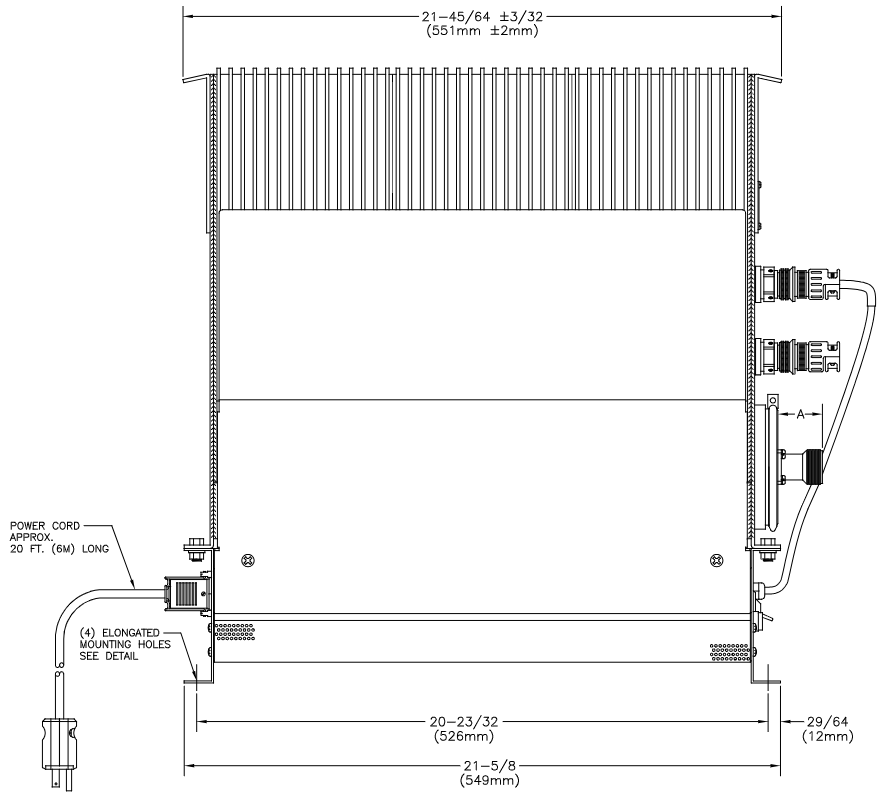

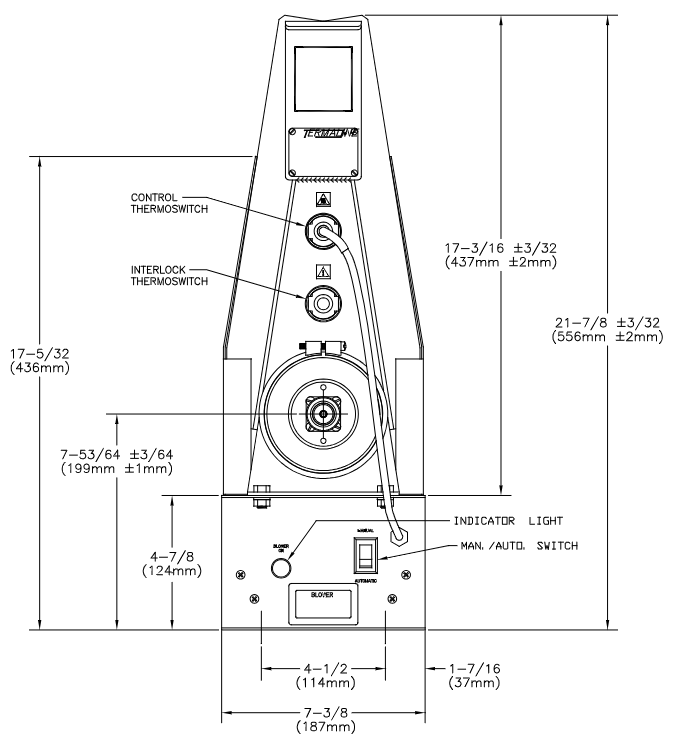

• Nominal Size: 21.75" x 7.5" x 17.25" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 59 LBS (26.8 kg)

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 8890-315, 8890-320, 8891-315, 8891-320, 8892-315, 8892-320, 8895-315, 8895-320, 8897-315, and 8897-320:
