8920 Series Loads Technical Information

Specifications:

• Power Rating:
  • 5000 WATTS CW
• Peak Power Rating:
  • 150 kW MAX. for pulse width 1 μS
• Impedance: 50 Ohms (Nominal)
• Ambient Temperature Range: -40° C to +45° C
• Coolant: 6.7 gal (23 liters) Silicone Oil
• Operating Position: Horizontal only
• Finish: Grey Powder Coat

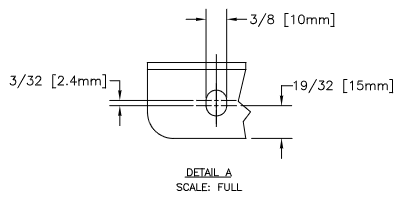

• Nominal Size: 29" x 9-1/2" x 26-53/64" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 119 LBS (54 kg)

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 8921:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.

For the 8922:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.

For the 8922D:

• Frequency Range & VSWR:
  • 470 MHz to 860 MHz @ 1.065:1 MAX.

For the 8926:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.

For the 8926D:

• Frequency Range & VSWR:
  • 470 MHz to 860 MHz @ 1.065:1 MAX.

For the 8927:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.

For the 8927D:

• Frequency Range & VSWR:
  • 470 MHz to 860 MHz @ 1.065:1 MAX.
