8730 Series Loads Technical Information

Specifications:

• Power Rating:
  • 10 kW AVG.
• Impedance: 50 Ohms (Nominal)
• Water Temperature Range: +5° C to +60° C
• Coolant:
  • Distilled Water (< 1KHz)
  • Distilled or Potable Water (>1KHz)
• Flow Rate:
  • Minimum: 4 gpm (15.2 liters/min) @ 5° C to 6 gpm (22.7 liters/min) @ 60° C
  • Maximum: 12 gpm (45.5 liters)
• Max Water Pressure: 80 PSI (5.52 bar)
• Operating Position: Any
• Finish: Black Powder Coat

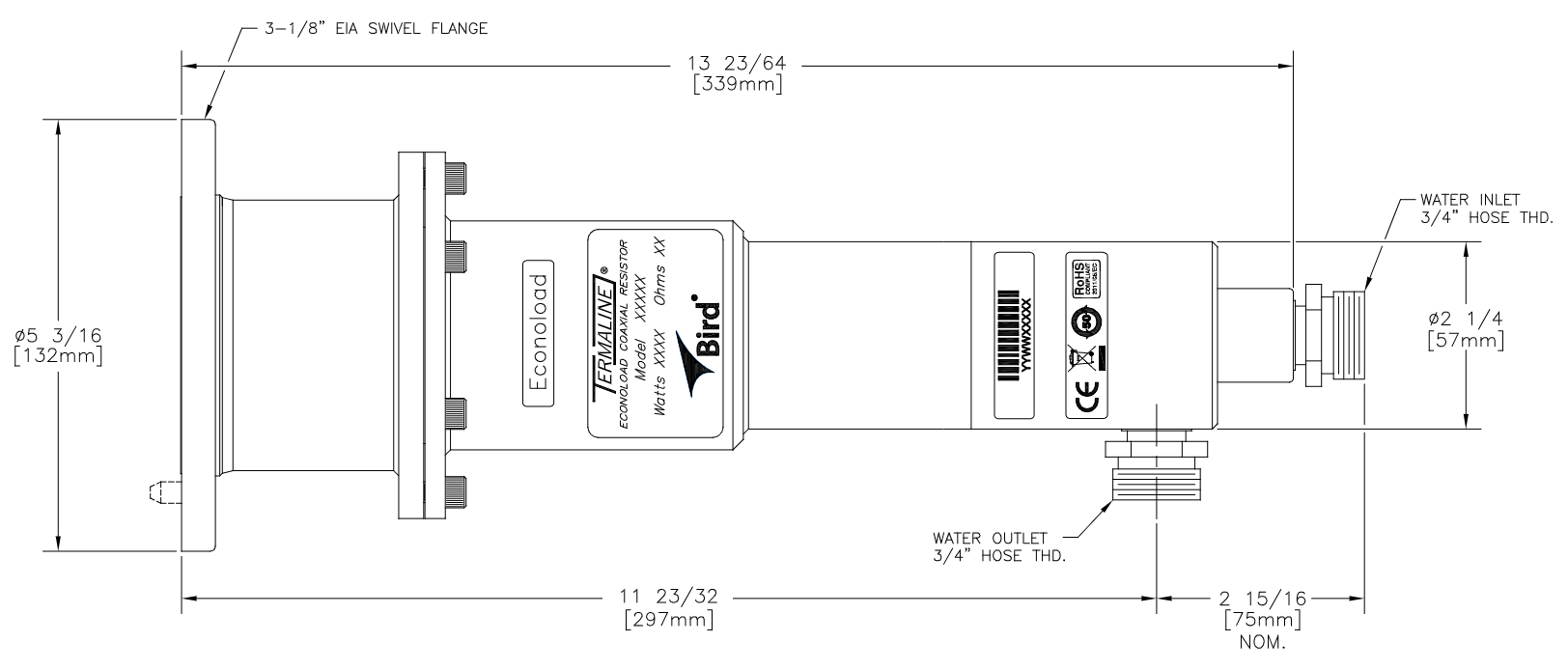

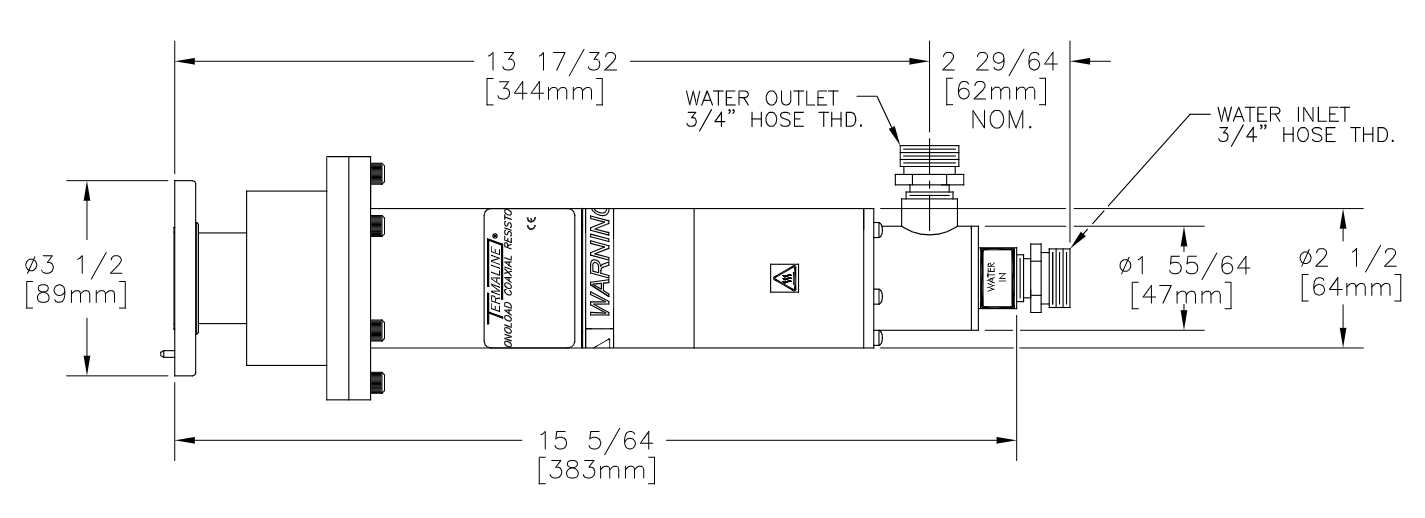

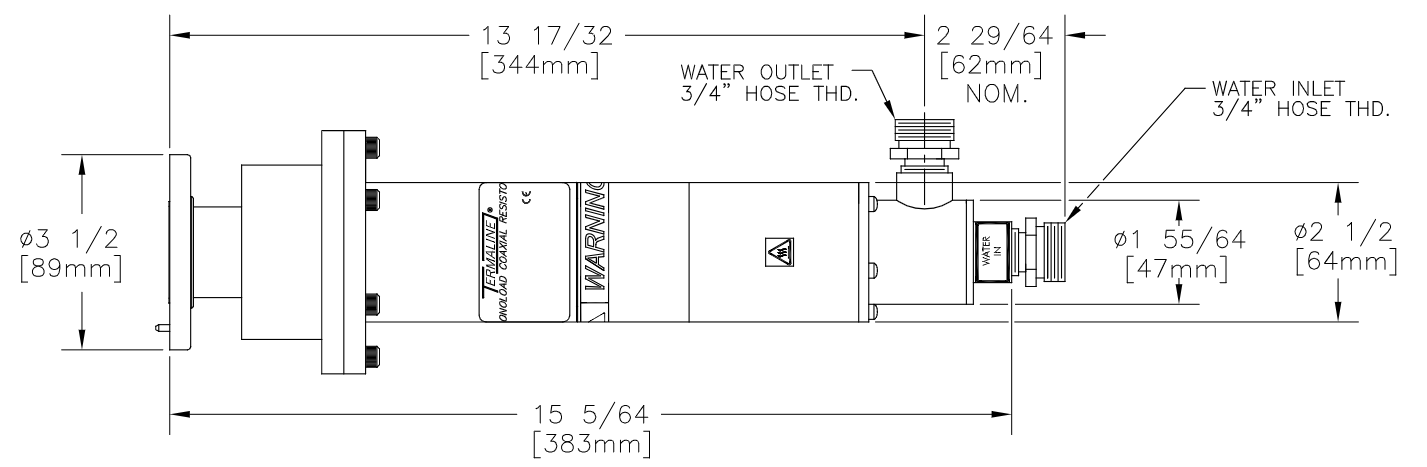

• Nominal Size: 2.5" x 12" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 8 LBS (3.6 kg)

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

For the 8730A:

• Frequency Range & VSWR:
  • DC to 1 GHz @ 1.10:1 MAX.
• Connector: 1-5/8" EIA flanged

For the 8731:

• Frequency Range & VSWR:
  • 1 kHz to 1 GHz @ 1.10:1 MAX.
• Connector: 3-1/8" EIA flanged

For the 8738A:

• Frequency Range & VSWR:
  • 1 kHz to 1 GHz @ 1.10:1 MAX.
• Connector: 3-1/8" unflanged
