Specifications:
- Power Rating:
- 25 kW continuous
- Frequency Range & VSWR:
- 1 kHz to 900 MHz @ 1.10:1 MAX.
- Impedance: 50 Ohms (Nominal)
- Ambient Temperature Range:
- With 100% distilled water coolant: +5° C to +45° C
- With 35% ethylene glycol as coolant: -20° C to +35° C
- Coolant: 2.25 gal. (8.5 liters) distilled water and up to 35% ethylene glycol
- Flow Rate: 6 gpm (22.7 liters/min) regardless of temperature
- Operating Position: Horizontal only
- Finish: Grey Powder Coat

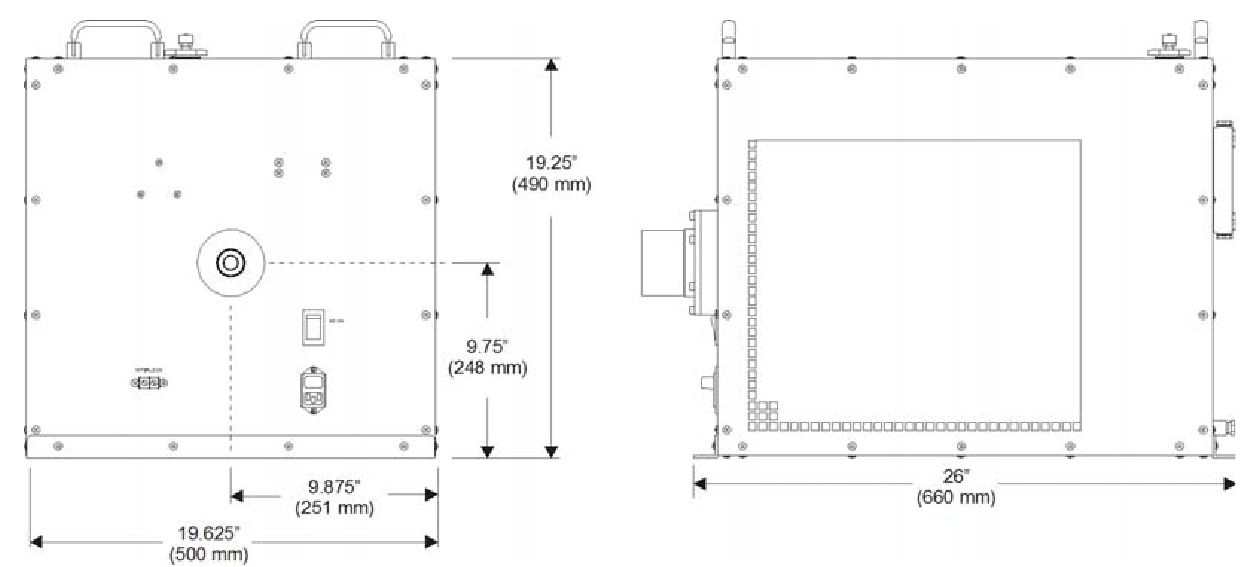

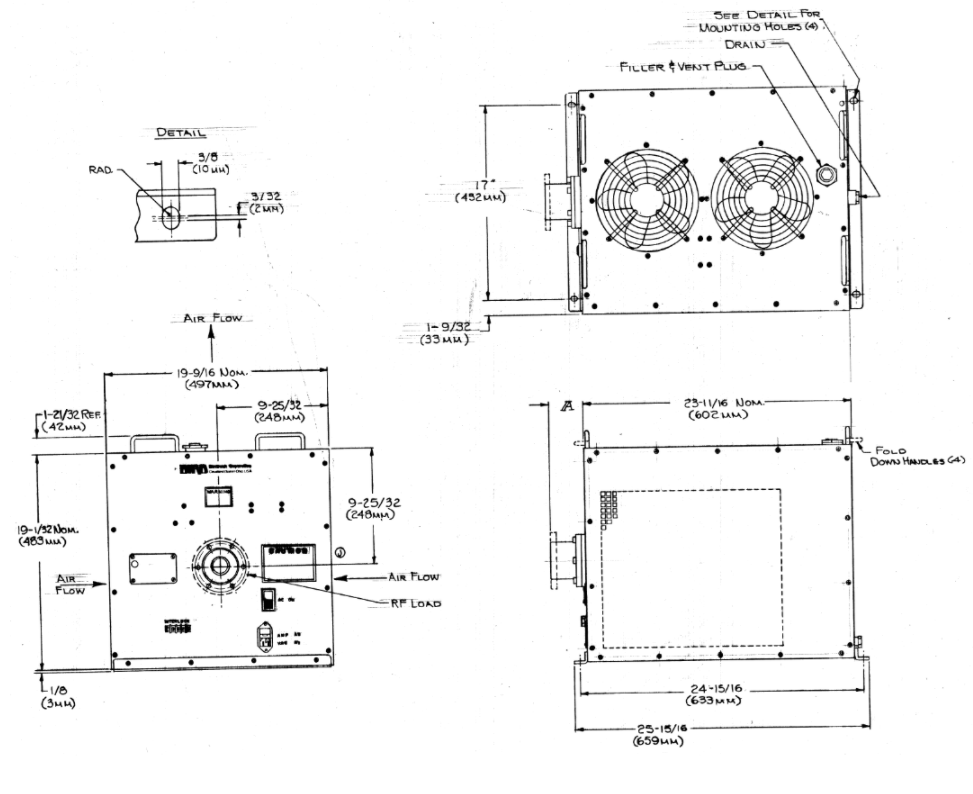

- Nominal Size: 26" x 19-5/8" x 19-1/4" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 154 LBS (70 kg)
More information on the interlock control circuit here
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
For the 8645B:
- Connector: 3-1/8" EIA flanged
For the 8646B:
- Connector: 3-1/8" unflanged
