8750 Series Loads Technical Information

Specifications:

• Power Rating:
  • 30 kW continuous
• Frequency Range & VSWR:
  • 1 kHz to 900 MHz @ 1.10:1 MAX.
• Impedance: 50 Ohms (Nominal)
• Water Temperature Range: +5° C to +60° C
• Coolant: potable or distilled water and up to 50% ethylene glycol
• Minimum Flow Rate: 7 gpm @ 5° C to 9 gpm @ 60° C
• Max Water Pressure: 80 PSI (5.52 bar)
• Operating Position: Any
• Finish: Black Powder Coat
• Nominal Size: 19.5" x 3.5" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 15.5 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

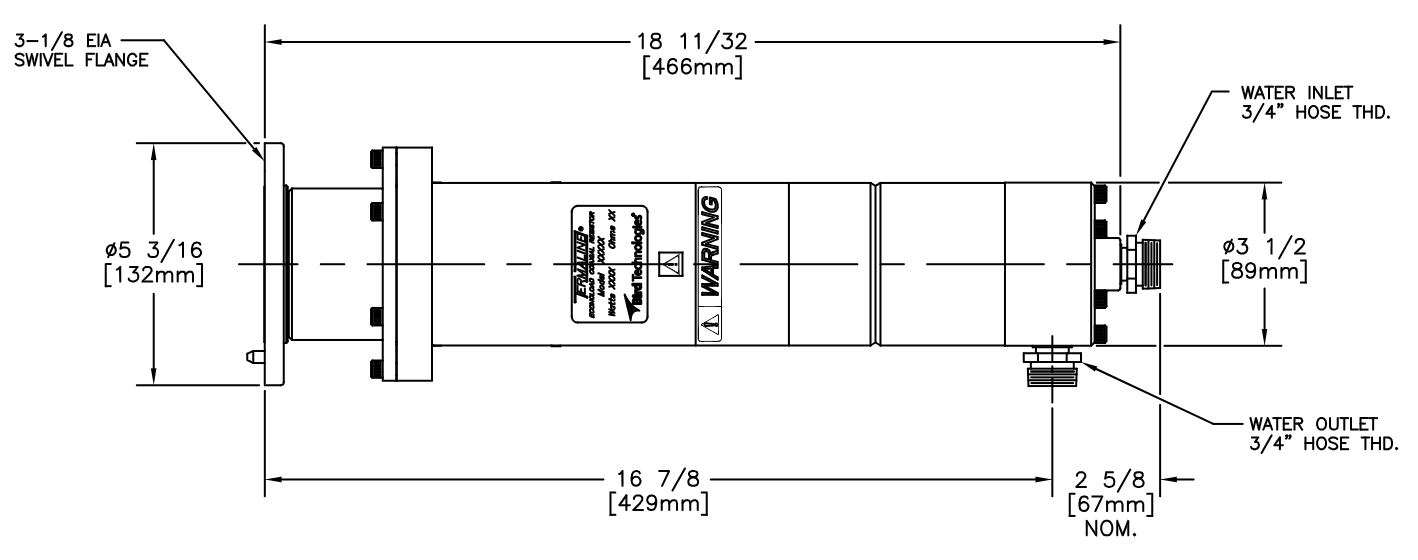

For the 8755:

• Connector: 3-1/8" EIA flanged

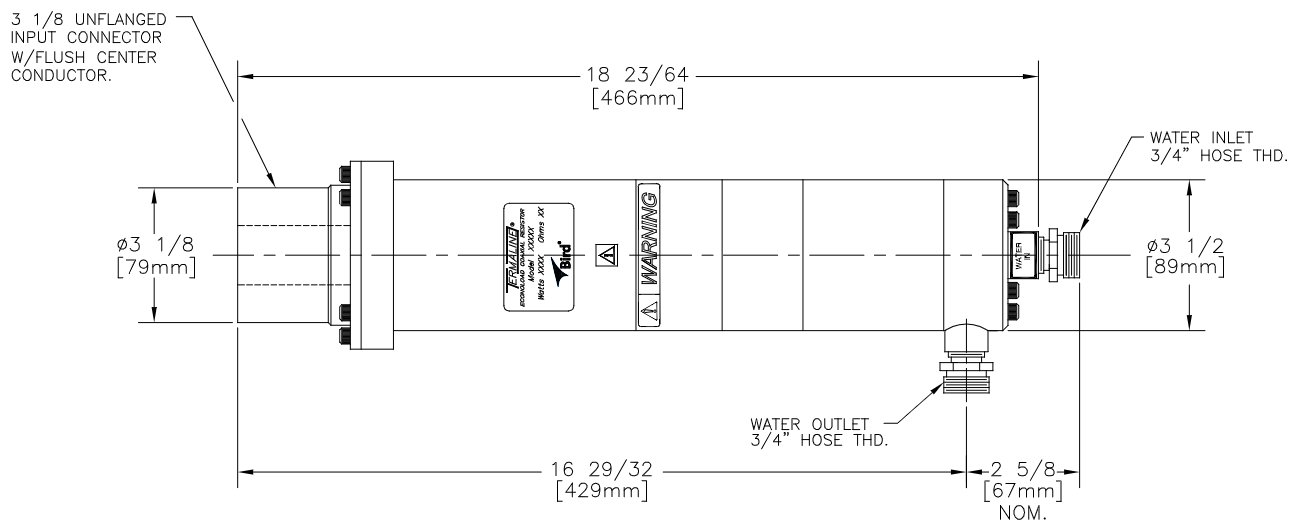

For the 8756:

• Connector: 3-1/8" unflanged
