2-A Series Attenuators Technical Information

Specifications:

• Power Rating: (bi-directional)
  • 2 W Continuous
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Position: Any

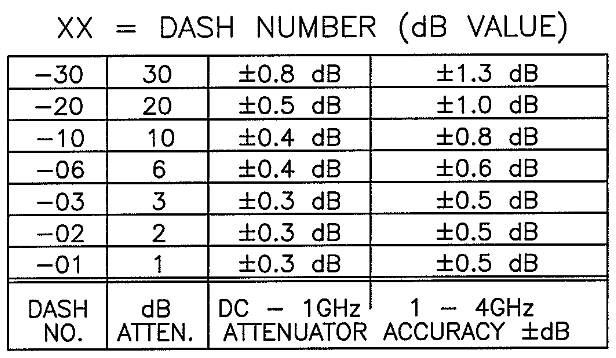

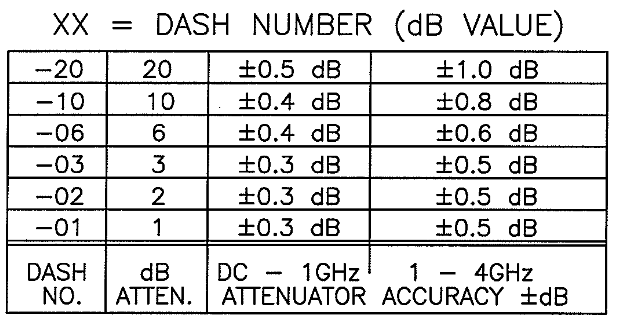

• Nominal Size: 2.1" x 0.7" (for specifics, see images below)
• Weight: Approx. 2.8 oz

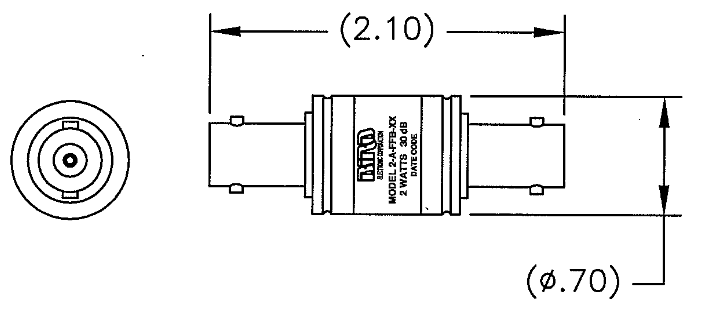

For the 2-A-FFB-XX:

• Ambient Temperature Range: -40° C to +40° C

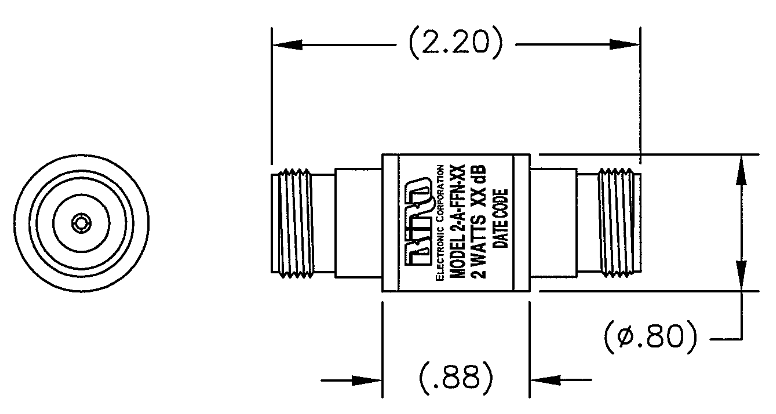

For the 2-A-FFN-XX:

• Ambient Temperature Range: -40° C to +45° C

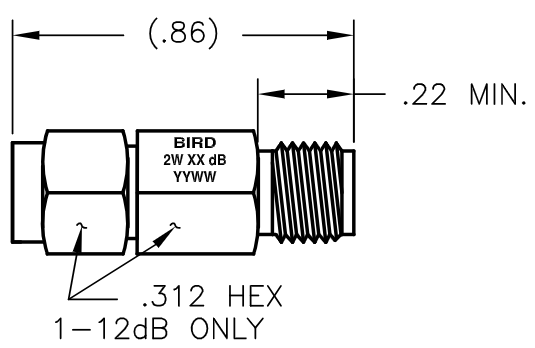

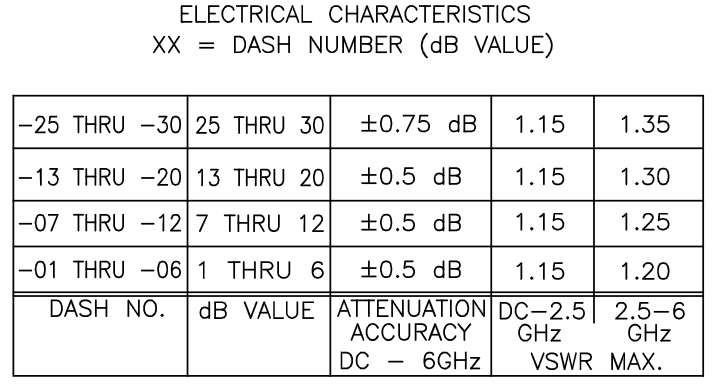

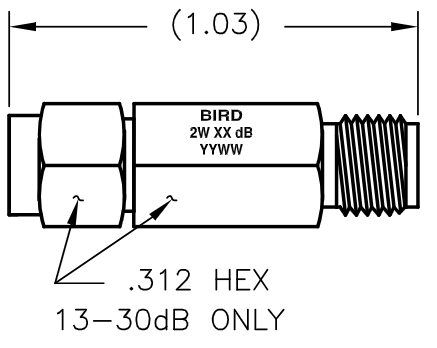

For the 2-A-MFA-XX:

• Power Rating:
  • 2 W @ 25° C
  • Derated linearly to 0.2 W @ 125° C
• Operating Temperature Range: -65° C to +125° C
