5-A Series Attenuators Technical Information

Specifications:

• Power Rating: (bi-directional)
  • 5 W Continuous
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Any
• Nominal Size: 2.1" x 0.7" (for specifics, see images below)
• Weight: Approx. 2.8 oz

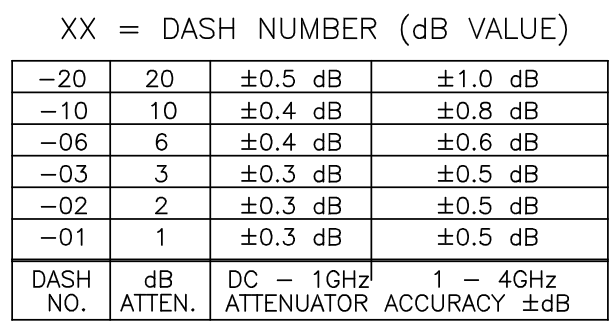

For the 5-A-FFB-XX:

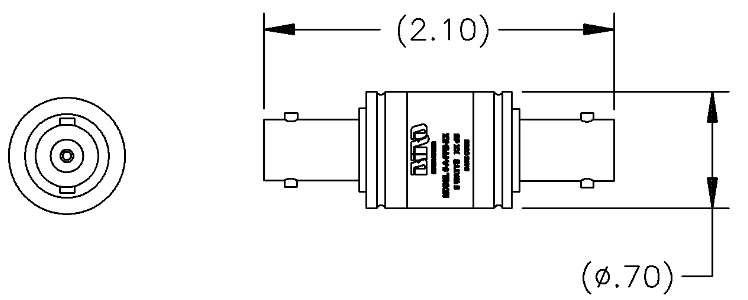

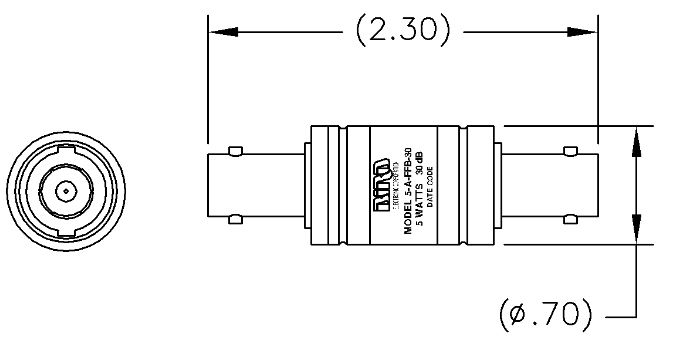

For the 5-A-FFB-30:

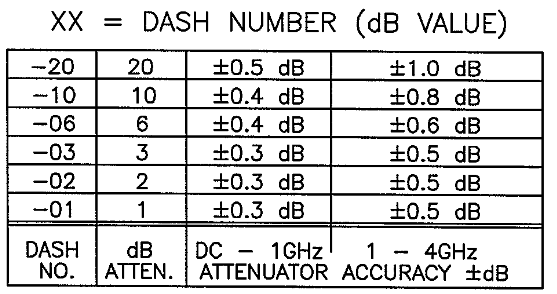

• Attenuation Accuracy:
  • DC to 1 GHz, ± 0.8 dB
  • 1 GHz to 4 GHz, ± 1.3 dB

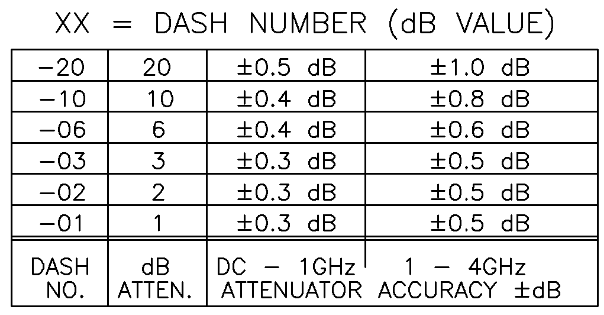

For the 5-A-FFN-XX:

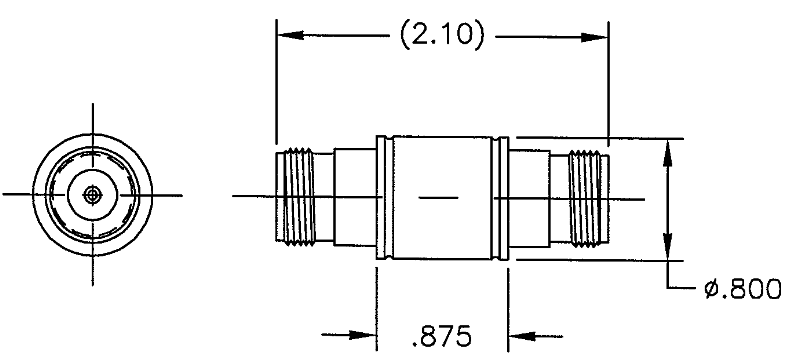

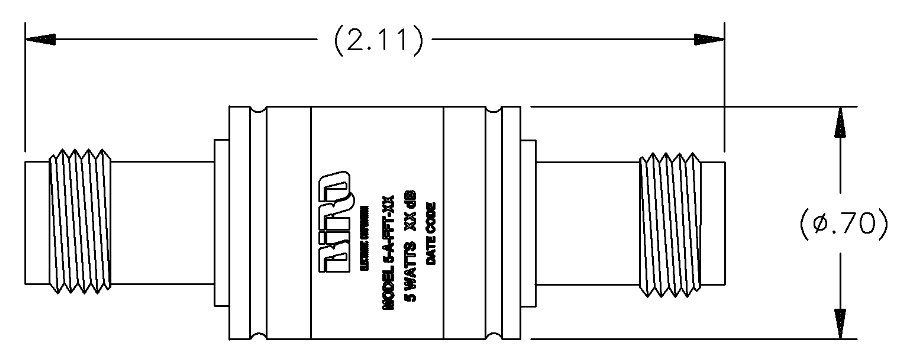

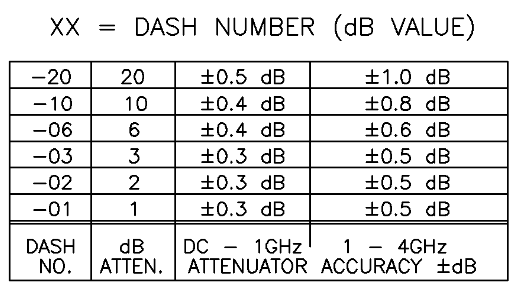

For the 5-A-FFT-XX:

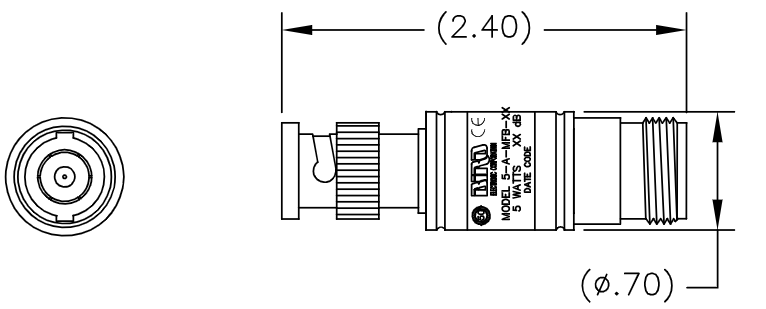

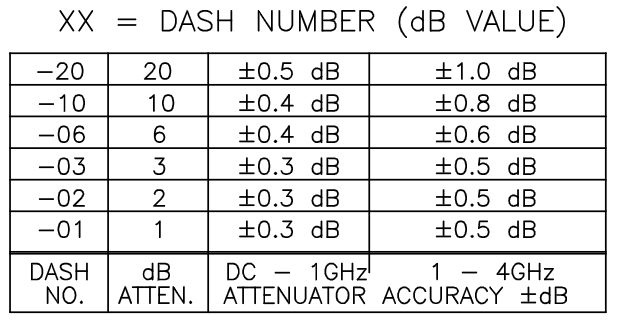

For the 5-A-MFB-XX:

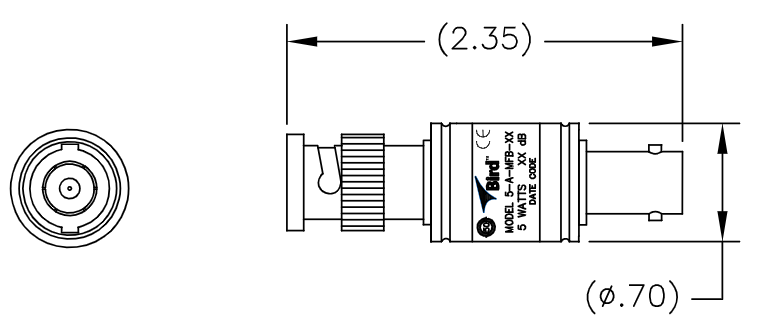

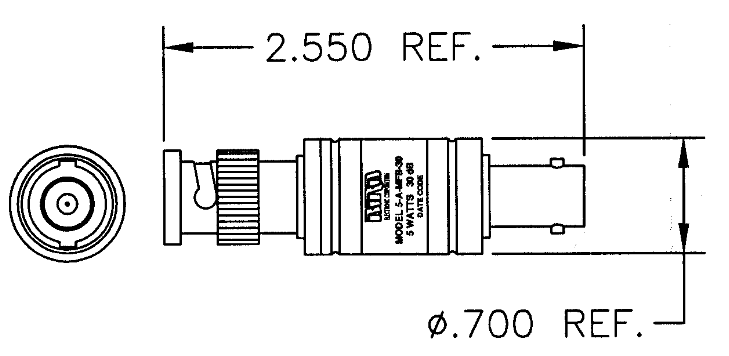

For the 5-A-MFB-30:

• Attenuation Accuracy:
  • DC to 1 GHz, ± 0.8 dB
  • 1 GHz to 4 GHz, ± 1.3 dB

For the 5-A-MFBN-XX:
