Specifications:
- Power Rating:
- 15 kW Continuous
- AC Power:
- 115 V +10, -6% @ 50/60 Hz ±3%
- 230 V +10, -6% @ 50/60 Hz ±3%
- Frequency Range & VSWR
- DC to 20 MHz @ 1.10:1 MAX.
- Impedance: 50 Ohms (nominal)
- Ambient Temperature Range: -40° C to +45° C
- Operating Temperature Range: +5° C to +40° C
- Operating Position: Horizontal only, vent plugs up
- Finish: Black Powder Coat

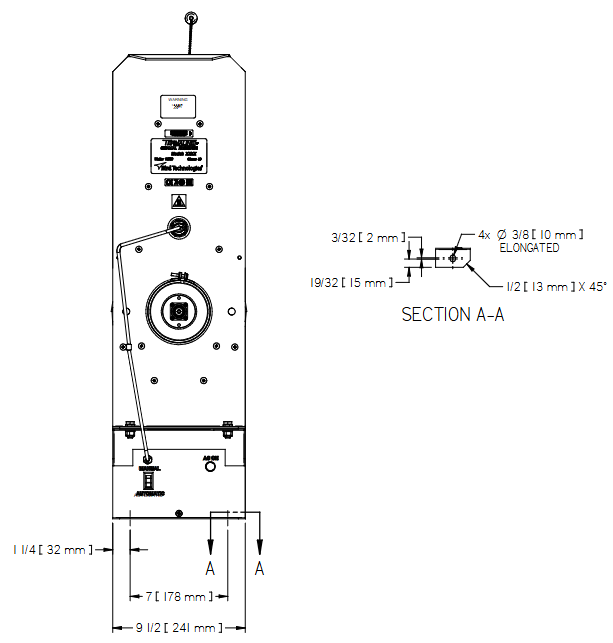

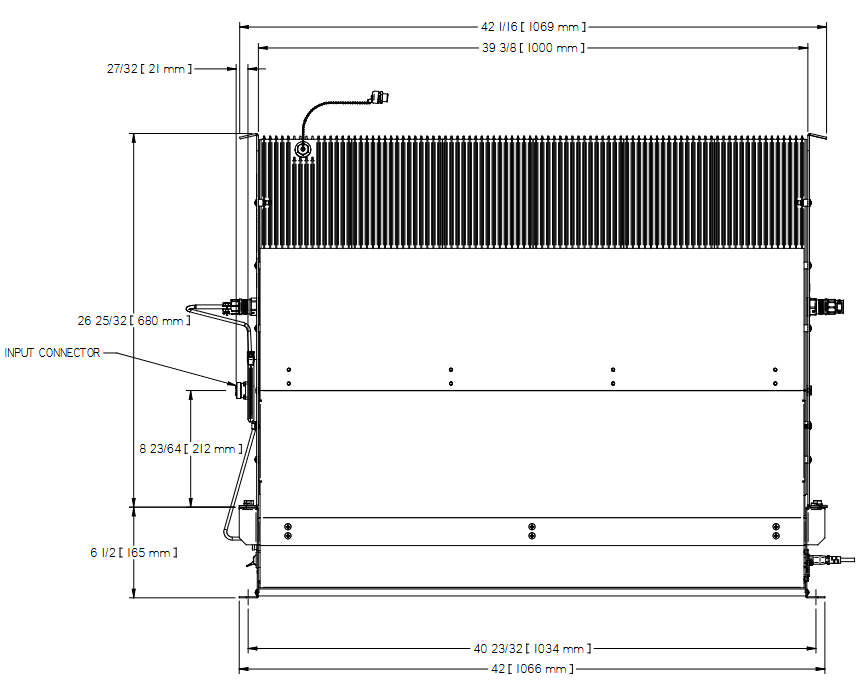

- Nominal Size: 42" x 9.5" x 33-3/8" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 236 LBS (107 kg)
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
