5-6A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 5 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Frequency Range & VSWR
  • DC to 6 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: Any

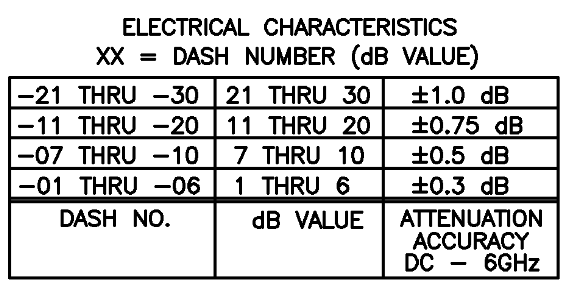

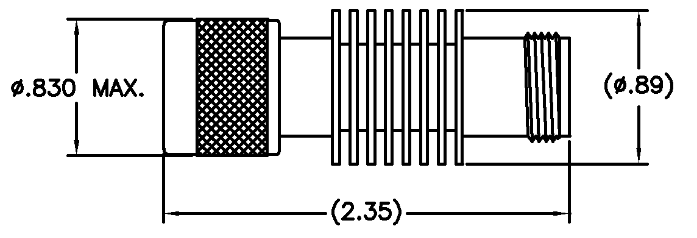

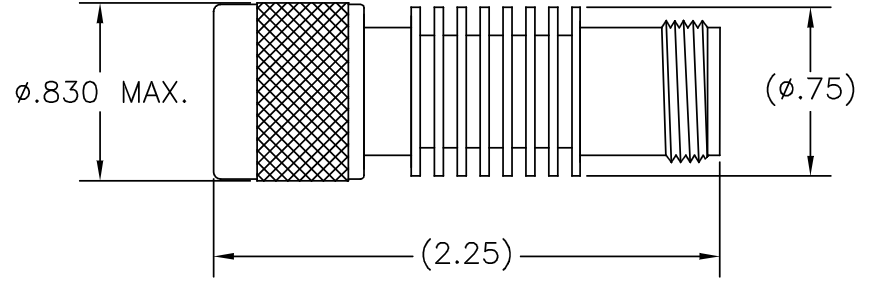

• Nominal Size: 2.4" x 0.9" (for specifics, see images below)
• Weight: Approx. 3.0 oz

For the 5-6A-MFN-XX:

• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)

For the 5-6A-MFN-40:

• Peak Power:
  • 250 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
