10-A Series Attenuators Technical Information

Specifications:

• Power Rating: (bi-directional)
  • 10 W MAX. @ 40° C
  • 12 W MAX. @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Any
• Nominal Size: 2.02" x 2.30" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 5 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

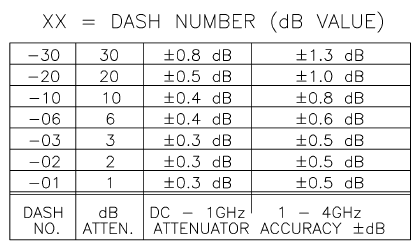

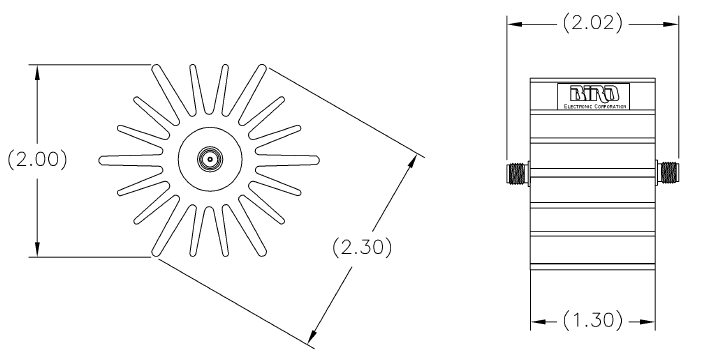

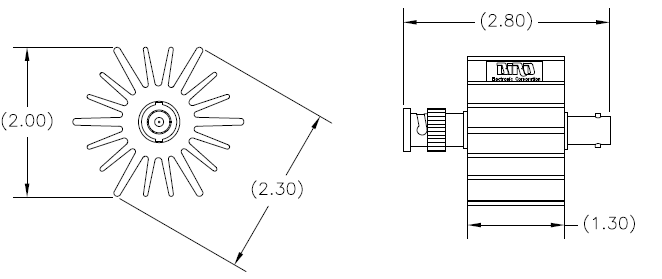

For the 10-A-FFA-XX:

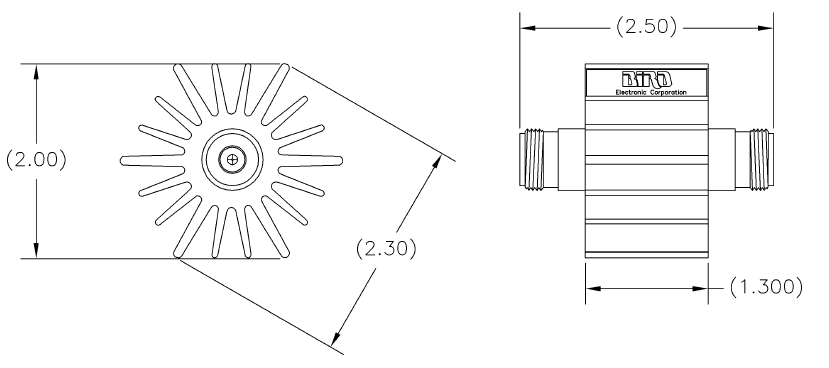

For the 10-A-FFB-XX:

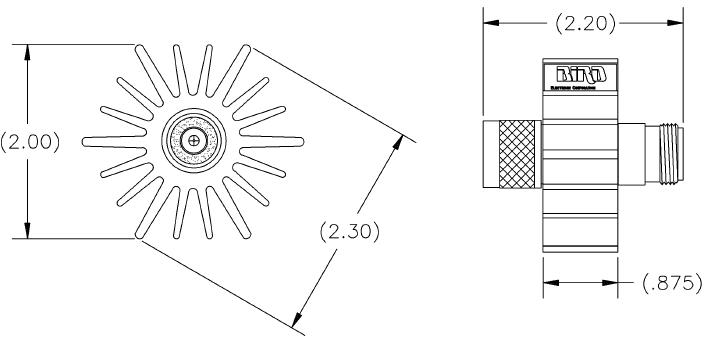

For the 10-A-FFN-XX:

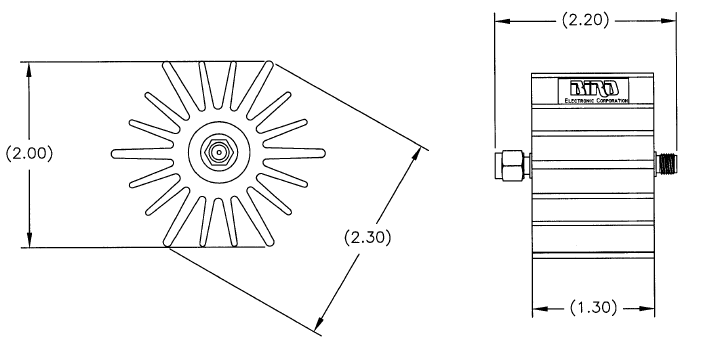

For the 10-A-FFT-XX:

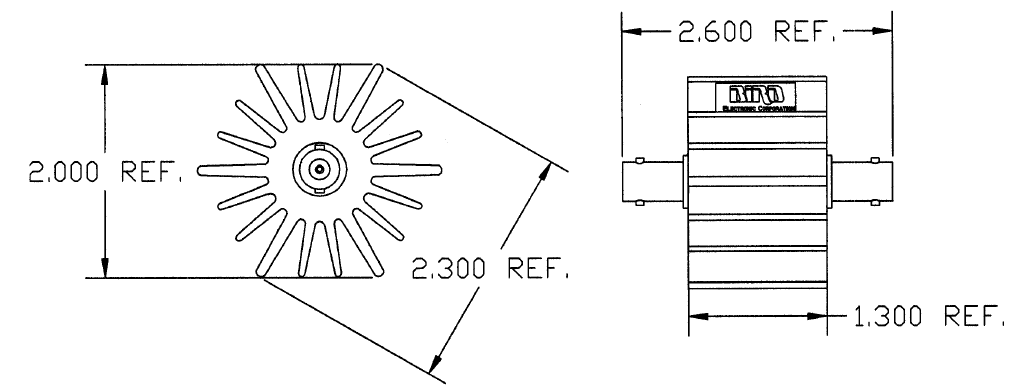

For the 10-A-MFA-XX:

For the 10-A-MFB-XX:

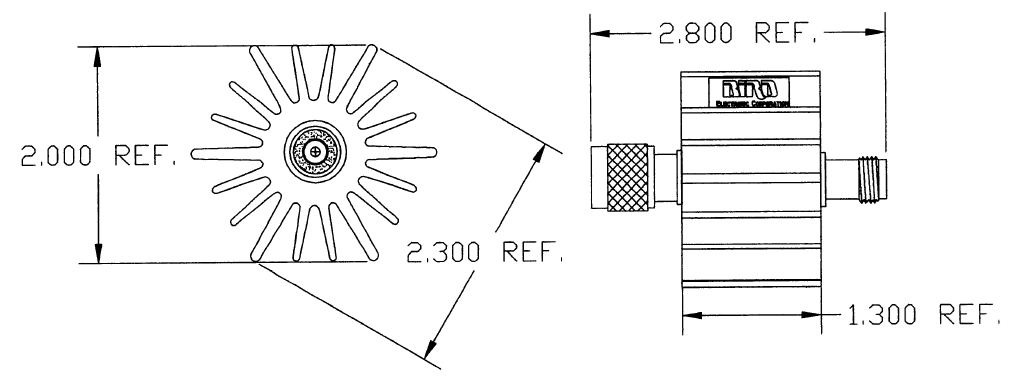

For the 10-A-MFN-XX:

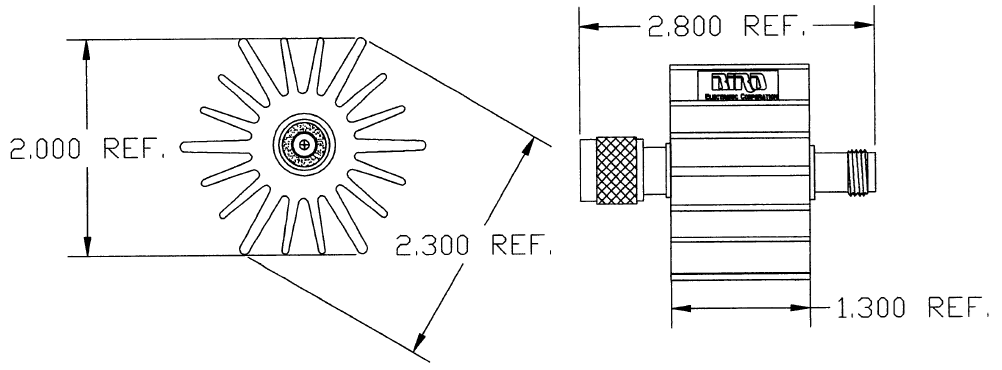

For the 10-A-MFT-XX:
