10-6A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 10 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Frequency Range & VSWR
  • DC to 4 GHz @ 1.20:1 MAX.
  • 4 GHz to 6 GHz @ 1.30:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: Any

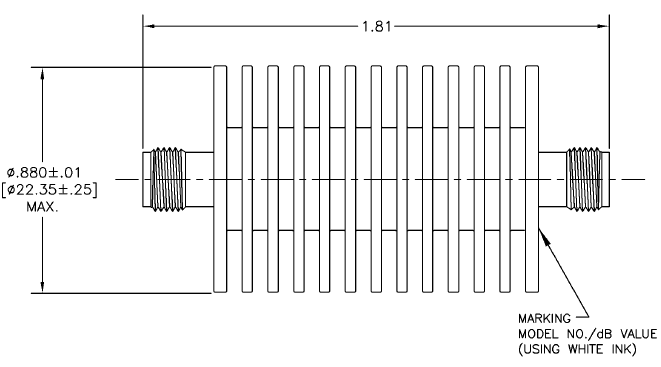

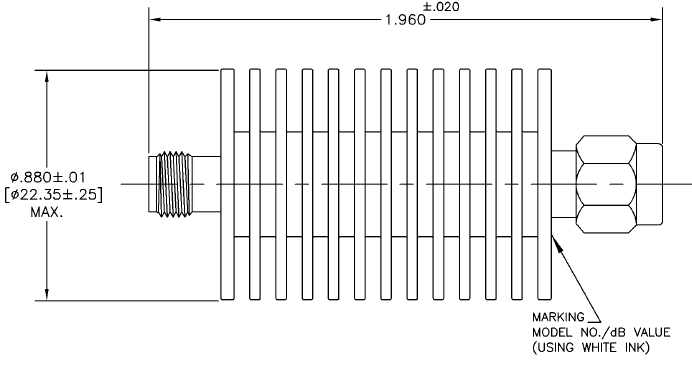

• Nominal Size: 1.9" x 0.9" (for specifics, see images below)
• Weight: Approx. 3.5 oz

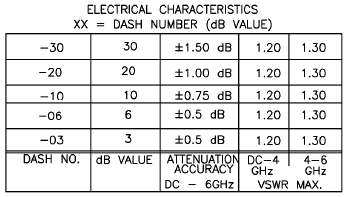

For the 10-6A-FFA-XX:

• Peak Power:
  • 500 W MAX. (10uSec Pulse, 1% Duty Cycle)

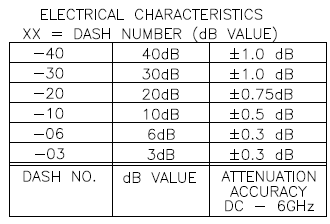

For the 10-6A-MFA-XX:

• Peak Power:
  • 500 W MAX. (10uSec Pulse, 1% Duty Cycle)

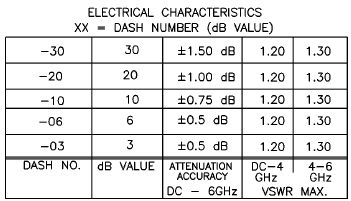

For the 10-6A-MFN-XX:

• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
