10-18A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 10 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Frequency Range & VSWR
  • DC to 4 GHz @ 1.20:1 MAX.
  • 4 GHz to 12.4 GHz @ 1.30:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.45:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: Any
• Nominal Size: 2.5" x 0.9" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 3.5 oz

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

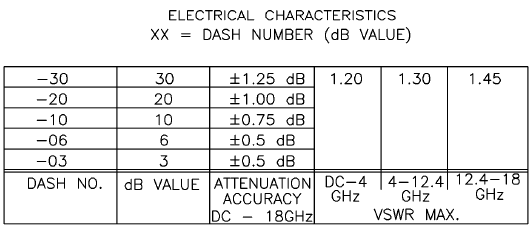

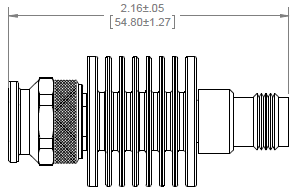

For the 10-18A-MFN-XX:

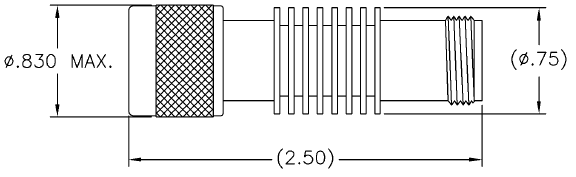

For the 10-18A-MFT-XX:
