8353A030 Series Attenuator Technical Information

Specifications:

• Impedance: 50 Ohms (nominal)
• Operating Position: Any

For the 8353A030-10:

• Power Rating: (bi-directional)
  • 10 WATTS CW
• Frequency Range & VSWR
  • 40 MHz to 4 GHz @ 1.20:1 MAX.
• Attenuation: 30 dB +1.5 dB, -0.5 dB
• Operating Temperature Range: -10° C to +50° C
• Weight: Approx. 4 oz

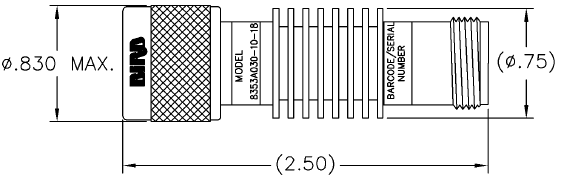

For the 8353A030-10-18:

• Average Power Rating: (bi-directional)
  • 10 W @ 25° C
  • Derated linearly to 1 W @ +125° C
• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Frequency Range & VSWR
  • DC to 4 GHz @ 1.20:1 MAX.
  • 4 GHz to 12.4 GHz @ 1.30:1 MAX.
• Attenuation: 30 dB ±1.5 dB
• Operating Temperature Range: -65° C to +125° C
