2-18A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 2 W @ 25° C
  • Derated linearly to 1 W @ 125° C
• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.25% Duty Cycle)
• Frequency Range & VSWR
  • DC to 4 GHz @ 1.15:1 MAX.
  • 4 GHz to 12.4 GHz @ 1.25:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.35:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: Any
• Nominal Size: 1.8" x 0.9" (for specifics, see images below)
• Weight: Approx. 2.5 oz

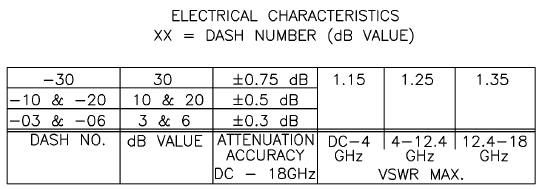

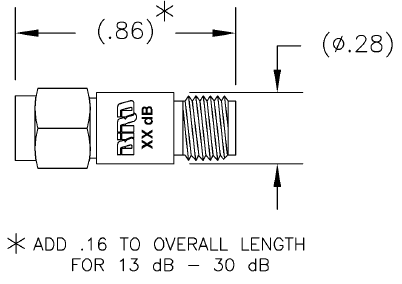

For the 2-18A-MFA-XX:

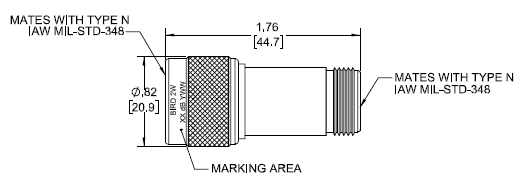

For the 2-18A-MFN-XX:
