8353A040 Series Attenuator Technical Information

Specifications:

• Impedance: 50 Ohms (nominal)
• Operating Position: Any

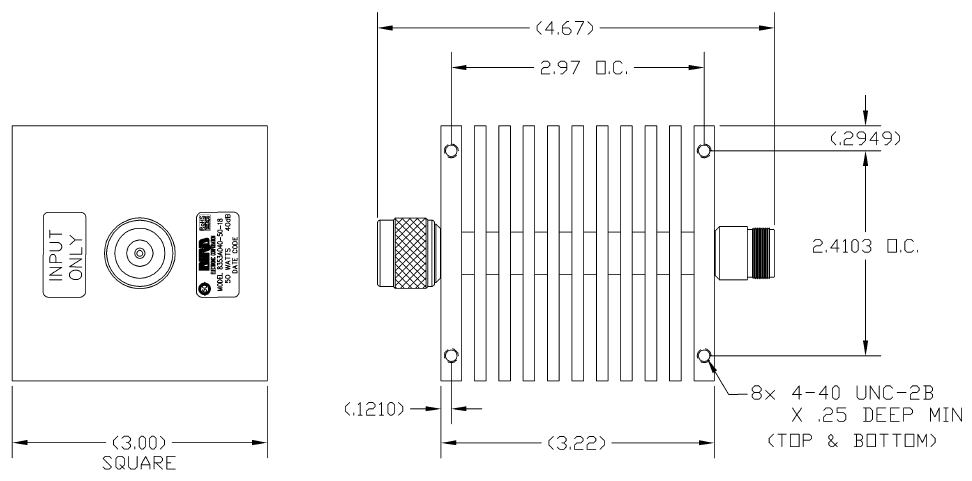

For the 8353A040-50:

• Power Rating: (uni-directional)
  • 50 WATTS CW
• Frequency Range & VSWR
  • 40 MHz to 4 GHz @ 1.20:1 MAX.
• Attenuation: 40 dB ±2.0 dB
• Operating Temperature Range: -10° C to +50° C
• Weight: Approx. 1.0 LBS

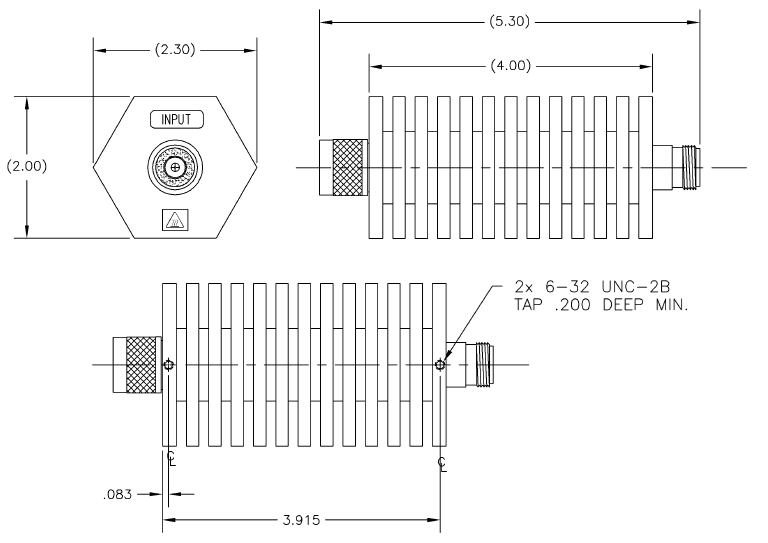

For the 8353A040-50-18:

• Average Power Rating: (uni-directional)
  • 50 WATTS CW @ 25° C
  • Derated linearly to 10 W @ +125° C
• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.05% Duty Cycle)
• Frequency Range & VSWR
  • DC to 6 GHz @ 1.25:1 MAX.
  • 6 GHz to 12.4 GHz @ 1.35:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.45:1 MAX.
• Attenuation: 40 dB ±1.5 dB
• Operating Temperature Range: -65° C to +125° C
• Weight: Approx. 1.66 LBS
