25-18A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 25 WATTS CW @ 25° C
  • Derated linearly to 5 W @ 125° C
• Peak Power:
  • 500 W MAX. (5uSec Pulse, 0.05% Duty Cycle)
• Frequency Range & VSWR
  • DC to 6 GHz @ 1.20:1 MAX.
  • 6 GHz to 12.4 GHz @ 1.30:1 MAX.
  • 12.4 GHz to 18 GHz @ 1.40:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -65° C to +125° C
• Operating Position: Any
• Nominal Size: 2.3" x 4.2" (for specifics, see images below)
• Weight: Approx. 13.3 oz

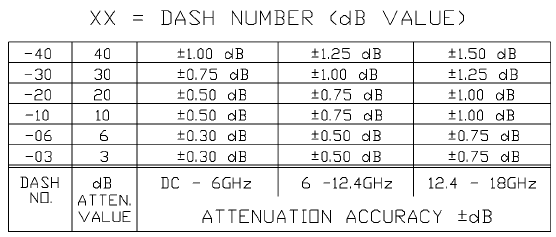

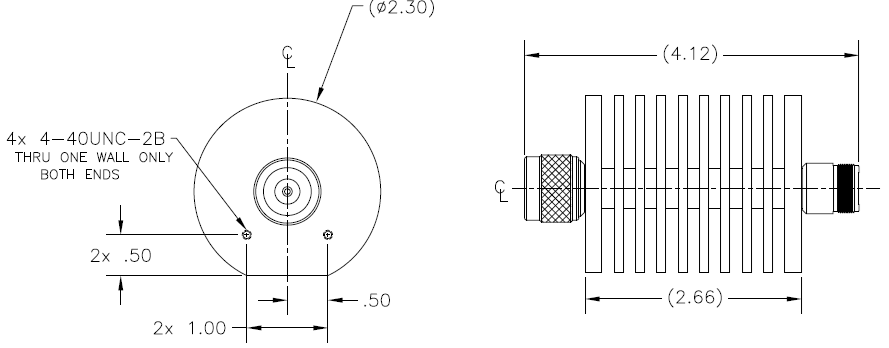

For the 25-18A-FFN-XX:

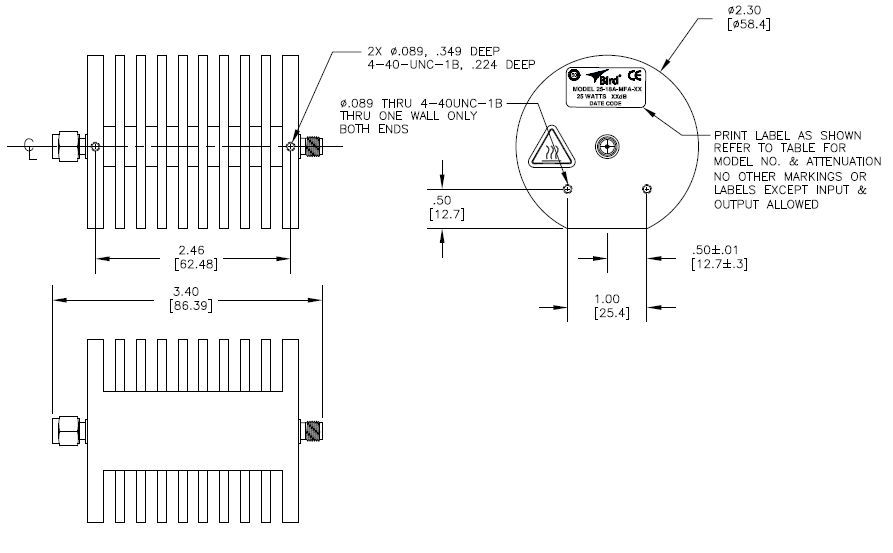

For the 25-18A-MFA-XX:

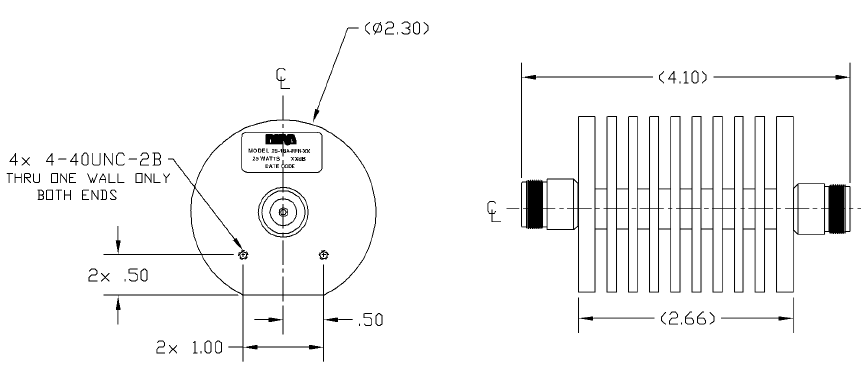

For the 25-18A-MFN-XX:
