100-6A Series Attenuators Technical Information

Specifications:

• Average Power Rating: (uni-directional)
  • 100 WATTS CW @ 25° C
  • Derated linearly to 10 W @ 125° C
• Peak Power:
  • 1000 W MAX. (5uSec Pulse, 0.1% Duty Cycle)
• Frequency Range & VSWR
  • DC to 2 GHz @ 1.20:1 MAX.
  • 2 GHz to 4 GHz @ 1.35:1 MAX.
  • 4 GHz to 6 GHz @ 1.40:1 MAX.
• Impedance: 50 Ohms (nominal)
• Operating Temperature Range: -55° C to +125° C
• Operating Position: Heat sink oriented vertically
• Nominal Size: 6.34" x 2.70" x 3.80" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.4 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

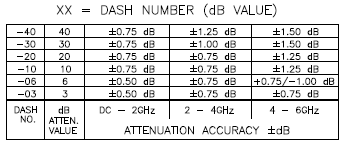

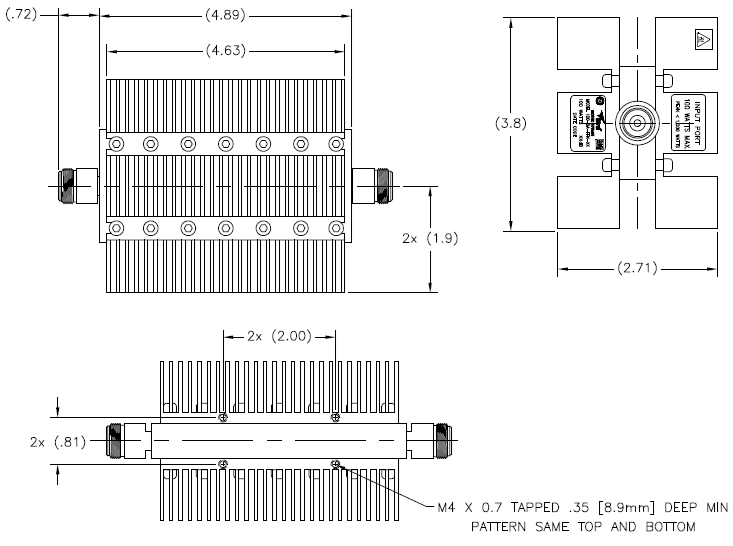

For the 100-6A-FFN-XX:

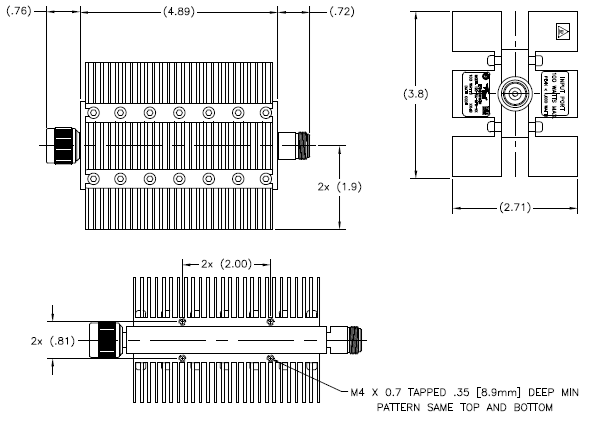

For the 100-6A-MFN-XX:
