100-SA Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 100 W MAX. @ 40° C
  • 125 W MAX. @ 25° C
• Peak Power:
  • 1000 W MAX. (5uSec Pulse, 0.1% Duty Cycle)
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Any
• Nominal Size: 7.22" x 2.75" SQ. (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.8 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

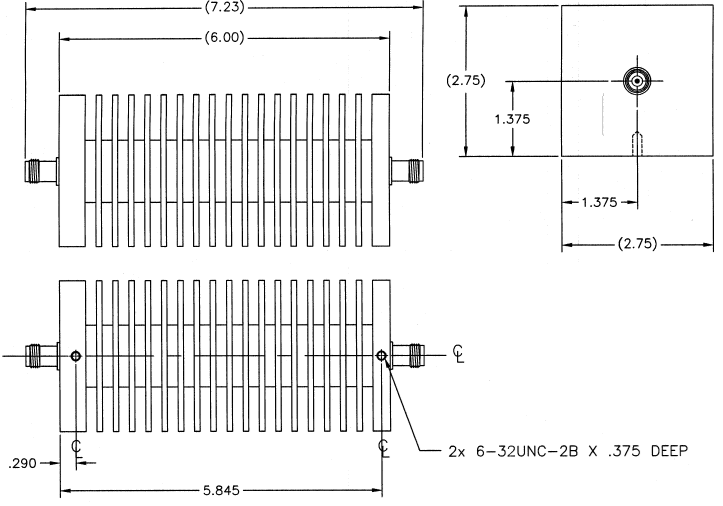

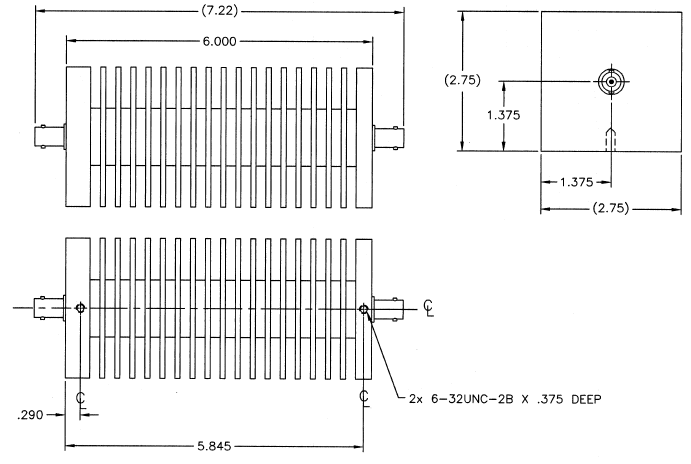

For the 100-SA-FFB-XX:

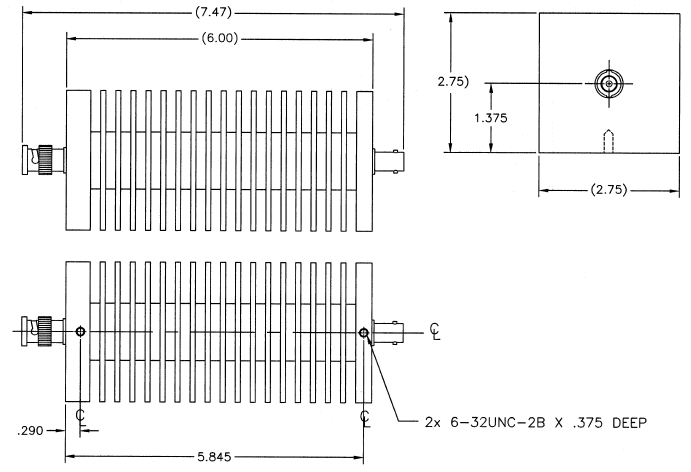

For the 100-SA-FFN-XX:

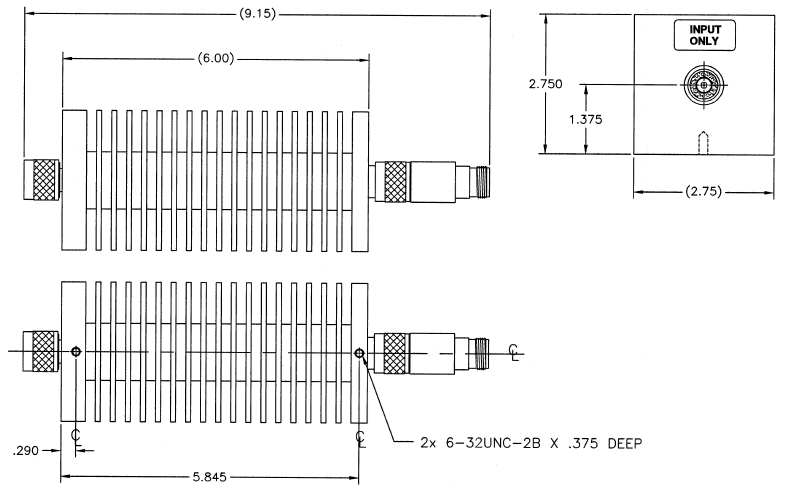

For the 100-SA-FFT-XX:

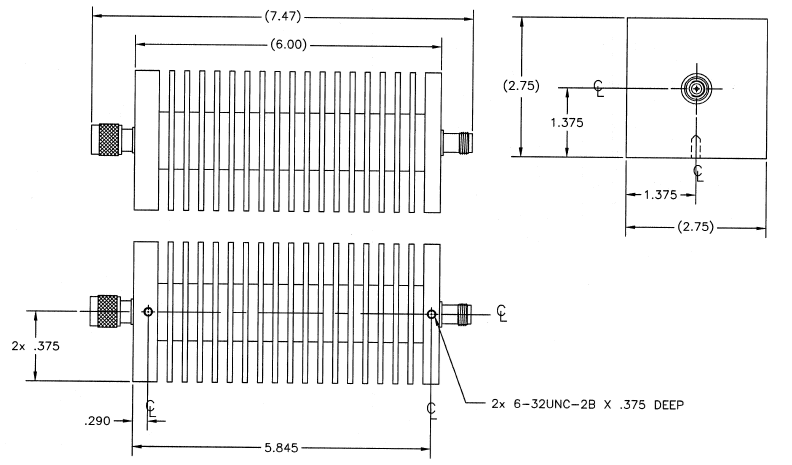

For the 100-SA-MFB-XX:

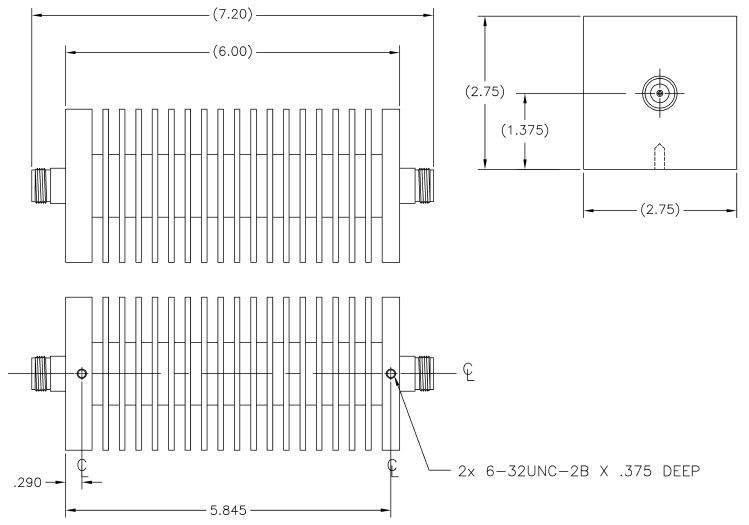

For the 100-SA-MFN-XX:

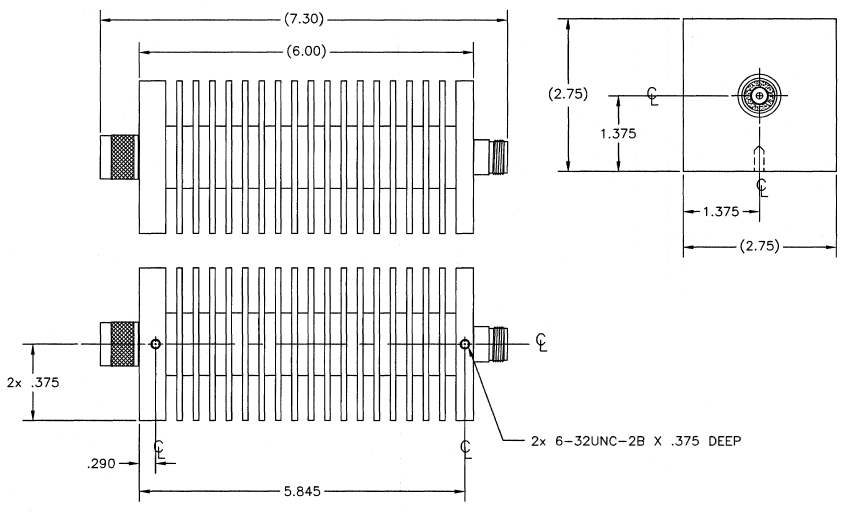

For the 100-SA-MFN-40:

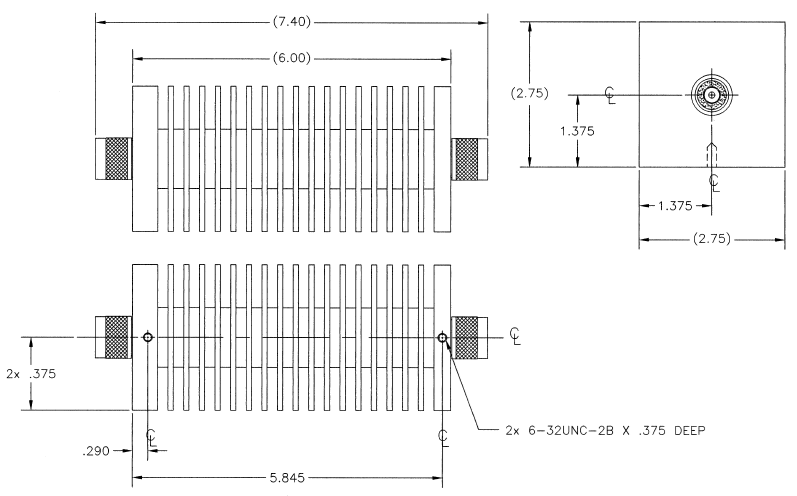

For the 100-SA-MFN-120:

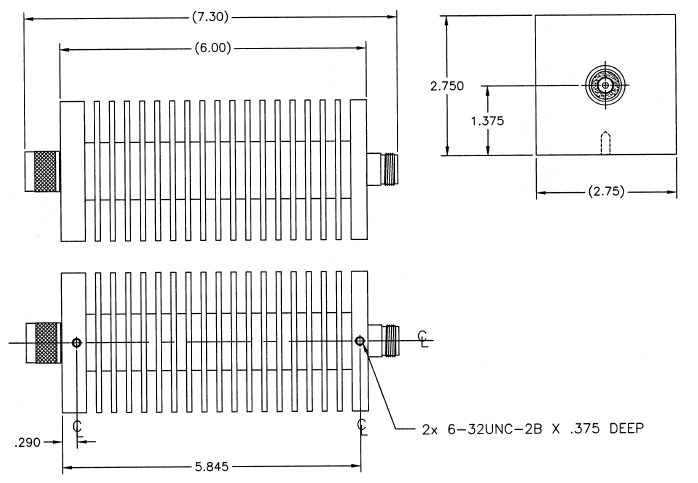

For the 100-SA-MFT-XX:

For the 100-SA-MMN-XX:
