150-A Series Attenuators Technical Information

Specifications:

• Power Rating: (bi-directional)
  • 150 WATTS CW @ 40° C
  • 180 WATTS CW @ 25° C
  • Derated linearly to 0 W from 40° C to 120° C
• Peak Power: 2.5 kW MAX.
  • Pulses not to exceed 1 mS
  • Duty cycle not to exceed average rated power
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 3 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Temperature Range: -40° C to +120° C
• Operating Position: Vertical (mounting brackets down)

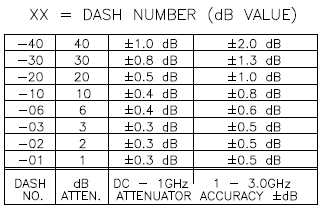

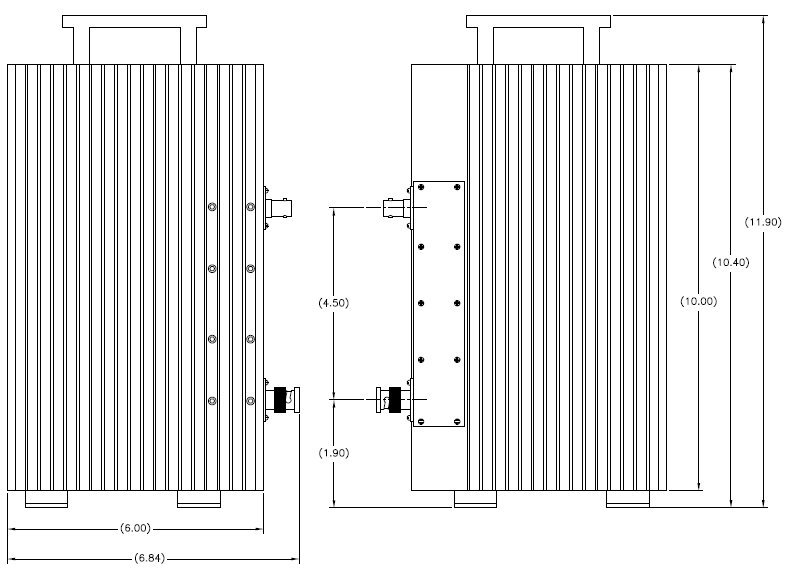

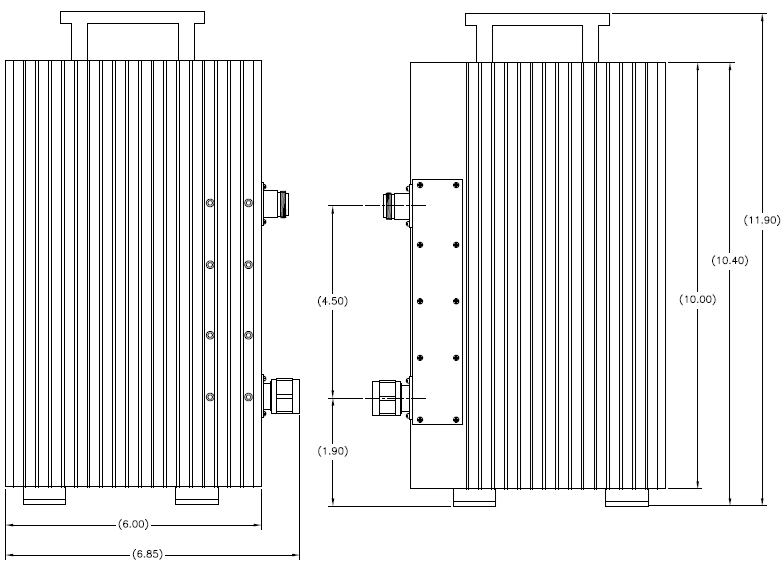

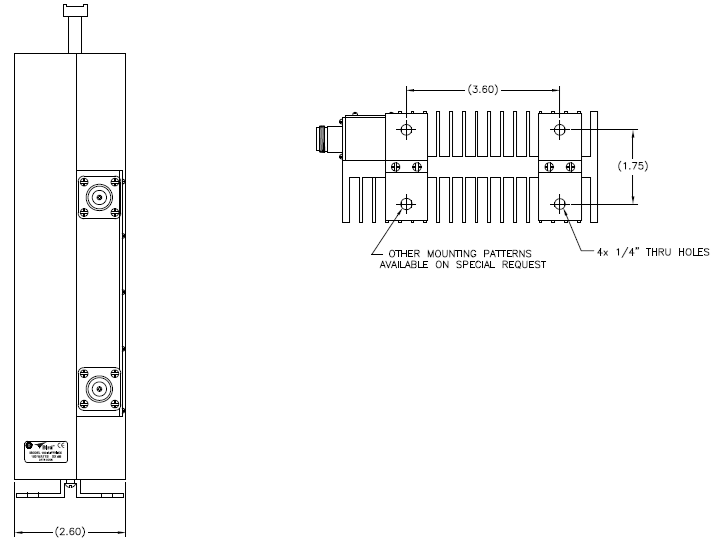

• Nominal Size: 6.7" x 2.6" x 11.9" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 6.6 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

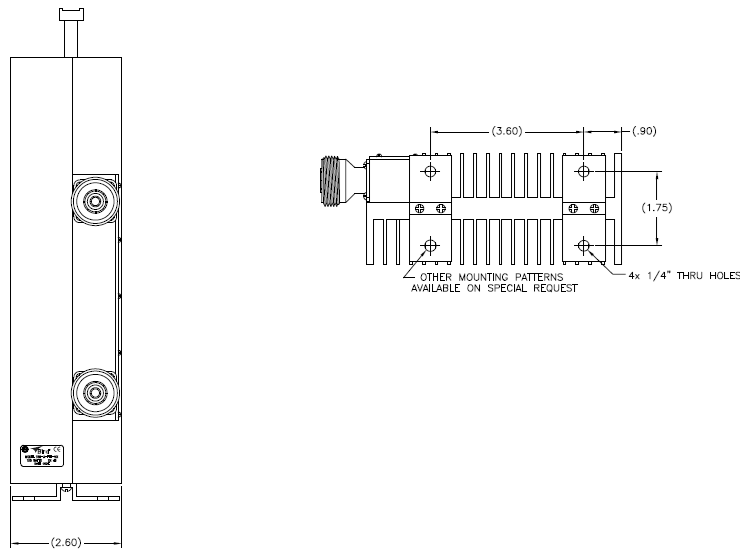

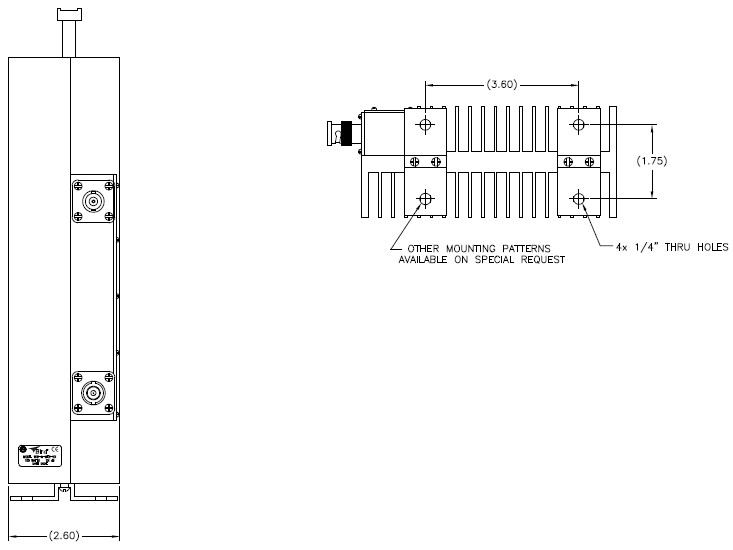

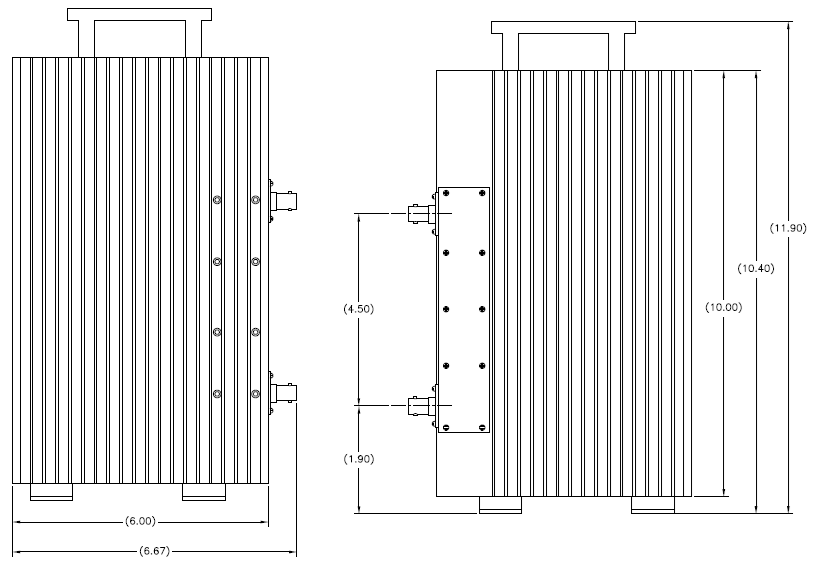

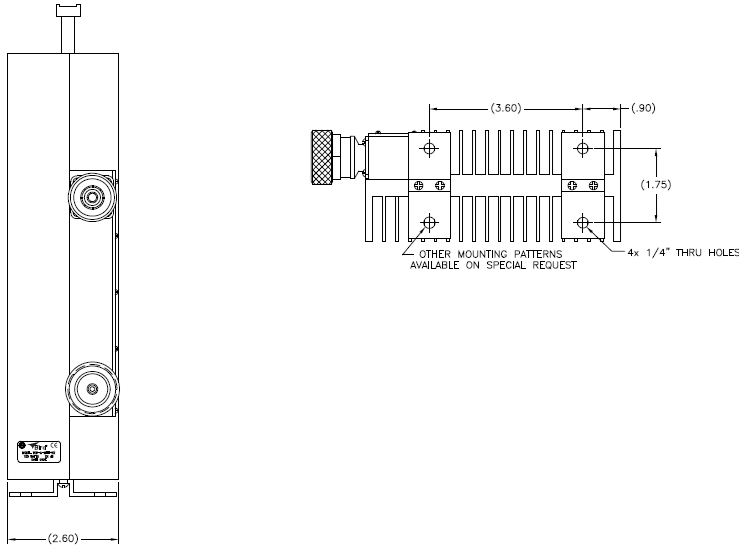

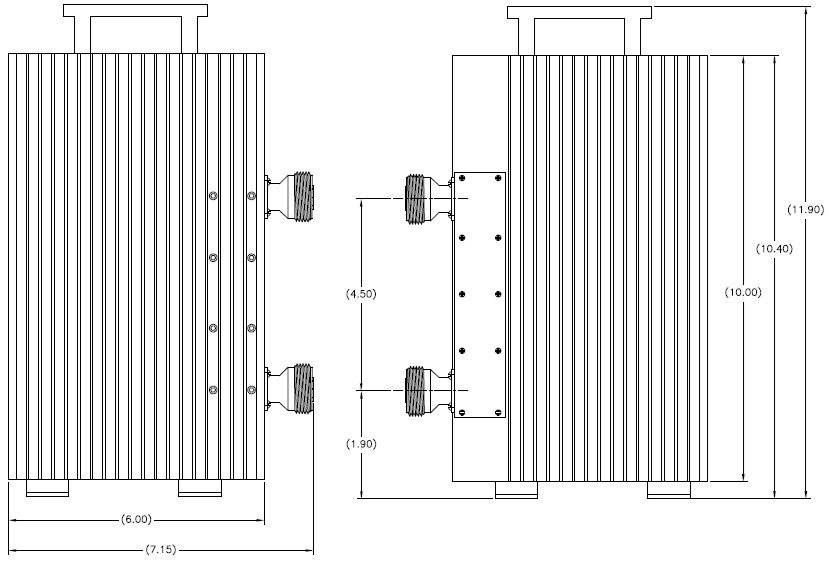

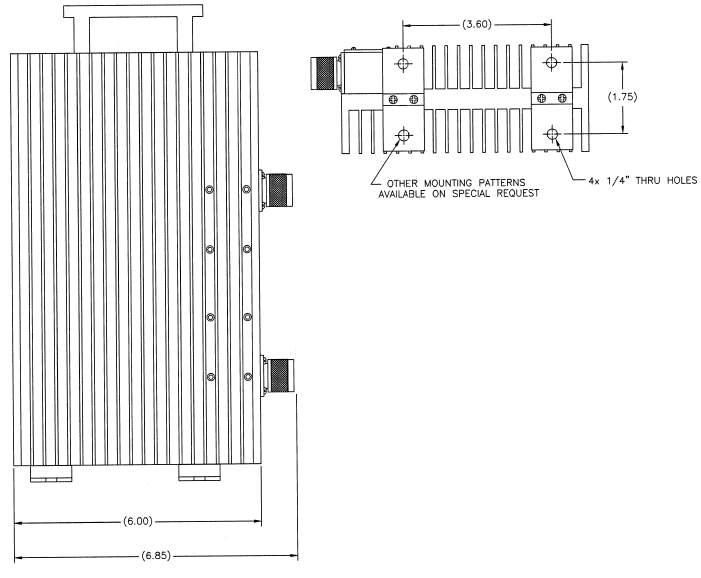

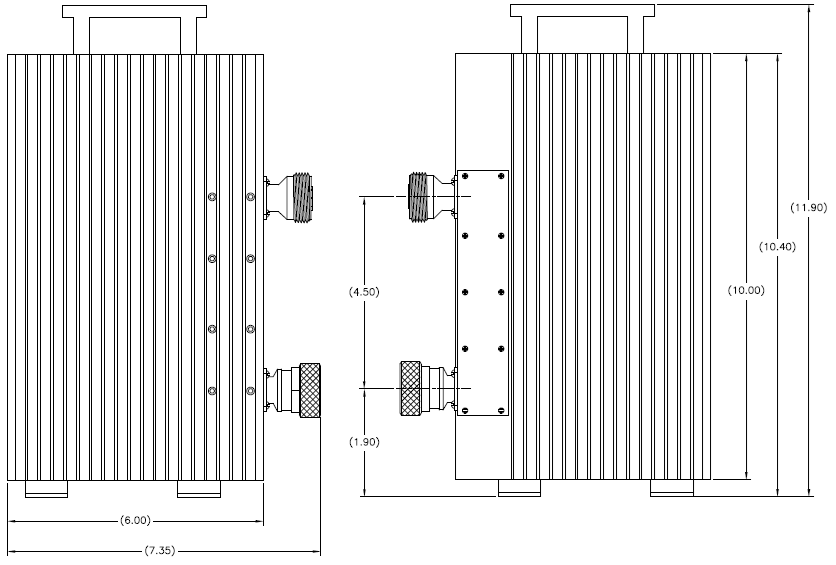

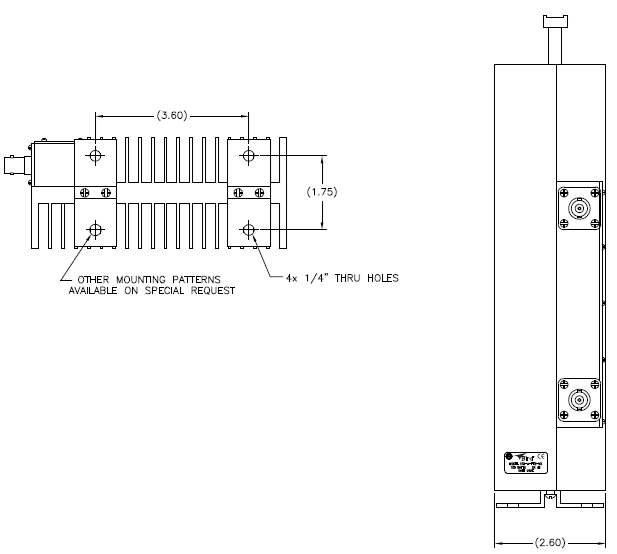

For the 150-A-FFB-XX:

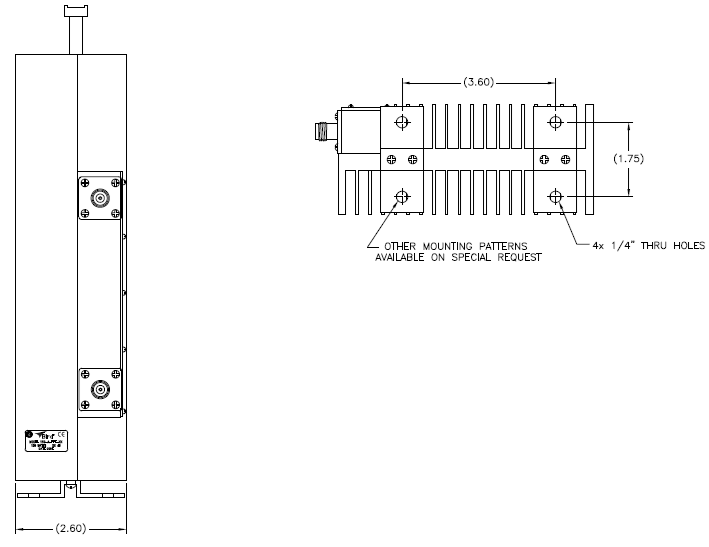

For the 150-A-FFE-XX:

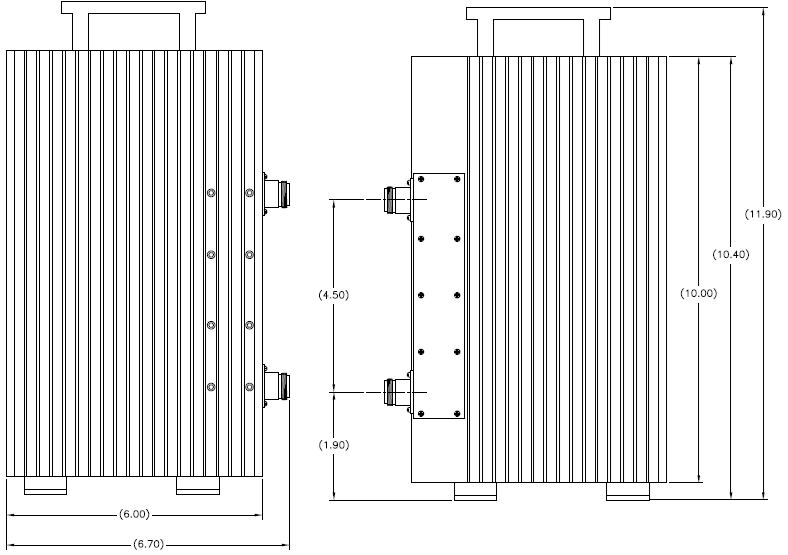

For the 150-A-FFN-XX:

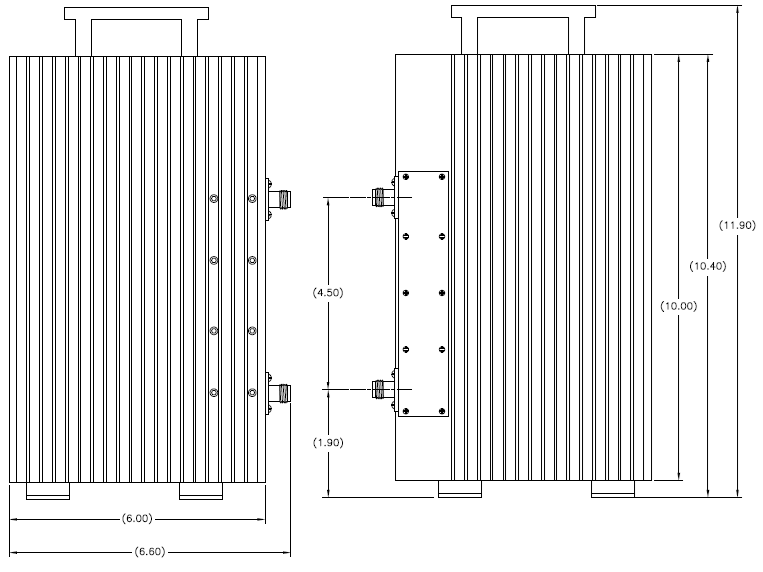

For the 150-A-FFT-XX:

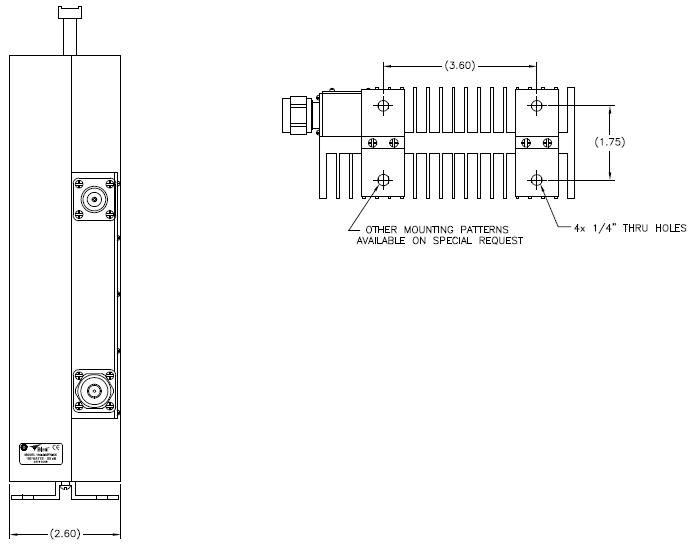

For the 150-A-MFB-XX:

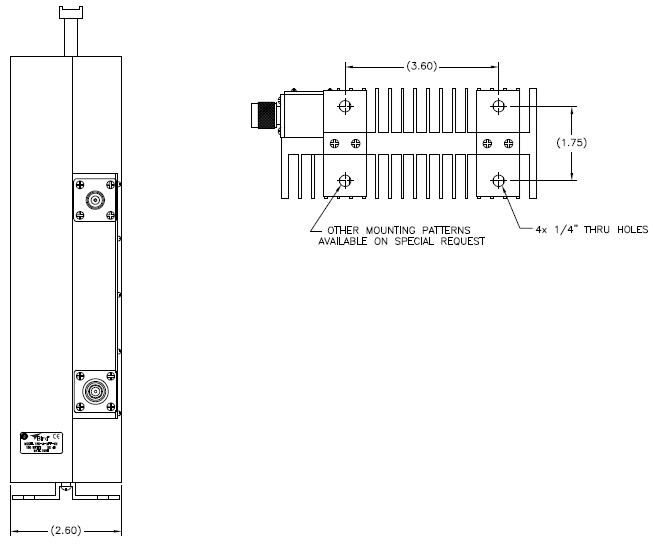

For the 150-A-MFE-XX:

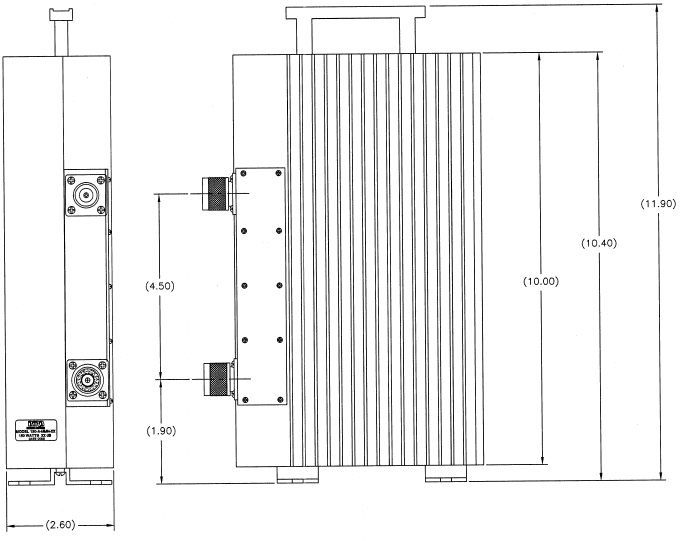

For the 150-A-MFN-XX:

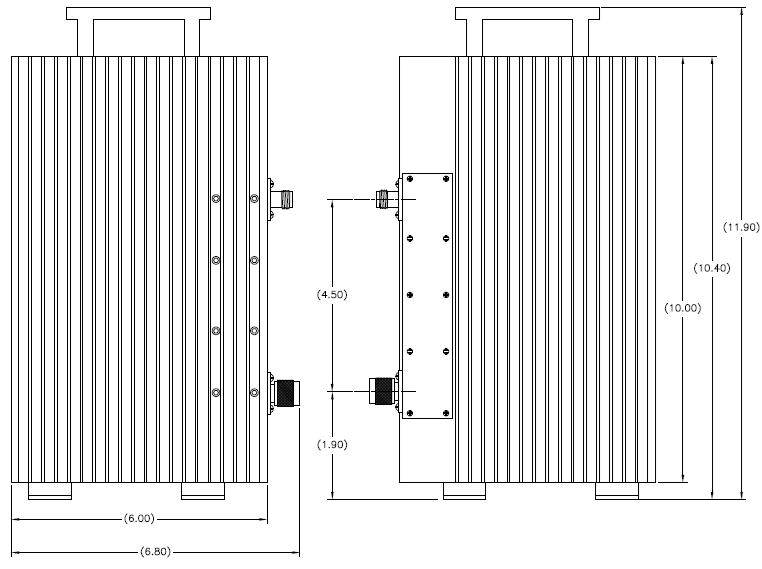

For the 150-A-MFT-XX:

For the 150-A-MMN-XX:
