150-SA Series Attenuators Technical Information

Specifications:

• Average Power Rating: (bi-directional)
  • 150 W MAX. @ 40° C
  • 180 W MAX. @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Vertically
• Nominal Size: 7.52" x 5.00" x 4.00" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 5.5 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

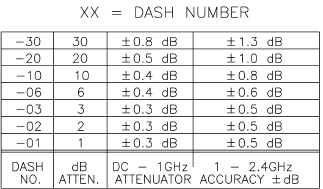

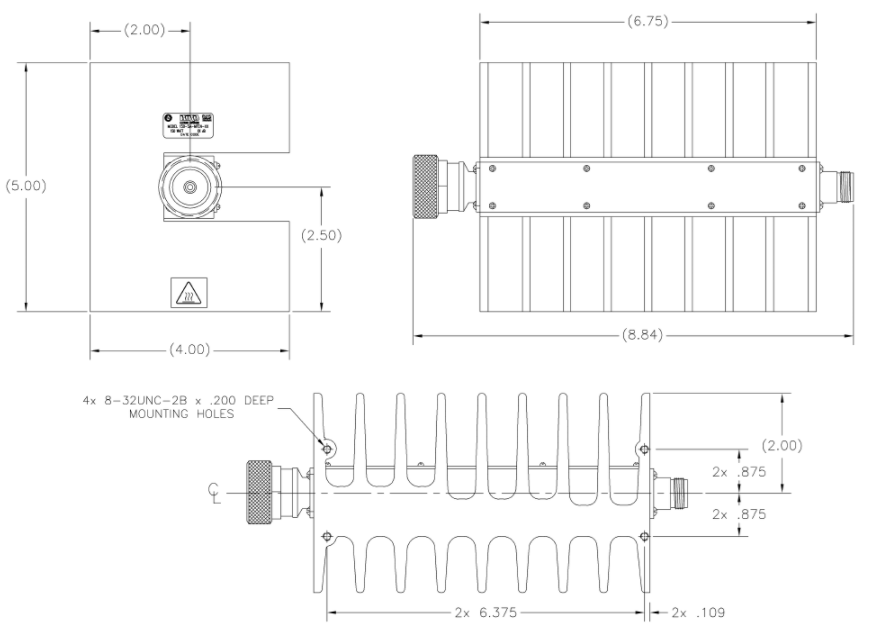

For the 150-SA-FFA-XX:

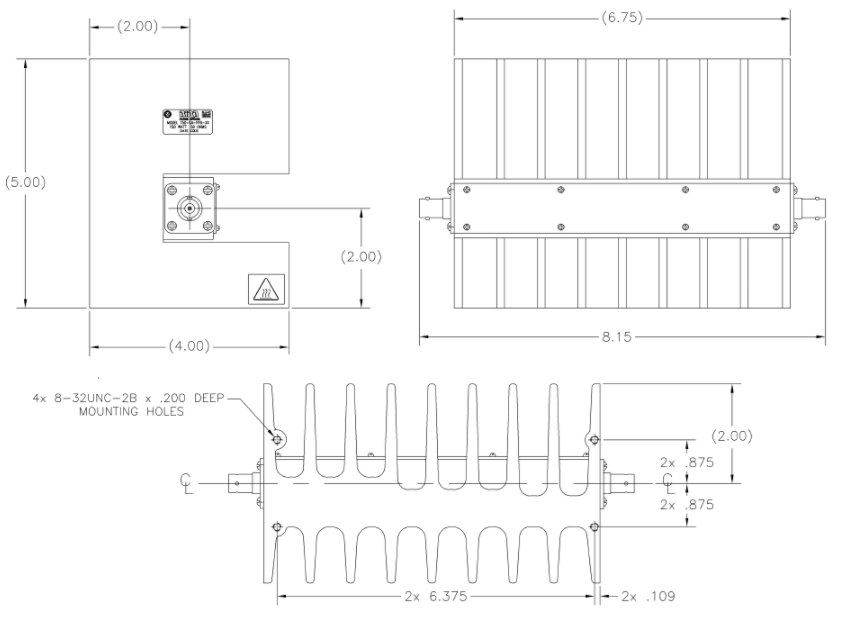

For the 150-SA-FFB-XX:

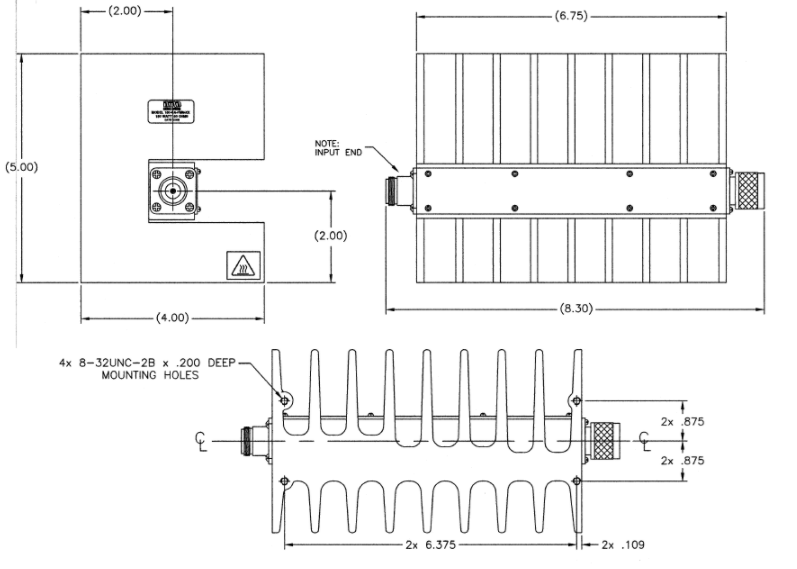

For the 150-SA-FFN-XX:

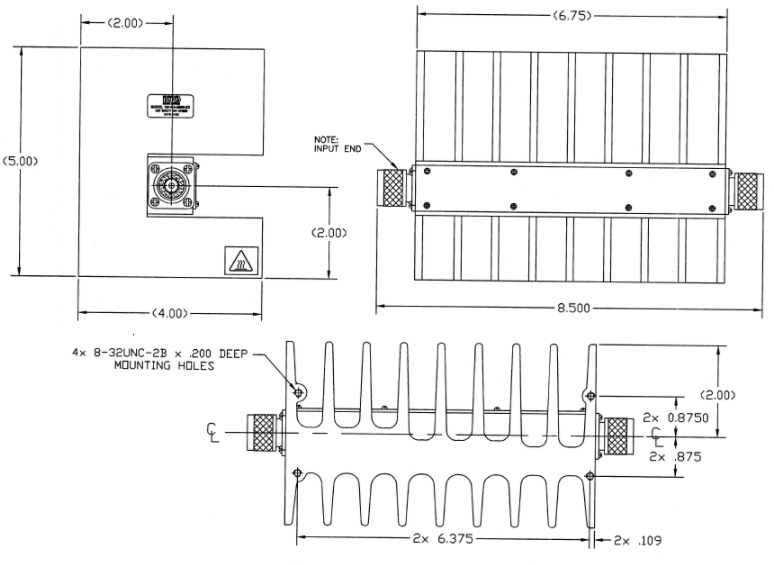

For the 150-SA-FMN-XX:

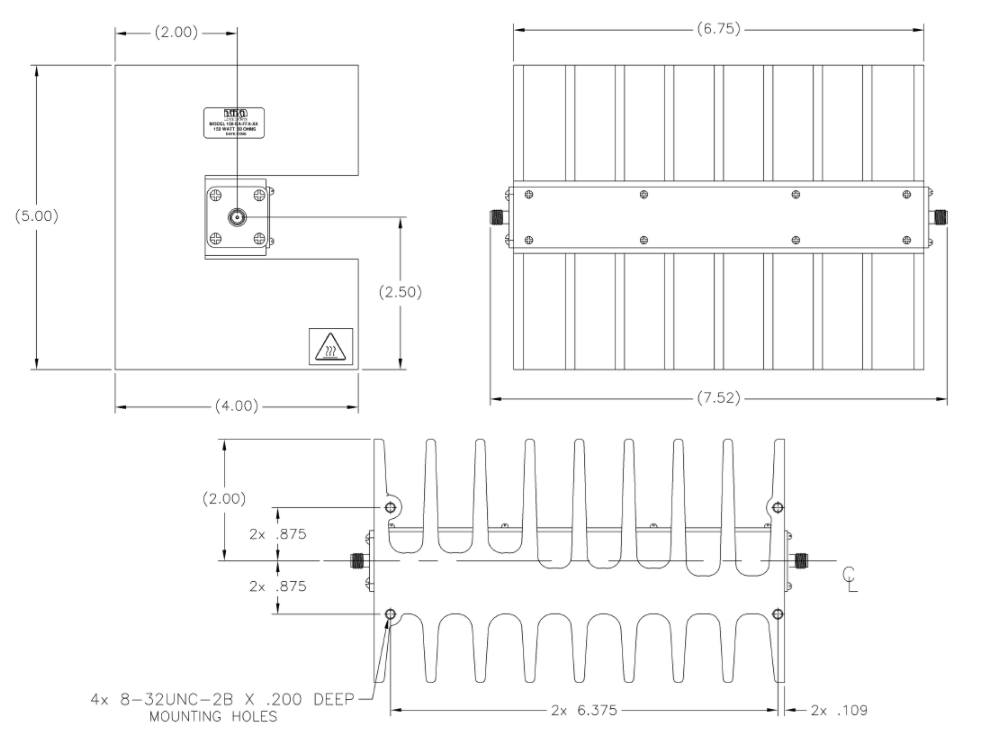

For the 150-SA-MFB-XX:

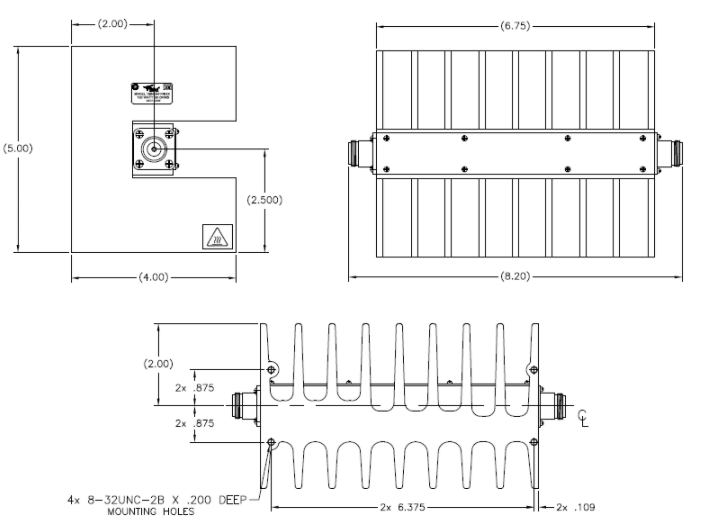

For the 150-SA-MFEN-XX:

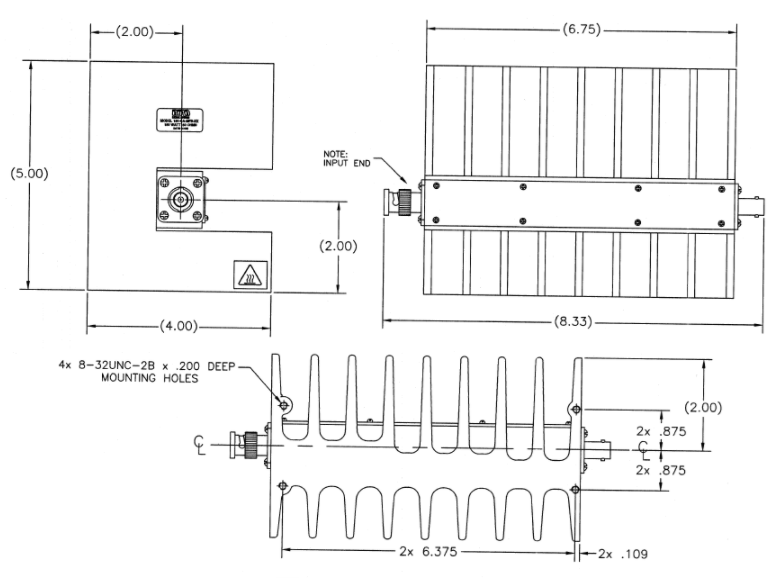

For the 150-SA-MFN-XX:
