150-WA Series Attenuators Technical Information

Specifications:

• Average Power Rating: (uni-directional)
  • 150 WATTS CW @ 25° C Ambient
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Horizontal (fins up) or vertical
• Nominal Size: 5.47" x 5.40" x 4.30" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 2.5 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

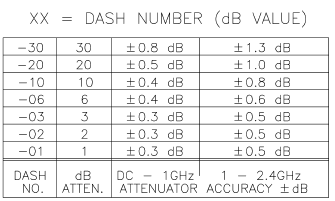

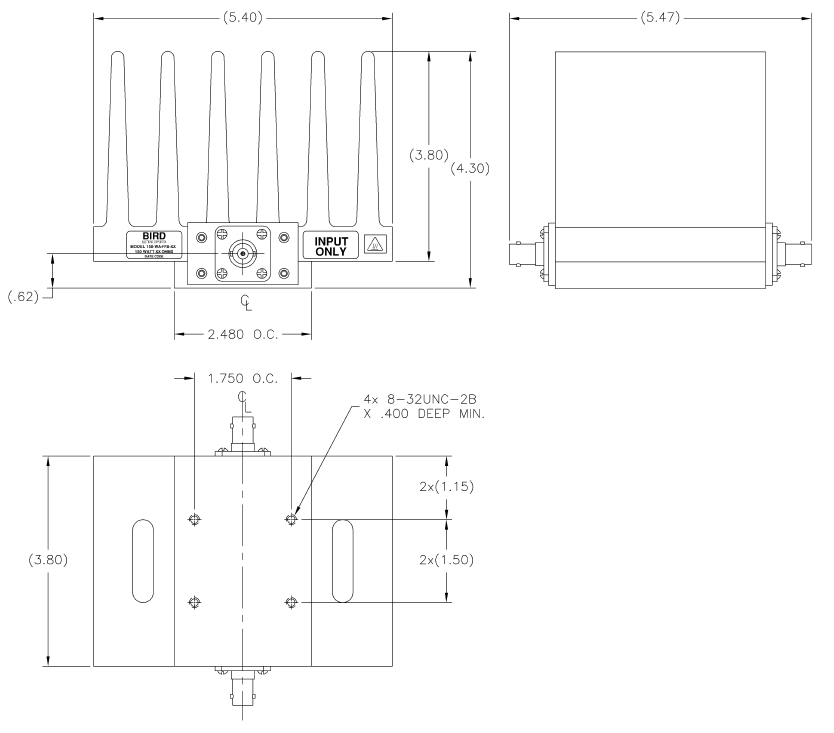

For the 150-WA-FFB-XX:

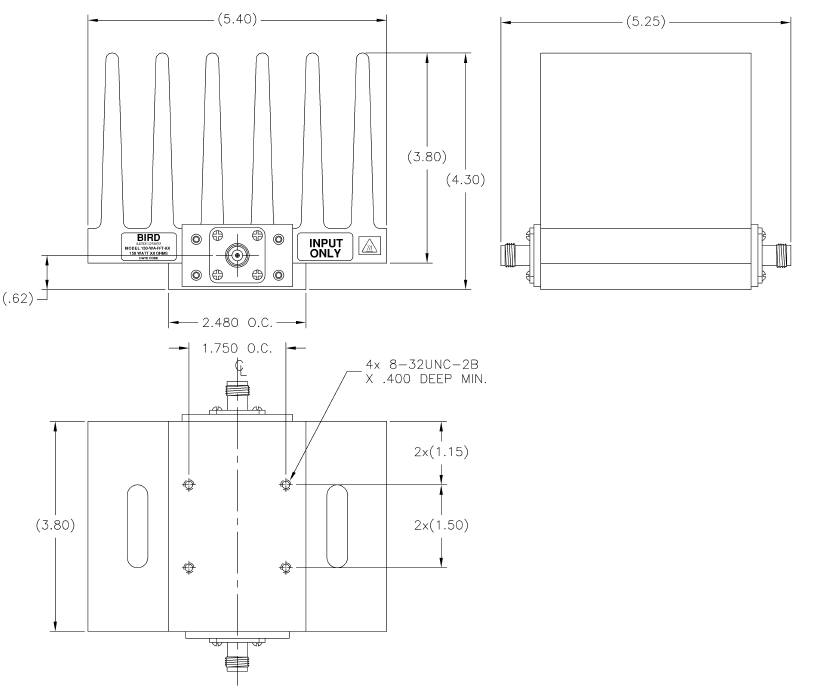

For the 150-WA-FFNB-XX:

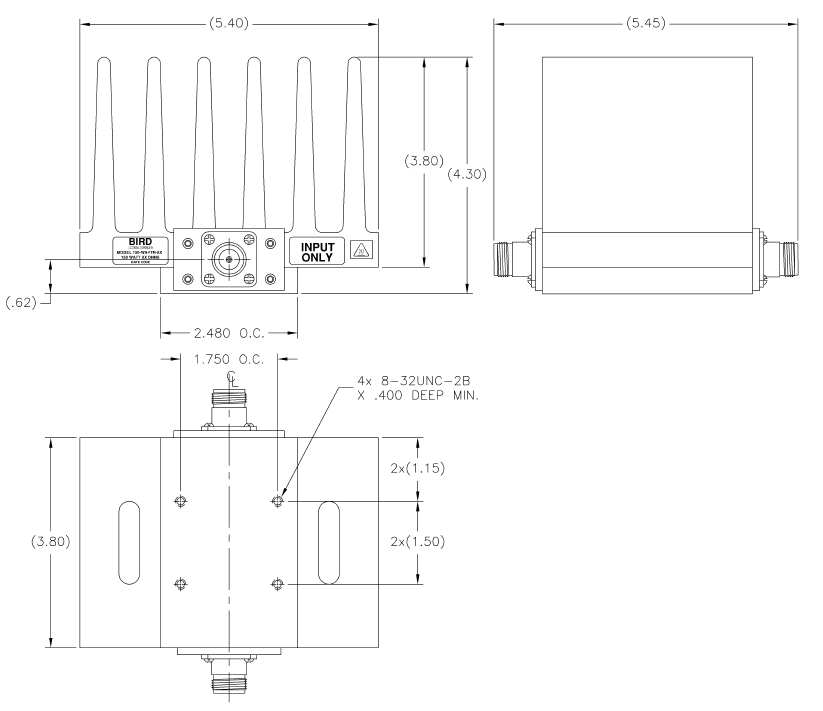

For the 150-WA-FFN-XX:

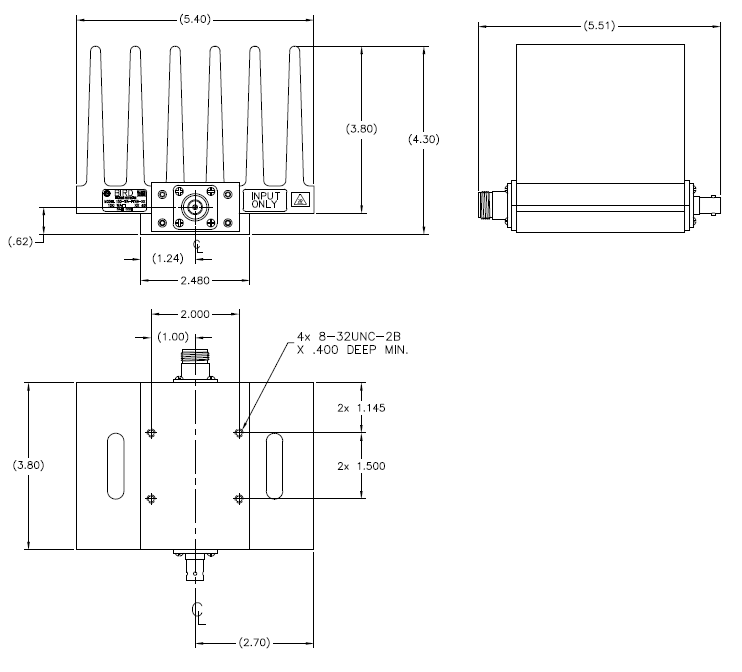

For the 150-WA-FFT-XX:

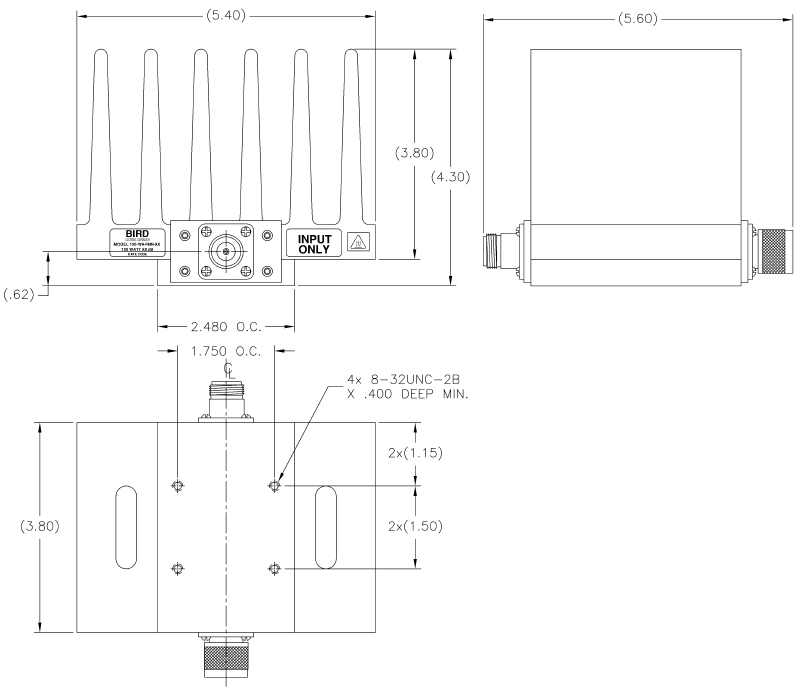

For the 150-WA-FMN-XX:

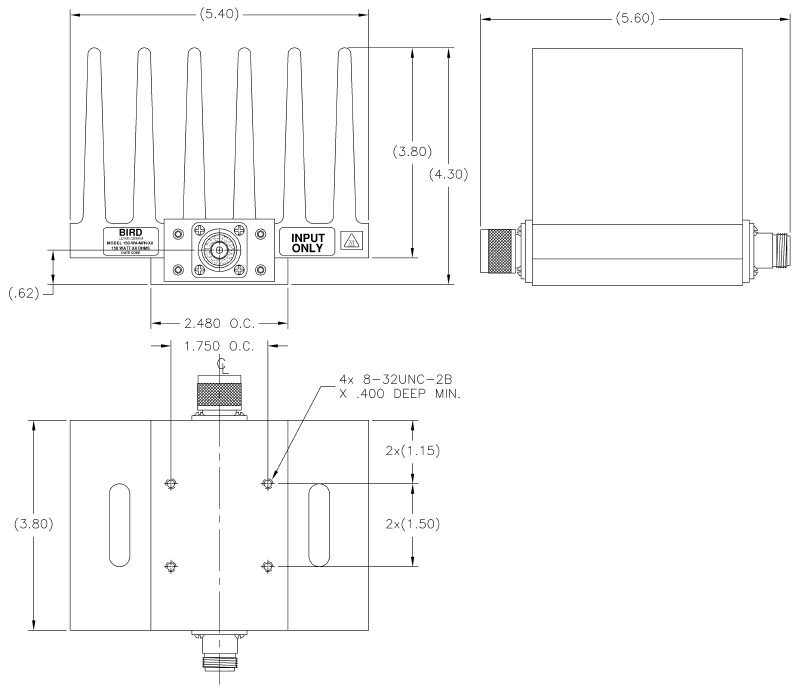

For the 150-WA-MFN-XX:
