300-A Series Attenuators Technical Information

Specifications:

• Power Rating: (bi-directional)
  • 300 WATTS CW @ 40° C
  • 360 WATTS CW @ 25° C
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Any
• Nominal Size: 7.3" x 5.4" x 10.9" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 12 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

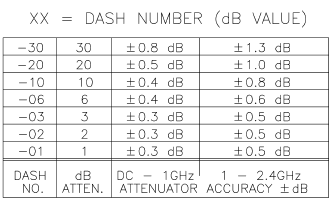

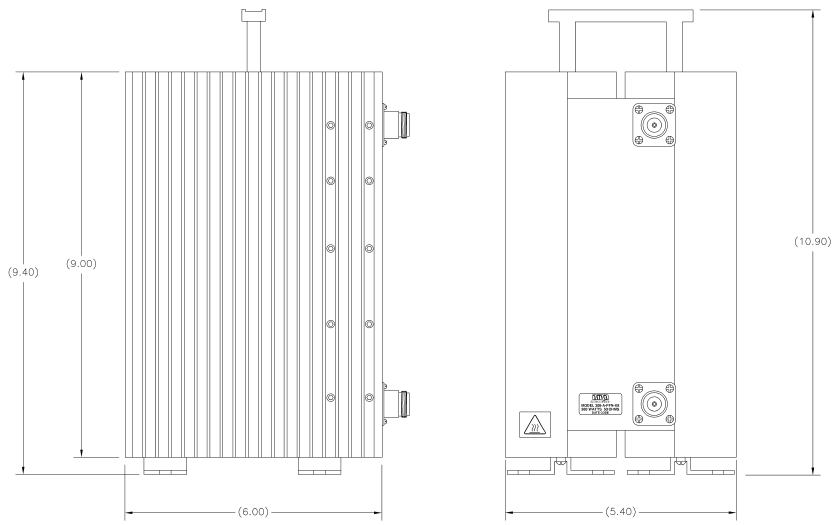

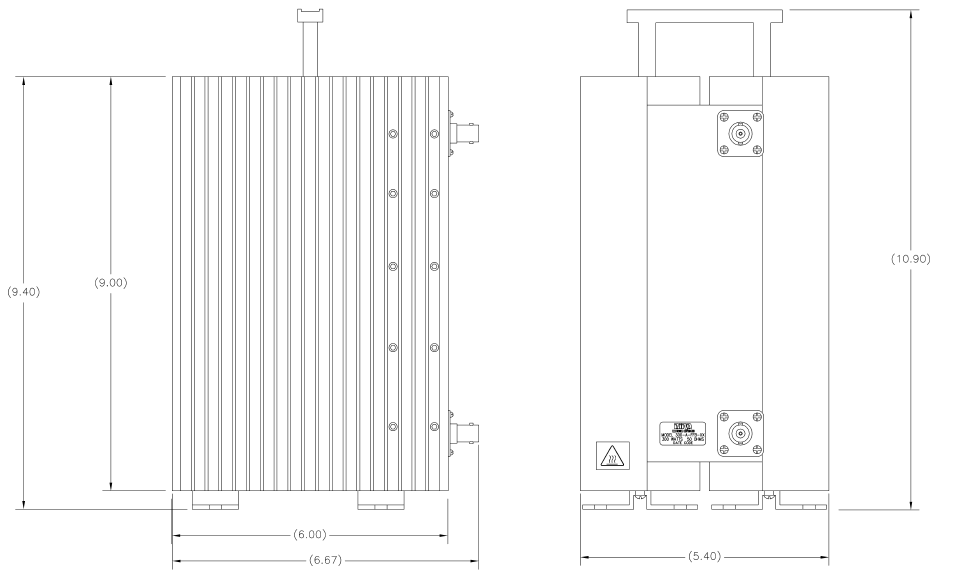

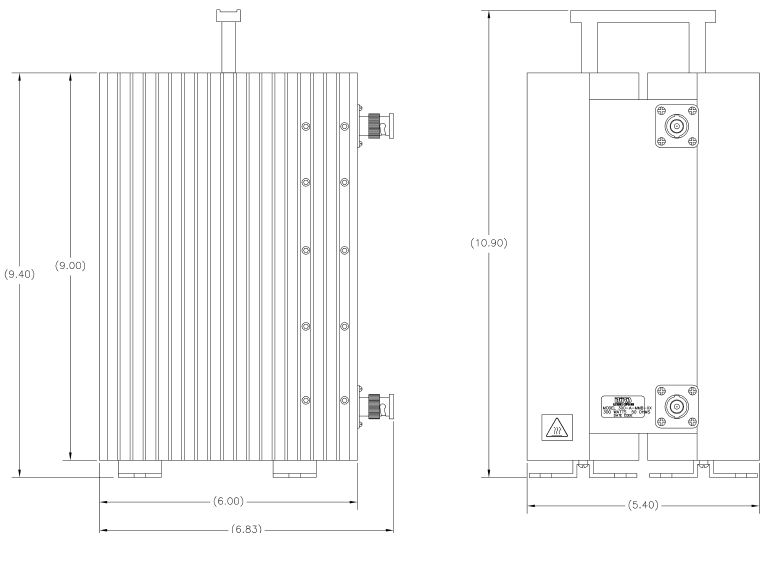

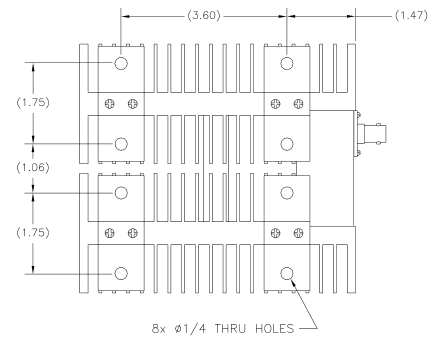

For the 300-A-FFB-XX:

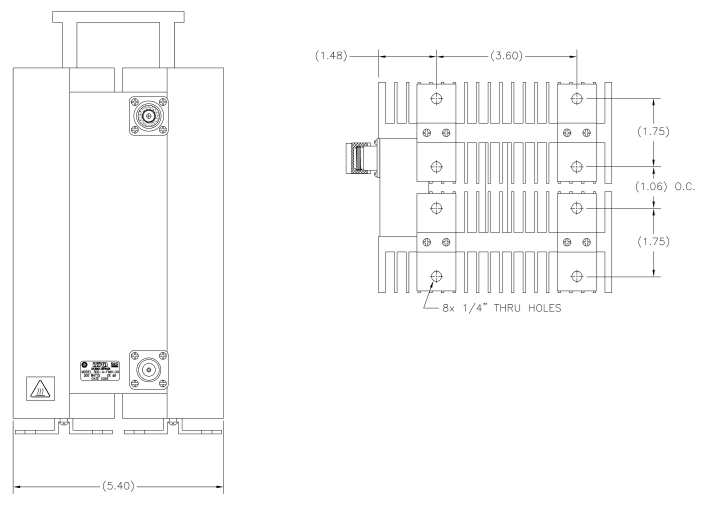

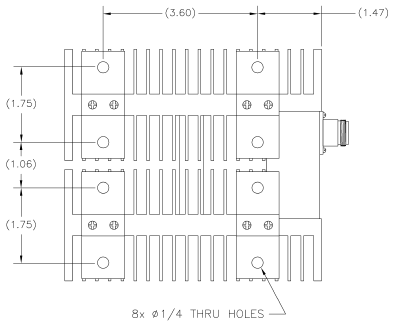

For the 300-A-FFN-XX:

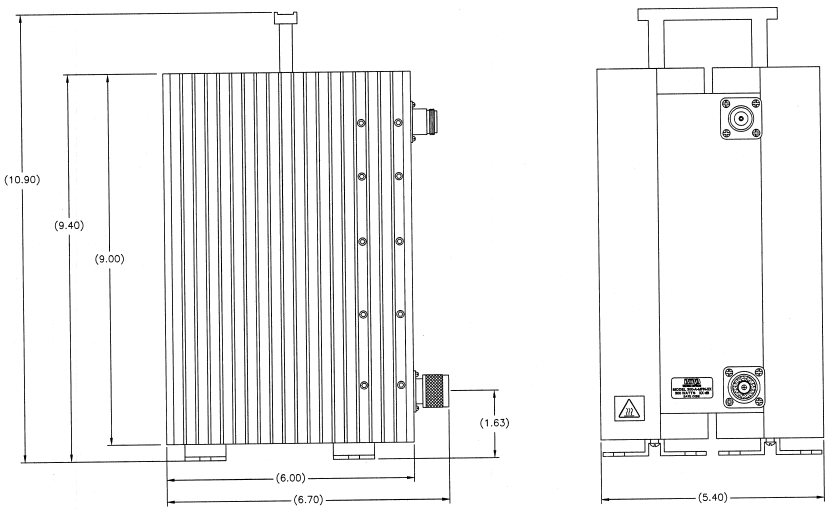

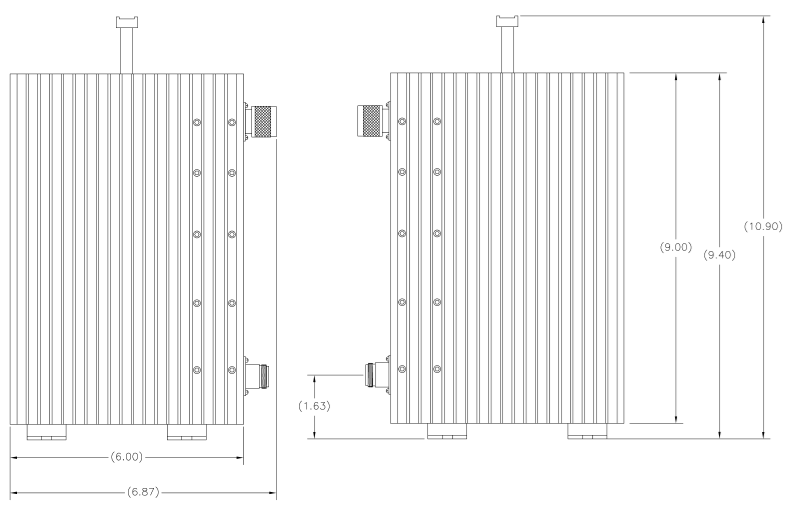

For the 300-A-FMN-XX:

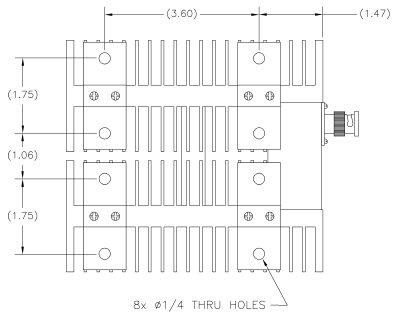

For the 300-A-MFB-XX:

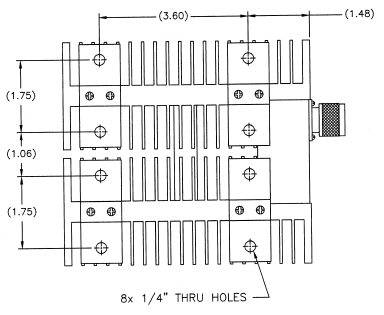

For the 300-A-MFN-XX:

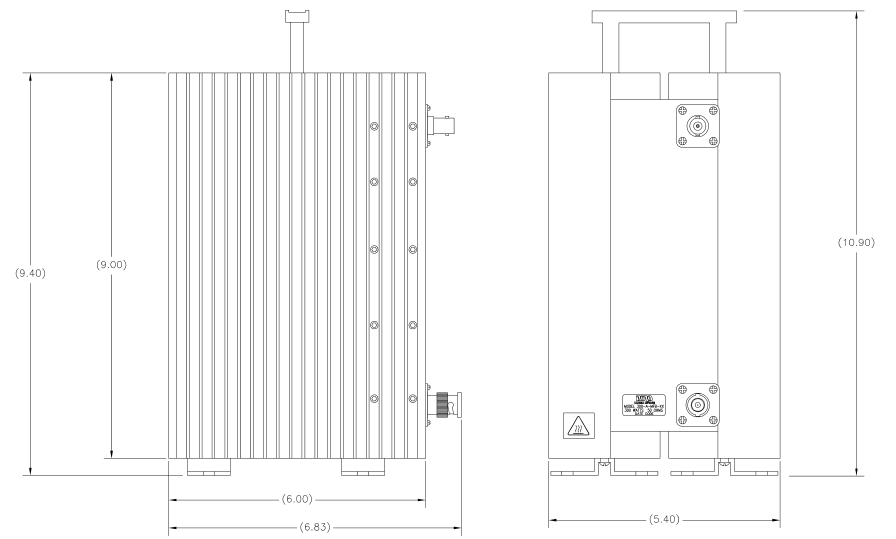

For the 300-A-MMB-XX:
