Specifications:
- Average Power Rating:
- 500 WATTS CW
- Frequency Range & VSWR
- Input: DC to 500 MHz @ 1.10:1 MAX.
- Output: DC to 500 MHz @ 1.15:1 MAX.
- Impedance: 50 Ohms (nominal)
- Attenuation: 30 dB ±0.5 dB
- Calibration Frequencies (to ±0.2 dB): 30, 100, 200, 300, 400, and 500 MHz
- Ambient Temperature Range: -40° C to +45° C
- Coolant: 0.9 gal (3.4 liters) Refined Mineral Oil
- Connector: Bird "QC", Female N normally supplied
- Operating Position: Horizontal only

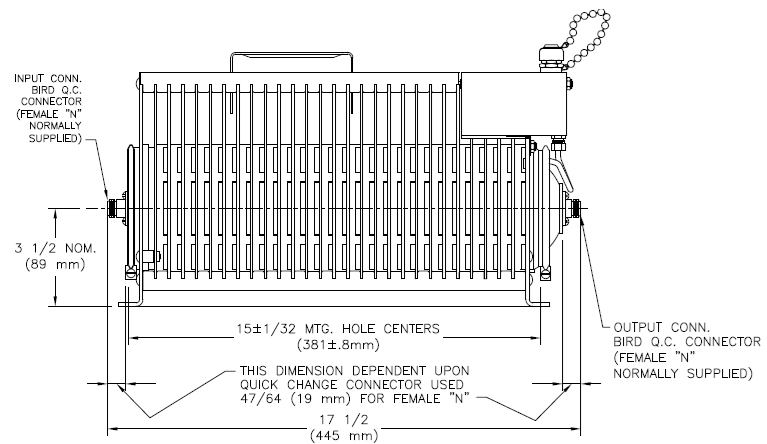

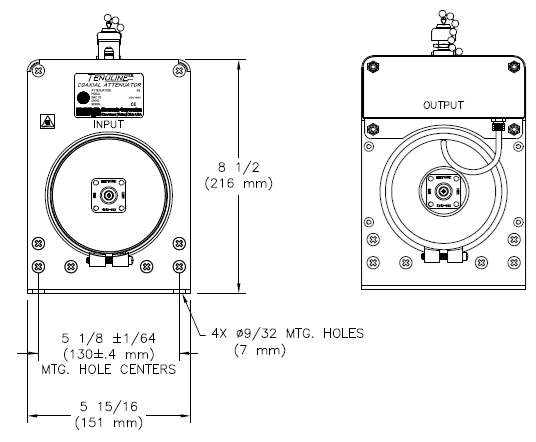

- Nominal Size: 17.5" x 5.9375" x 8.5" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 25 LBS
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
