Specifications:
- Power Rating: (uni-directional)
- 600 W AVG. @ 25° C
- Derated linearly to 50 W @ 125° C
- Frequency Range & VSWR
- DC to 1 GHz @ 1.10:1 MAX.
- 1 GHz to 2.4 GHz @ 1.25:1 MAX.
- Impedance: 50 Ohms (nominal)
- Ambient Temperature Range: -40° C to +40° C
- Operating Position: Vertically
- Nominal Size: 12.7" x 9.4" x 9.6" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 21.5 LBS
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

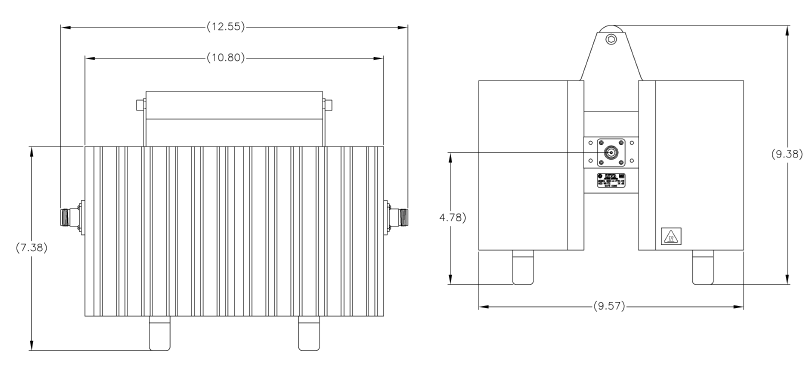

For the 600-A-FFN-XX:

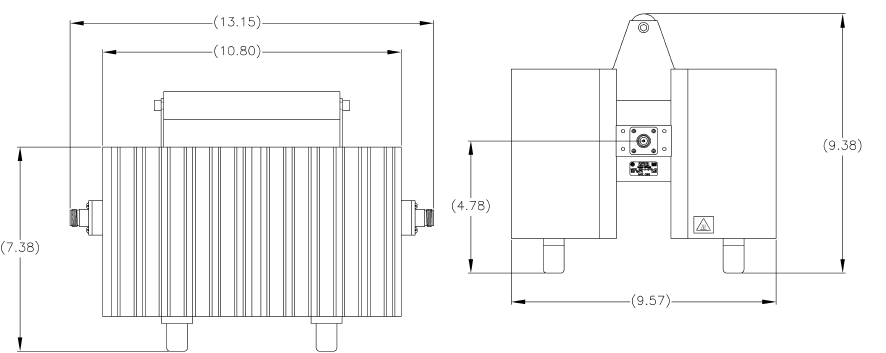

For the 600-A-MFN-XX:

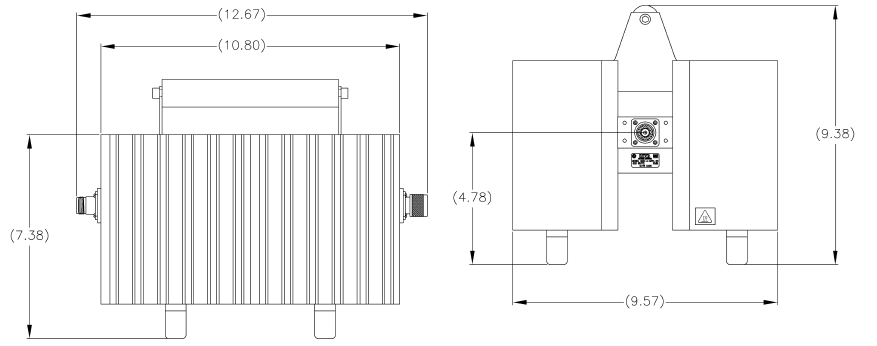

For the 600-A-QFFN-XX:
