1000-WA Series Attenuators Technical Information

Specifications:

• Average Power Rating: (uni-directional)
  • 1000 W AVG. @ 25° C Ambient
• Frequency Range & VSWR
  • DC to 1 GHz @ 1.10:1 MAX.
  • 1 GHz to 2.4 GHz @ 1.25:1 MAX.
• Impedance: 50 Ohms (nominal)
• Ambient Temperature Range: -40° C to +40° C
• Operating Position: Any except mounting surface up
• Nominal Size: 19.4" x 10.5" x 4.8" (for specifics, see images below or attached stp/step files)
• Weight: Approx. 26.5 LBS

***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.

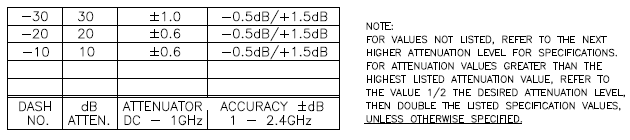

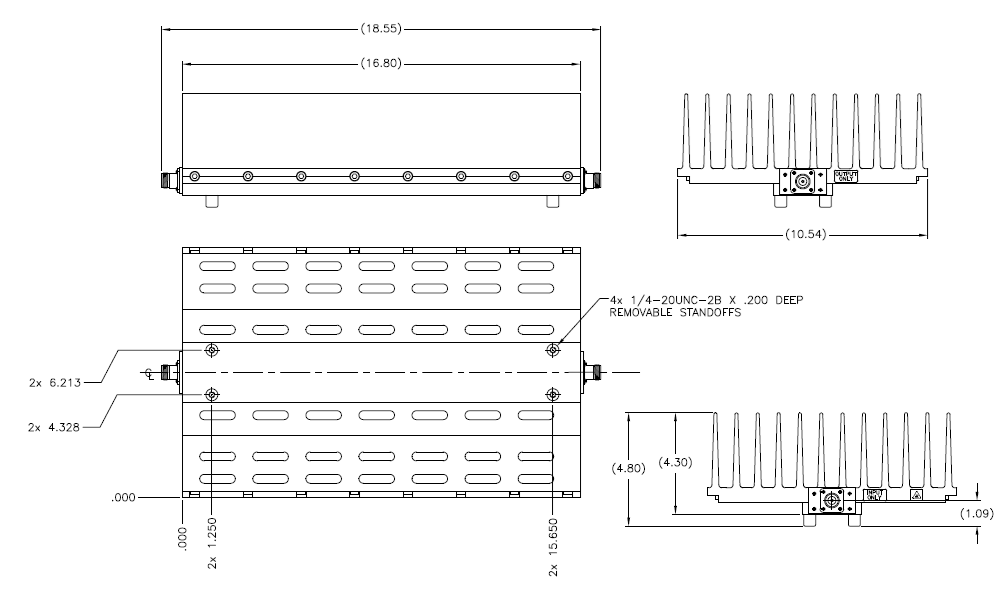

For the 1000-WA-FFE-XX:

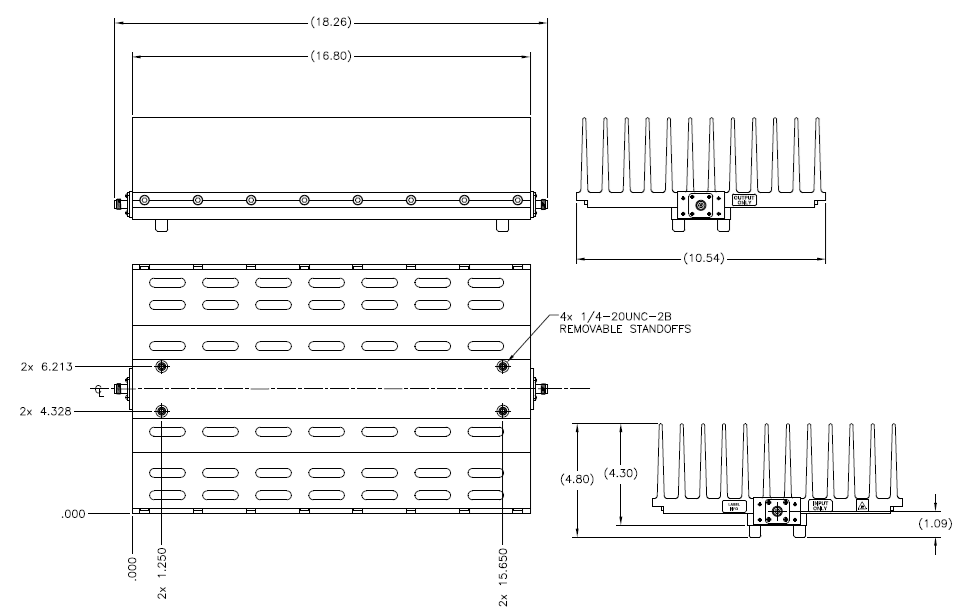

For the 1000-WA-FFEN-XX:

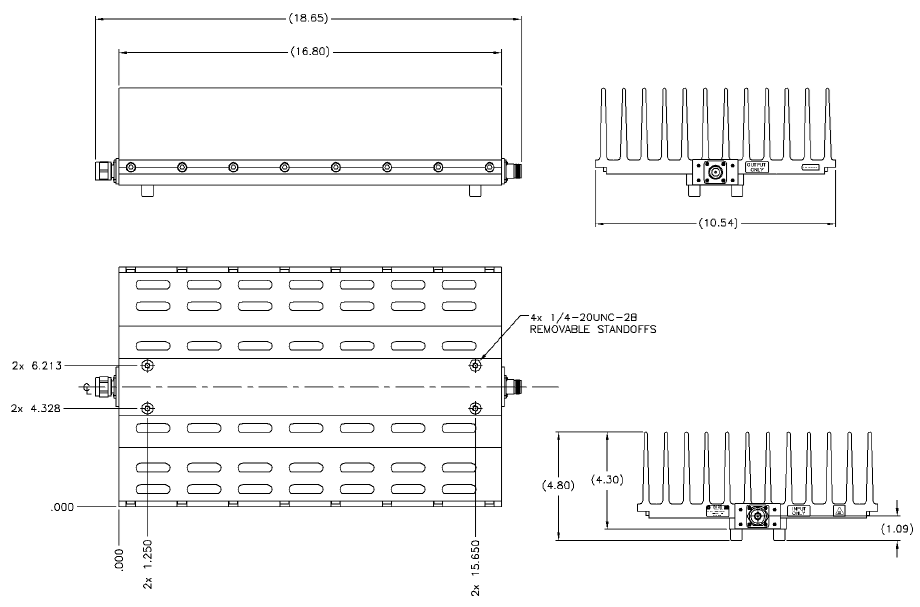

For the 1000-WA-FFN-XX:

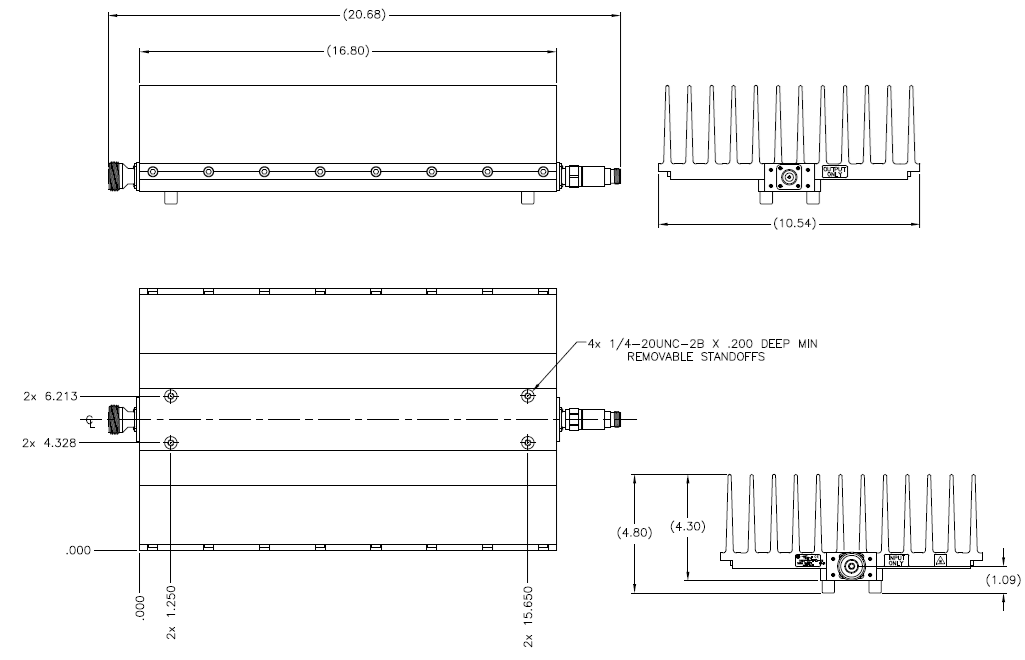

For the 1000-WA-FFT-XX:

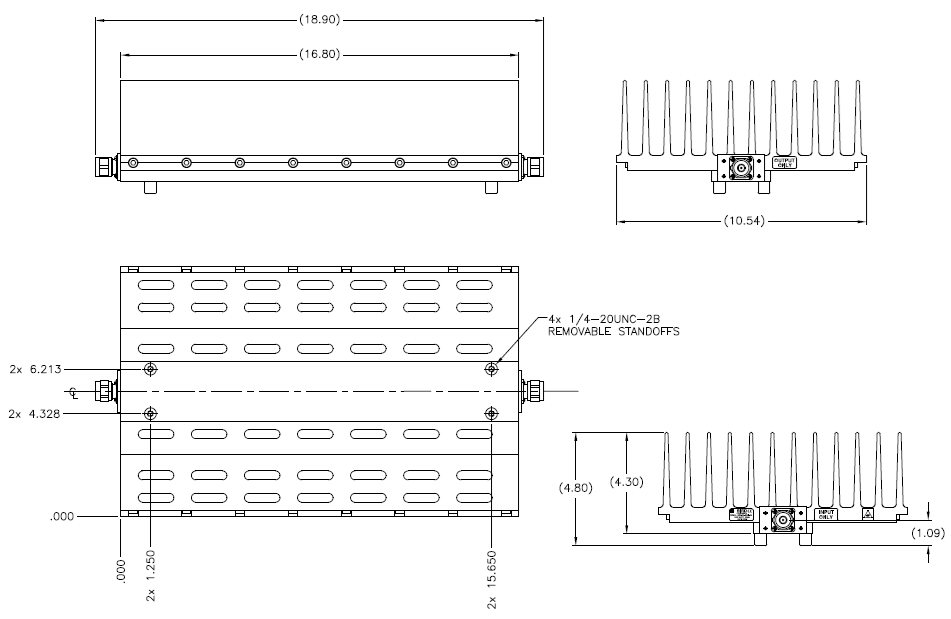

For the 1000-WA-MFN-XX:

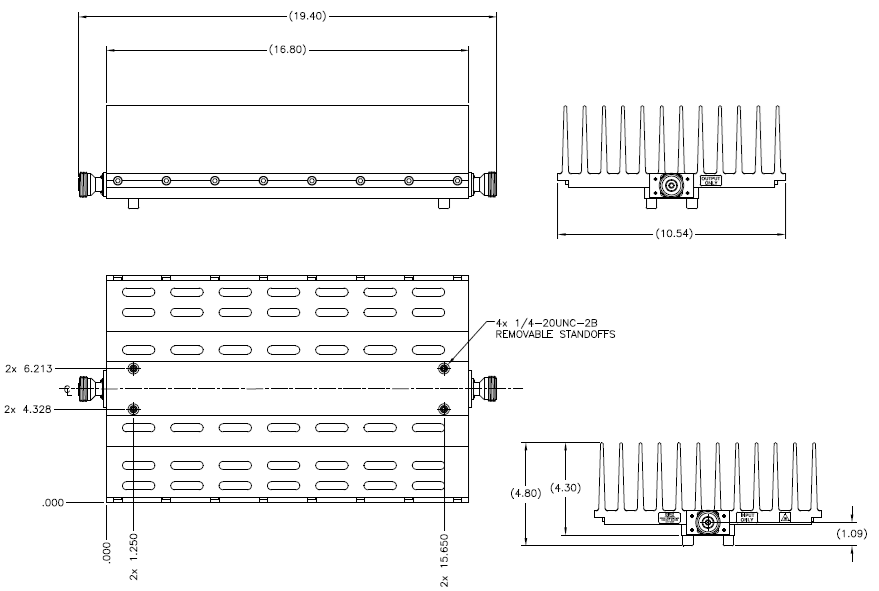

For the 1000-WA-MMN-XX:
