Specifications:
- Average Power Rating:
- 1000 W
- Frequency Range & VSWR
- Input: DC to 500 MHz @ 1.10:1 MAX.
- Output: DC to 500 MHz @ 1.15:1 MAX.
- Impedance: 50 Ohms (nominal)
- Attenuation: 30 dB ±0.5 dB
- Calibration Frequencies (to ±0.2 dB): 30, 100, 200, 300, 400, and 500 MHz
- Ambient Temperature Range: -40° C to +45° C
- Coolant: 2.9 gal (11 liters) Refined Mineral Oil
- Connector:
- Input: "QC" Type, Female LC
- Output: "QC" Type, Female N
- Operating Position: Horizontal only

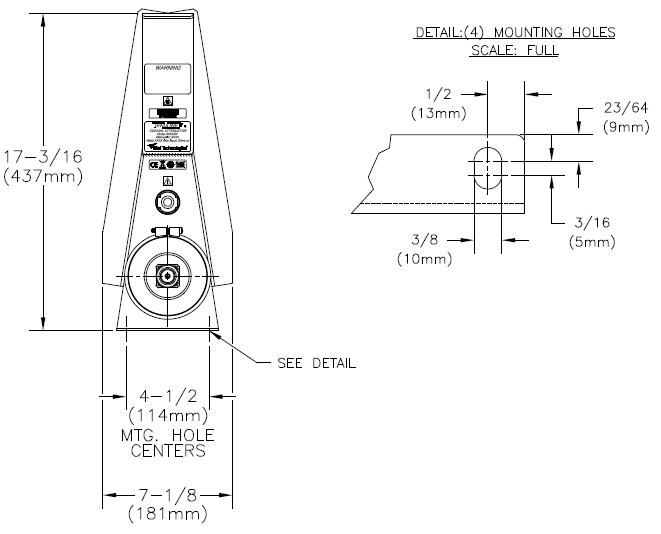

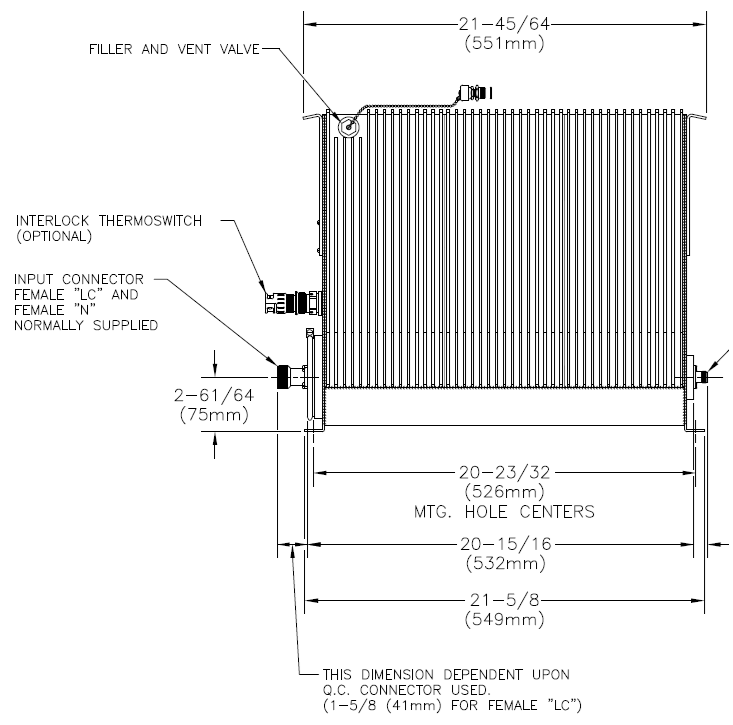

- Nominal Size: 23-15/32" x 7-1/8" x 17-3/16" (for specifics, see images below or attached stp/step files)
- Weight: Approx. 57.5 LBS
***STP or STEP files are attached - see download link below. If accessing this through chat, please visit the Bird Product FAQs.
