What Slugs or Elements can I use with my Bird 43 Wattmeter?

Follow

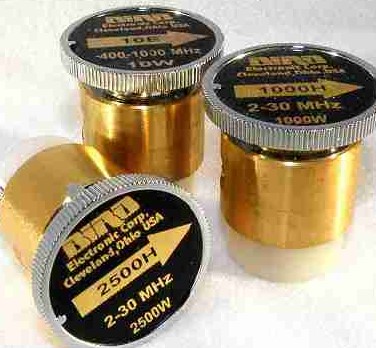

The Bird Model 43 wattmeter uses elements from the following tables:

Tables
Frequency
Power
Link to Element Selection
Table 1
 2 - 1000 MHz
 5 - 2,500 W
Standard Elements
Table 2  25 - 1000 MHz  1 - 2.5 W Low Power Elements
Table 3  950 - 1260 MHz  1 - 250 W High Frequency Elements
Table 4   0.45 - 2.5 MHz  1,000 - 10,000 W Low Frequency Elements
Table 6    72 - 1000 MHz  100 - 500 mW Milliwatt Elements
Table 14  50 - 1250 MHz  1,000 W Directional Coupler Elements
     -  25 - 1000 MHz  500 W Non-directional RF Sampler Elements
