PL259 UHF male Connector Drawing

Follow

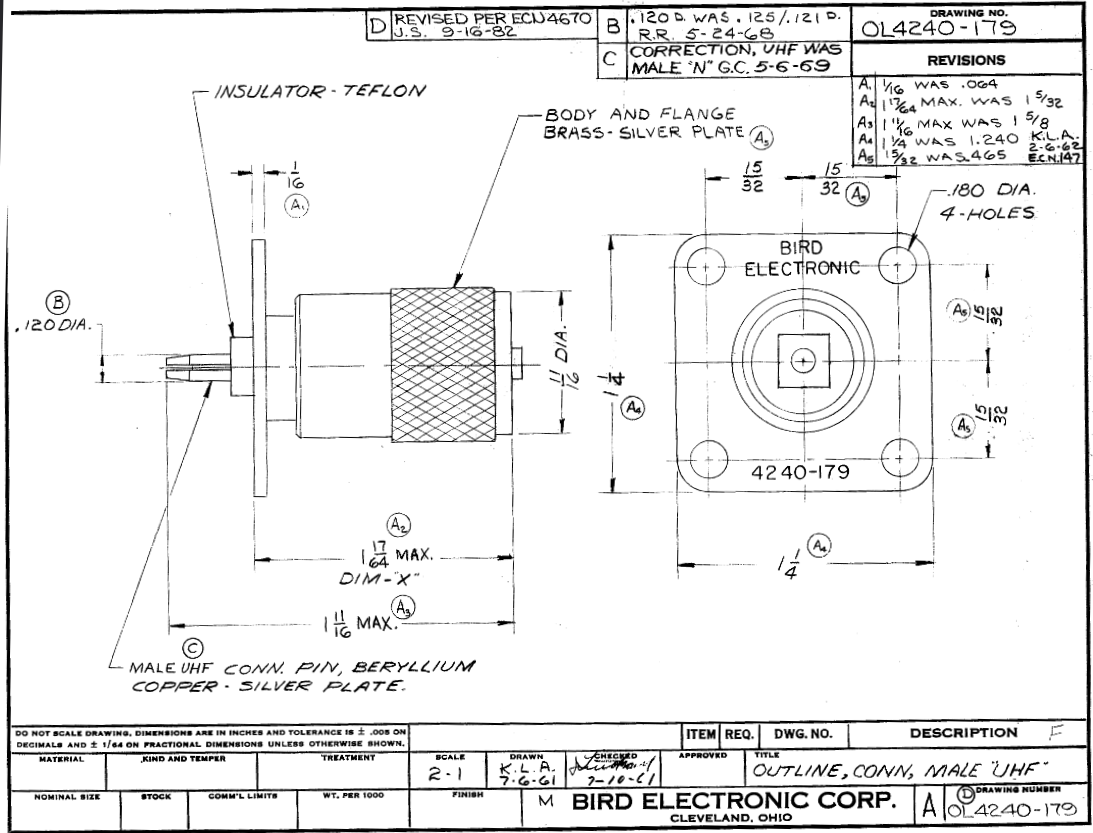

PL259 UHF male connector to QC connector has a Bird model number of 4240-179. The outline drawing is shown below:
