How do I Repair a Model 43?

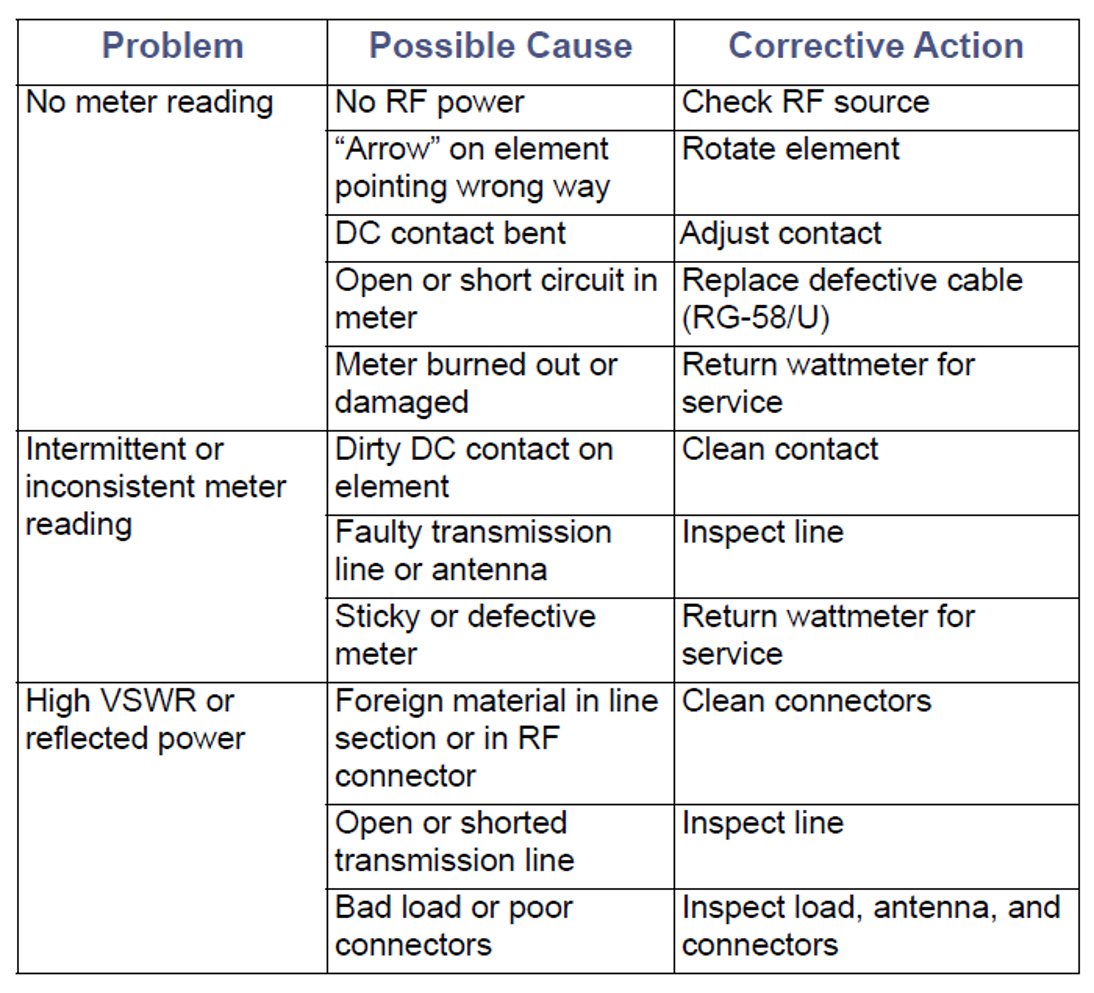

The following table contains troubleshooting information for problems that can occur during normal operation of a Model 43 family of wattmeters.

If you need your wattmeter serviced or calibrated, the Bird Service Center can help. Request RMA

Bird offers repair kits as well. Click here for more information: Model 43 Series Repair Kits


For additional maintenance information, please see the wattmeter manual which can be found at: Portable Wattmeters

Please leave us a comment on this article. Did it help you? What else should we include to make this article better? Thanks in advance from the Bird Applications Team!
